TTA749AKC604N0 - Exmark 60" Turf Tracer Autonomous Walk-Behind Mower (SN: 417930746 & Above) (Rev B) (2025) Console Electrical Assembly Parts Diagram

60" Turf Tracer Autonomous Walk-Behind Mower

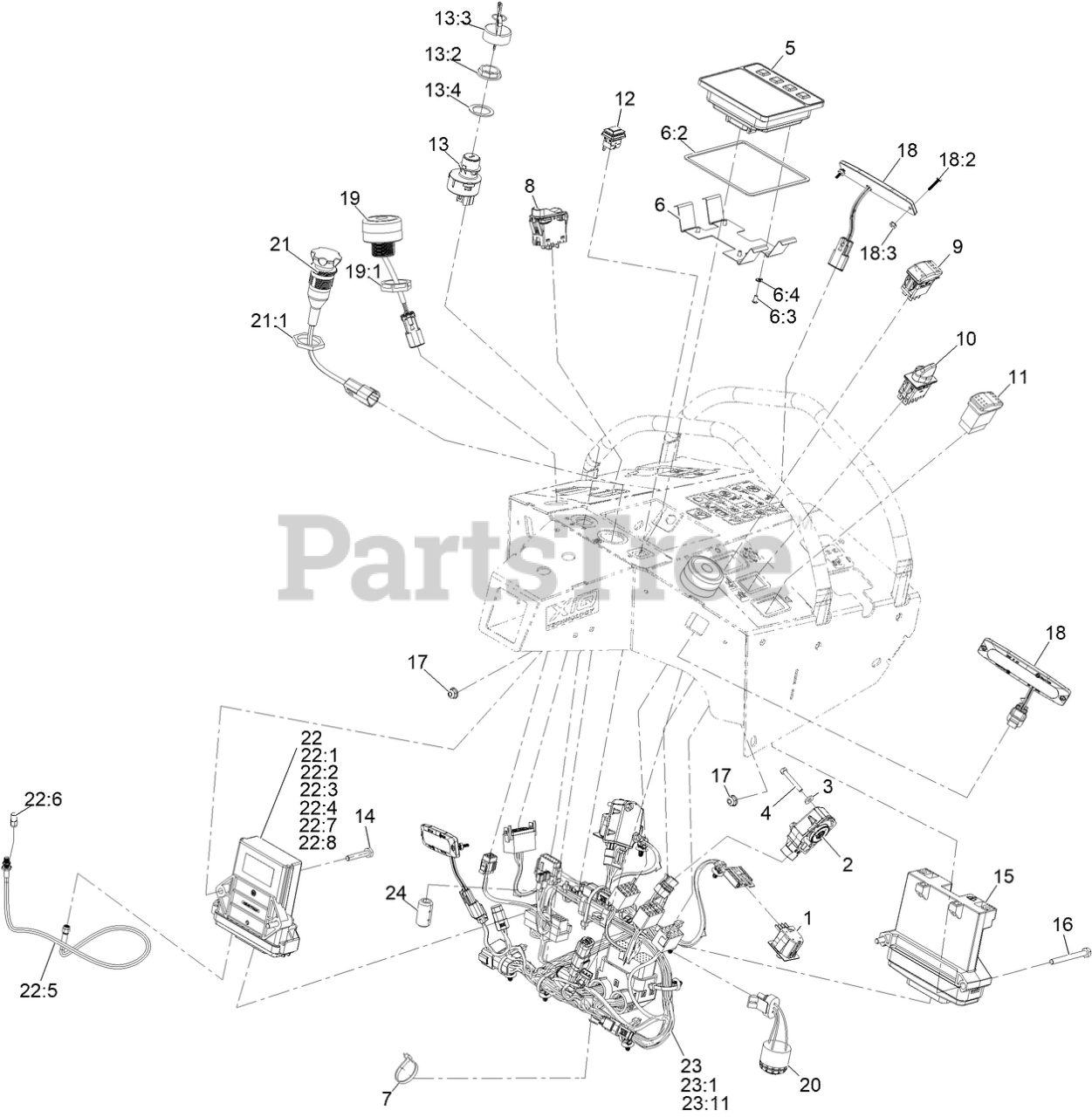

Console Electrical Assembly Parts Diagram

  • Title

1

Exmark 145-3520

SWITCH-PLUNGER, ON-(ON)

$26.99

$

Usually ships in 3-6 days

0

2

Exmark 122-0917

SENSOR-POSITION

$227.99

$

Usually ships in 3-6 days

0

3

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Exmark 32105-1

SCREW-SHH

$3.99

$

In Stock, Qty 5

0

5

Exmark 146-0079

Display-4.3In, Color

$1760.99

$

Usually ships in 3-6 days

0

6

Exmark 146-0720

MOUNT-DISPLAY

$95.99

$

Usually ships in 3-6 days

0

6:2

Exmark 146-5743

Seal-Panel

$

$

Currently unavailable

6:3

Exmark 119-1057

Screw-BHCS

$

$

Currently unavailable

6:4

Exmark 363-6505

Washer,Lock,EXT T,.172X.373X.02,Sst,Rohs

$

$

Currently unavailable

7

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

8

Exmark 139-6368

SWITCH-ROCKER, ON-NONE-ON

$37.99

$

In Stock, Qty 12

0

9

Exmark 100-1535

SWITCH

$99.99

$

In Stock, only 3 left!

0

10

Exmark 146-4846

SWITCH-ROTARY 2 POS

$112.99

$

Usually ships in 3-6 days

0

11

Exmark 106-2027

Switch-Intermittent

$83.99

$

Usually ships in 3-6 days

0

12

Exmark 146-4484

SWITCH - PUSHBUTTON, OFF-(ON)

$30.99

$

Usually ships in 3-6 days

0

13

Exmark 126-6285

IGNITION SWITCH ASM

$59.99

$

In Stock, Qty 20+

0

13:2

Exmark 108-8660

NUT-MOUNTING

$38.99

$

Usually ships in 3-6 days

0

13:3

Exmark 106-5270

IGNITION KEY SET

$25.99

$

In Stock, only 2 left!

0

13:4

Exmark 108-8659

WASHER-BACKUP

$16.99

$

Usually ships in 3-6 days

0

14

Exmark 321-9

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

15

Exmark 142-9022

Controller-Safety

$2088.99

$

Usually ships in 3-6 days

0

16

Exmark 321-15

SCREW-HH

$1.49

$

In Stock, Qty 14

0

17

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Exmark 135-5166

LIGHT STROBE

$317.99

$

Usually ships in 3-6 days

0

18:2

Exmark 363-8269

Scr, Mch, 6-32 X 3/4, Phfh, Stl, Rohs

$0.99

$

Usually ships in 3-6 days

0

18:3

Exmark 32149-6

Nut, Hex

$0.99

$

Usually ships in 3-6 days

0

19

Exmark 146-2772

LIGHT-INDICATOR

$690.99

$

Usually ships in 3-6 days

0

19:1

Exmark 133-9078

Nut-Hex

$

$

Currently unavailable

20

Exmark 126-6286

ALARM-DUAL TONE

$67.99

$

In Stock, only 1 left!

0

21

Exmark 146-2912

BUTTON-E-STOP

$484.99

$

Usually ships in 3-6 days

0

21:1

Exmark 146-5741

Nut-E-Stop Hex M12

$21.99

$

Usually ships in 3-6 days

0

22

Remote Stop Kit

Note: Not serviced separately

$

$

Not available

22:1

Exmark 146-1259

Remote-Handheld

$

$

Currently unavailable

22:2

Exmark 146-1258

Receiver

$

$

Currently unavailable

22:3

Exmark 146-1257

Cradle-Charging

$

$

Currently unavailable

22:4

Exmark 146-1256

Clip-Belt

$

$

Currently unavailable

22:5

Exmark 146-3617

Cable-Antenna

$

$

Currently unavailable

22:6

Exmark 146-3539

Antenna-Stubby

$

$

Currently unavailable

22:7

Exmark 146-4152

Cable-USB-C Kit

$

$

Currently unavailable

22:8

Exmark 146-4153

Short-Lanyard

$

$

Currently unavailable

23

Exmark 146-2907

HARNESS-CONSOLE

$920.99

$

Usually ships in 3-6 days

0

23:1

Exmark 32180-400

CLIP-TIE, FIR TREE W/TIE, 5MM/.196"" HOLE

$5.99

$

Usually ships in 3-6 days

0

23:11

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

24

Exmark 112-1540

FERRITE-SNAP ON

$26.99

$

Usually ships in 3-6 days

0
