TTA749AKC604N0 - Exmark 60" Turf Tracer Autonomous Walk-Behind Mower (SN: 417930746 & Above) (Rev B) (2025) Ground Drive Assembly Parts Diagram

60" Turf Tracer Autonomous Walk-Behind Mower

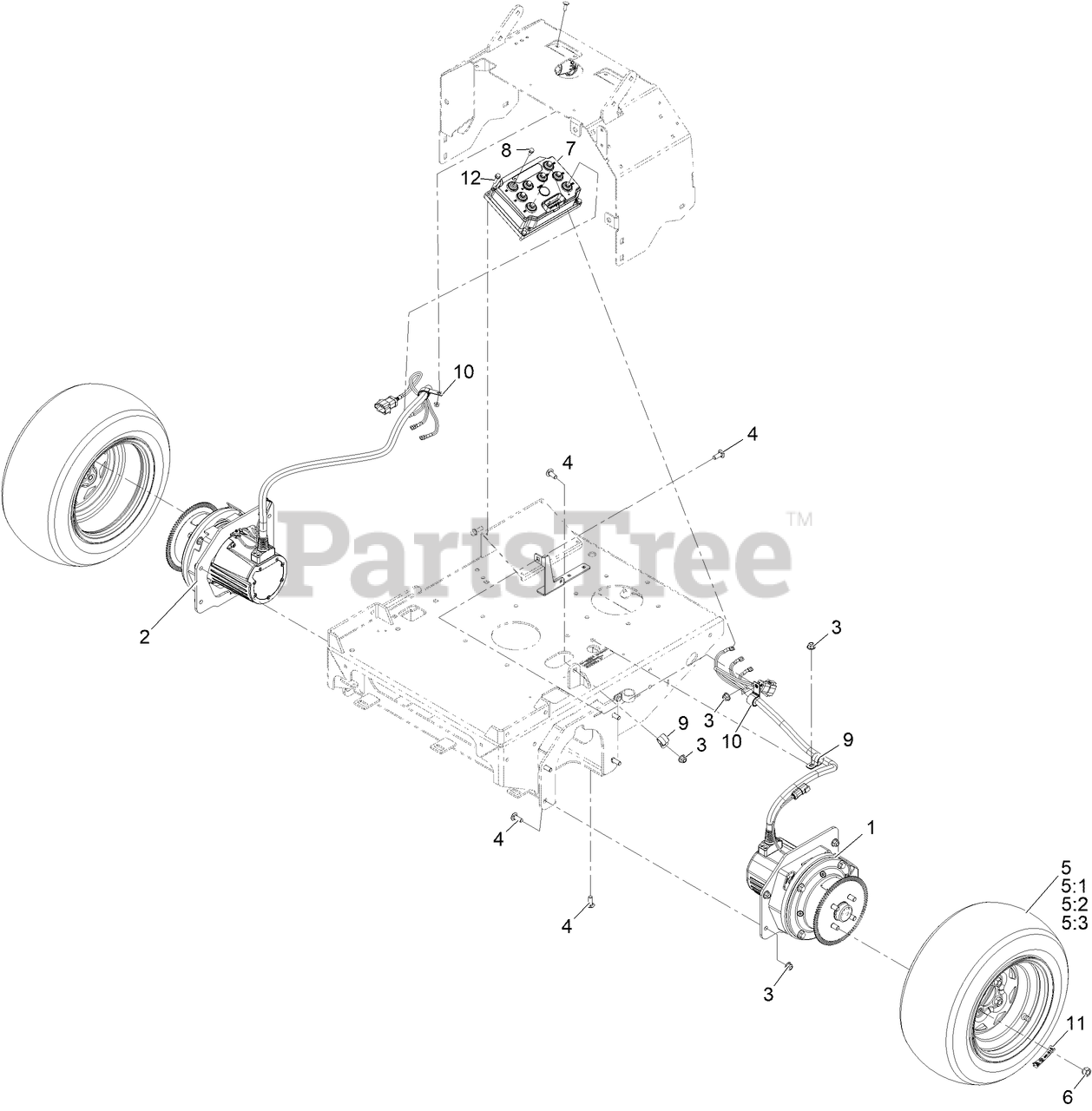

Ground Drive Assembly Parts Diagram

  • Title

1

LH Motor Sub ASM

Note: Not serviced separately

$

$

Not available

2

RH Motor Sub ASM

Note: Not serviced separately

$

$

Not available

3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

5

Exmark 146-5190

TIRE ASM

$251.99

$

Usually ships in 3-6 days

0

5:1

Exmark 146-5159

Rim-10 In

$136.99

$

Usually ships in 3-6 days

0

5:2

Exmark 146-5347

TIRE, 18X 8.50-10

$161.99

$

Usually ships in 3-6 days

0

5:3

Exmark 232-27

Stem-Valve

$

$

Not available

6

Exmark 242-35

NUT-WHEEL

$10.99

$

Usually ships in 3-6 days

0

7

Exmark 138-8984

INV/CTRLR-48V,DUAL 94ARMS

$2534.99

$

Usually ships in 3-6 days

0

8

Exmark 145-5782

SCREW-SEMS

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 2412-4

CLAMP-R

$5.99

$

Usually ships in 3-6 days

0

10

Exmark 120-5018

CLIP-OPEN J, COATED

$4.49

$

Usually ships in 3-6 days

0

11

Exmark 146-3270

DECAL-TORQUE,WHEEL LUG

$9.49

$

Usually ships in 3-6 days

0

12

Exmark 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0
