TTS600GKA483E0 - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 402082300 - 404314158) (2018) Electrical Assembly Parts Diagram

48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

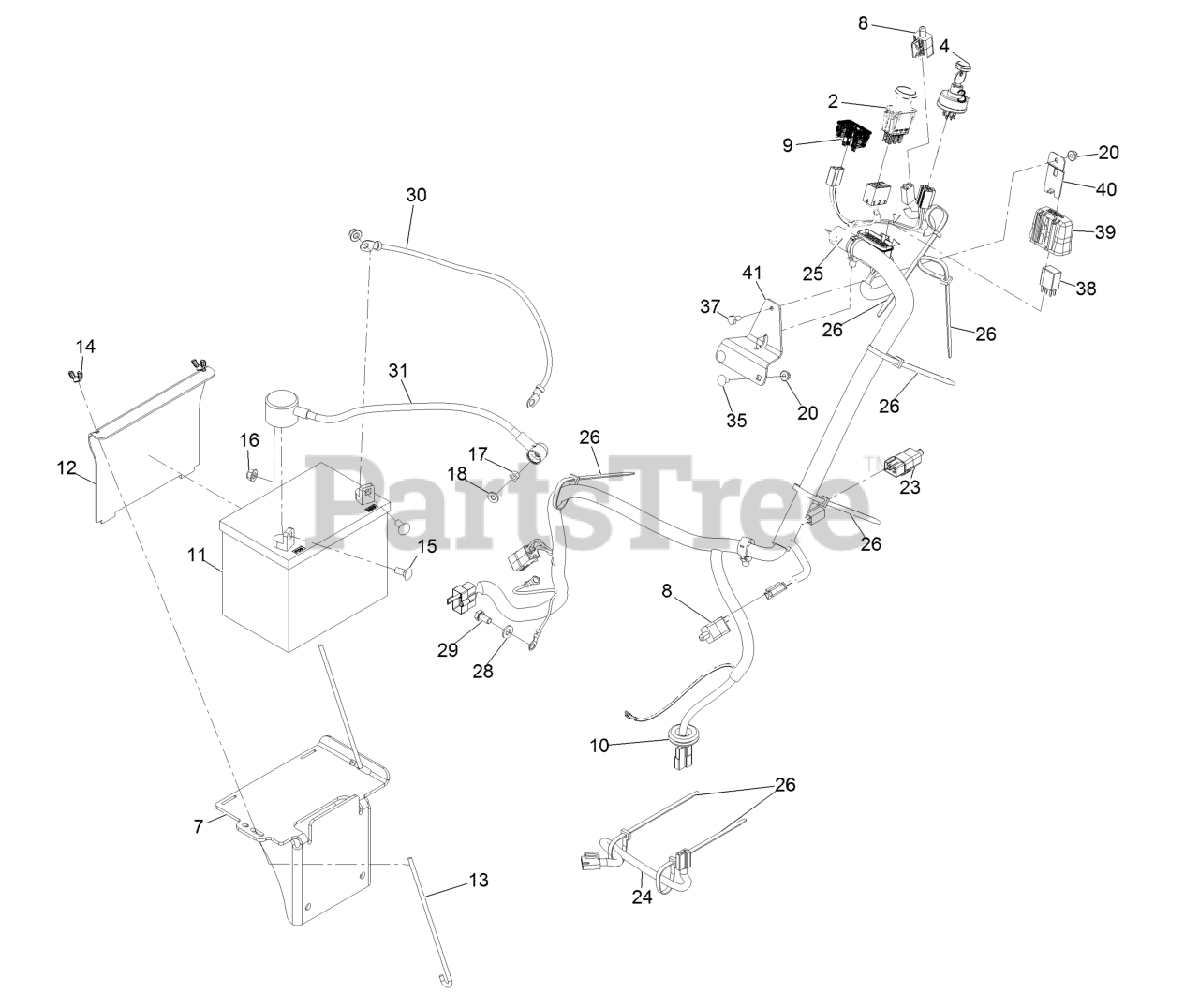

Electrical Assembly Parts Diagram

  • Title

2

Exmark 103-5221

Switch-PTO

$63.99

$

In Stock, only 4 left!

0

3

Exmark 135-2253

Switch, Key Start

$38.99

$

In Stock, only 2 left!

0

4

Exmark 103-0498

Nut-Ignition

$3.99

$

In Stock, Qty 10

0

7

Exmark 126-1470-03

Weld, Battery Mount

$100.99

$

Usually ships in 3-6 days

0

8

Exmark 110-6765

Switch

$14.99

$

In Stock, Qty 20+

0

9

Exmark 126-3931

Hour Meter

$81.99

$

Usually ships in 3-6 days

0

10

Exmark 1-543286

Grommet

$13.99

$

Usually ships in 3-6 days

0

11

Battery (300 CCA, Wet)

$

$

Not available

12

Exmark 126-0069-03

Bracket, Battery Hold Down

$41.99

$

Usually ships in 3-6 days

0

13

Exmark 1-633651

Bolt-Holddown

$8.99

$

In Stock, Qty 20+

0

14

Exmark 1-543792

Wingnut-Nyloc 1/4-20

$6.99

$

In Stock, Qty 20+

0

15

Exmark 3230-1

Bolt-Carriage 5/16-18 X 3/4

$1.99

$

In Stock, Qty 20+

0

16

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

17

Exmark 3217-5

Nut-Hex 1/4-20

$0.99

$

In Stock, Qty 9

0

18

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

0

20

Exmark 104-7201

Nut-HF

$1.49

$

In Stock, Qty 20+

0

23

Exmark 126-1904

Switch, 2 Pole

$12.99

$

In Stock, Qty 8

0

24

Exmark 126-0624

Harness-Clutch Pigtail

$16.99

$

In Stock, only 1 left!

0

25

Exmark 126-6172

Harness-Wiring

$291.99

$

In Stock, only 1 left!

0

26

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

28

Exmark 33094-00

Washer

$0.99

$

Usually ships in 3-6 days

0

29

Exmark 33114-016

Screw-HH M8-1.25 X 16Mm

$0.99

$

In Stock, Qty 20+

0

30

Exmark 1-413540

Cable-Battery, Negative

$14.99

$

Usually ships in 3-6 days

0

31

Exmark 109-7628

Cable, Battery +

$33.99

$

In Stock, only 1 left!

0

35

Exmark 3229-10

Screw-CARR

$1.49

$

In Stock, Qty 7

0

37

Exmark 321-2

Screw-HH

$3.99

$

In Stock, only 3 left!

0

38

Exmark 126-6157

Relay-Micro 280, Spdt

$30.99

$

Usually ships in 3-6 days

0

39

Exmark 32180-176

Cover-Block, Fuse

$8.99

$

Usually ships in 3-6 days

0

40

Exmark 32180-177

Clip-Mounting

$5.49

$

In Stock, only 1 left!

0

41

Exmark 126-6603-03

Bracket-Mounting,Fuseblock

$19.99

$

Usually ships in 3-6 days

0
