TTS600PKAE483 - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 312000000 - 312999999) (2012) Fuel Assembly Parts Diagram

48" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

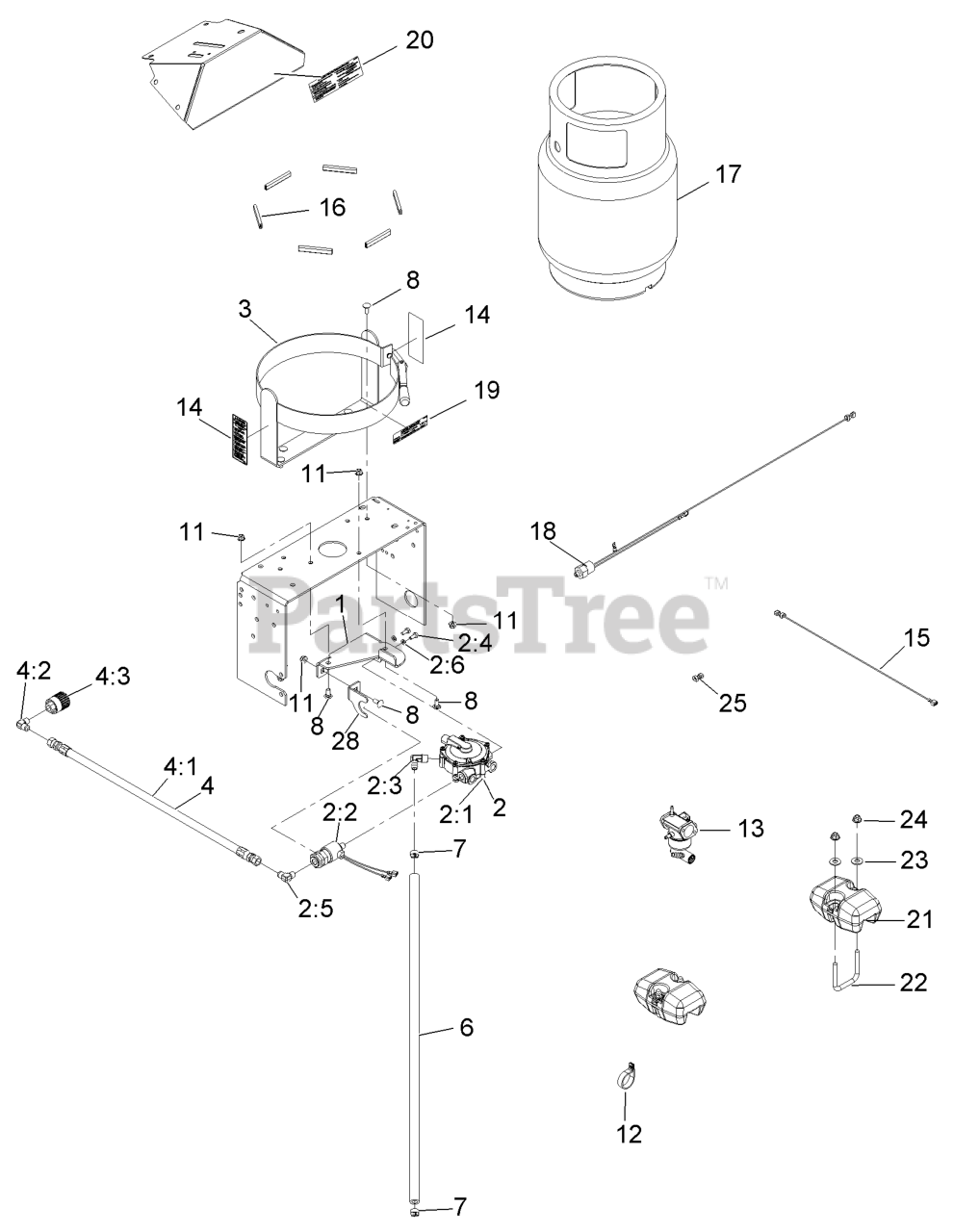

Fuel Assembly Parts Diagram

  • Title

1

Exmark 116-3749-03

REGULATOR MOUNT-THP

$

$

Not available

2

Asm, Reg And Shutoff

Note: Not serviced separately

$

$

Not available

2:1

Exmark 116-2567

Regulator-Lp, T60

$

$

Not available

2:2

Exmark 116-1288

ASM, LPG FUEL SHUTOFF W/T

$

$

Not available

2:3

Exmark 116-1127

ELBOW-90 DEG

$111.99

$

Usually ships in 3-6 days

0

2:4

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2:5

Exmark 116-1116

ELBOW 90DEG,1/4 NPT X3/8

$

$

Not available

2:6

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

3

Exmark 116-1099

126-0365
(Superseded to 126-0365)

$

$

Not available

4

Asm, Lpg Fuel Hose

Note: Not serviced separately

$

$

Not available

4:1

Exmark 116-1087

116-1300
(Superseded to 116-1300)

$

$

Not available

4:2

Exmark 116-1116

ELBOW 90DEG,1/4 NPT X3/8

$

$

Not available

4:3

Exmark 116-1073

CONNECTOR-LPG TANK, LH TH

$183.99

$

Usually ships in 3-6 days

0

6

Exmark 116-4115

HOSE,LP 1/2 X 33

$

$

Not available

7

Exmark 97-1271

CLAMP-HOSE

$4.49

$

Usually ships in 3-6 days

0

8

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

11

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 103-0113

CLIP-LOOM

$

$

Not available

13

Exmark 116-3540

MIXER ASM, KA FS600V

$

$

Not available

14

Exmark 109-9875

DECAL-LPG WARNING

$

$

Not available

15

Exmark 116-1291

ASM, WIRE 20"

$

$

Not available

16

Exmark 105-7699

STRIP-SEAL

$12.99

$

In Stock, Qty 20+

0

17

Exmark 109-9675

126-4505
(Superseded to 126-4505)

$

$

Not available

18

Exmark 116-2842

126-1778
(Superseded to 126-1778)

$424.99

$

Usually ships in 3-6 days

0

19

Exmark 109-9870

DECAL,LPG TANK SPEC VERTI

$

$

Not available

20

Exmark 109-9906

DECAL-TANK REPLACEMENT

$19.99

$

In Stock, only 2 left!

0

21

Exmark 103-2455-01

WEIGHT-SUPPORT, CASTER

$142.99

$

Usually ships in 3-6 days

0

22

Exmark 103-2469

U-BOLT

$12.99

$

Usually ships in 3-6 days

0

23

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

24

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Exmark 32170-061

RECEPTICAL -FEM, .250, IN

$

$

Not available

26

Exmark 116-1457

WASHER,RUBBER LPG CONNECT

Note: Not illustrated

$

$

Not available

27

Exmark 116-1456

O-RING, LPG CONNECTOR (SV

Note: Not illustrated

$

$

Not available

28

Exmark 116-3750-03

SOLENOID SUPPORT

$

$

Not available
