TTX650EKC52400 - Exmark 52" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 316000000 - 399999999) (2016) Electrical Assembly Parts Diagram

52" Turf Tracer X-Series Walk-Behind Mower, Kohler

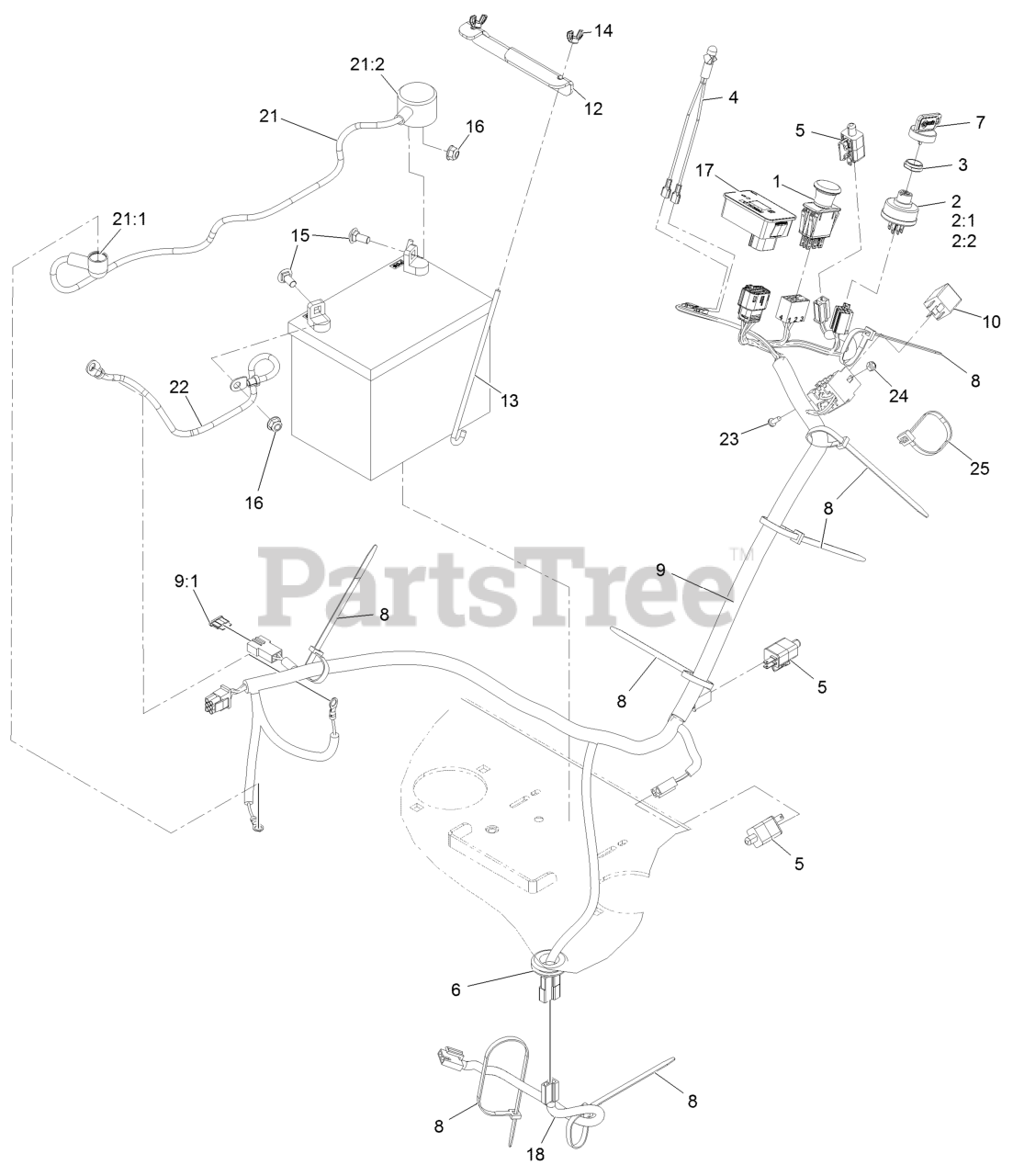

Electrical Assembly Parts Diagram

  • Title

1

Exmark 103-5221

SWITCH-PTO

$63.99

$

In Stock, only 4 left!

0

2

Exmark 103-0206

109-4736
(Superseded to 109-4736)

$45.99

$

In Stock, Qty 15

0

2:1

Exmark 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

2:2

Exmark 218-461

NUT-HH

$4.49

$

Usually ships in 3-6 days

0

3

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.99

$

In Stock, Qty 10

0

4

Exmark 1-643267

INDICATOR-LED, RED

$27.99

$

In Stock, only 2 left!

0

5

Exmark 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

6

Exmark 1-543286

GROMMET

$13.99

$

Usually ships in 3-6 days

0

7

Exmark 103-2106

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

8

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

9

Exmark 126-3011

HARNESS-MAIN TTX KOHLER E

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$281.99

$

Usually ships in 3-6 days

0

9:1

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.99

$

In Stock, only 2 left!

0

10

Exmark 1-643275

RELAY

$26.99

$

In Stock, Qty 18

0

12

Exmark 126-0008

135-2056
(Superseded to 135-2056)

$29.99

$

In Stock, only 1 left!

0

13

Exmark 1-633651

BOLT-HOLDDOWN

$8.99

$

In Stock, Qty 20+

0

14

Exmark 1-543792

WINGNUT

$6.99

$

In Stock, Qty 20+

0

15

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 116-8893

MODULE-HOUR METER

$172.99

$

Usually ships in 3-6 days

0

18

Exmark 126-0624

HARNESS-CLUTCH PIGTAIL

$16.99

$

Usually ships in 3-6 days

0

21

Exmark 109-7621

POSITIVE BATTERY CABLE AS

$41.99

$

In Stock, only 2 left!

0

21:1

Exmark 1-543393

INSULATOR-SOLENOID

$5.99

$

Usually ships in 3-6 days

0

21:2

Exmark 109-2407

INSULATOR-BATTERY

$5.99

$

In Stock, only 1 left!

0

22

Exmark 1-413540

CABLE-BATTERY, NEGATIVE

Note: Not illustrated

$14.99

$

Usually ships in 3-6 days

0

23

Exmark 1-803071

SCREW

$1.49

$

In Stock, Qty 9

0

24

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Exmark 1-643115

TIE-PLASTIC

$2.99

$

Usually ships in 3-6 days

0
