TTX680PKC52400 - Exmark 52" Turf Tracer X-Series Walk-Behind Mower, Kohler (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

52" Turf Tracer X-Series Walk-Behind Mower, Kohler

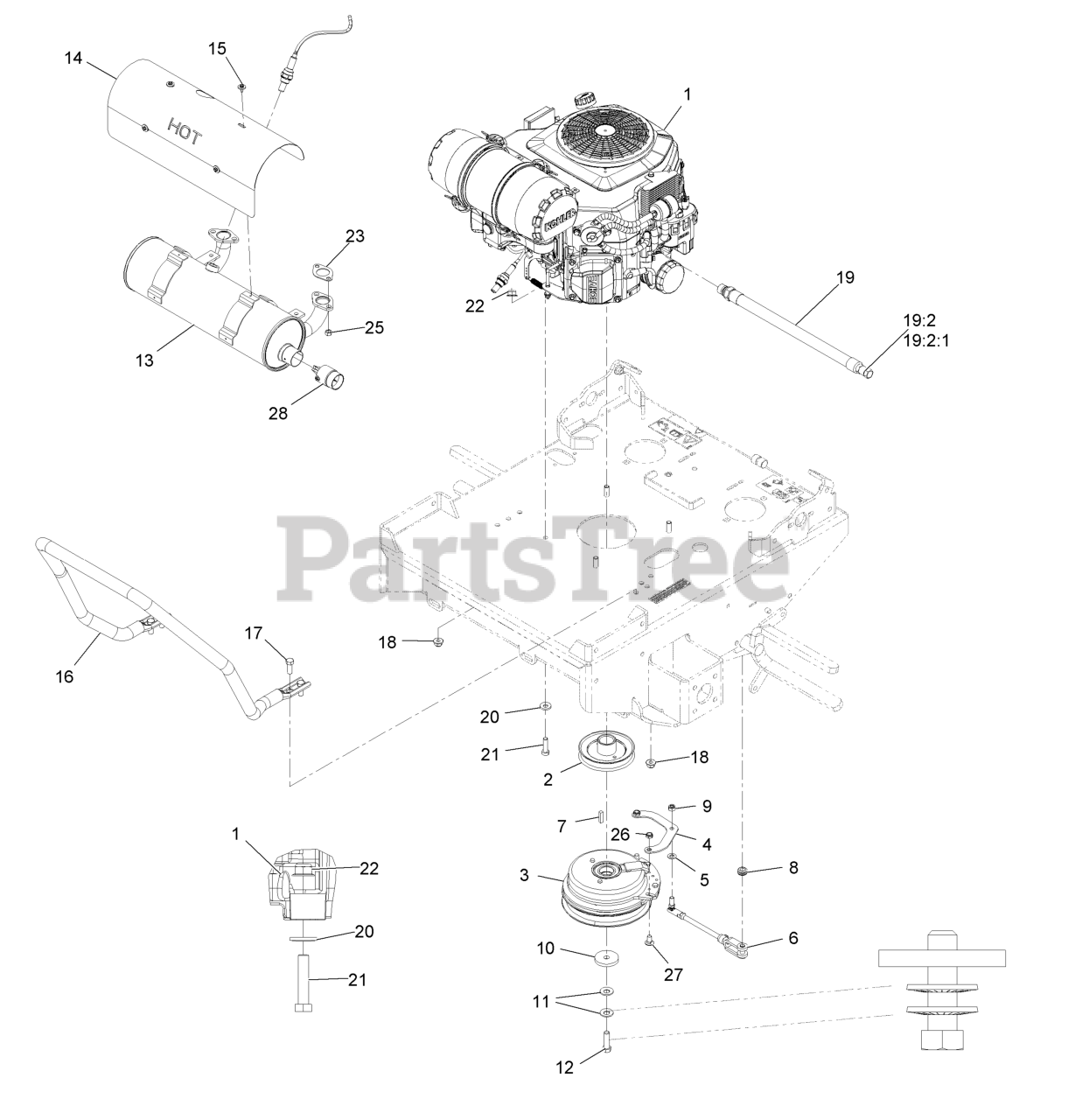

Engine Assembly Parts Diagram

  • Title

1

Engine, Kohler Pcv680

$

$

Not available

2

Exmark 126-2605

Sheave W/ Hub

$82.99

$

In Stock, only 4 left!

0

3

Exmark 126-2601

Clutch, 200 Ft/Lbs, 1.13

$674.99

$

In Stock, only 1 left!

0

4

Exmark 126-2602

Strap, Clutch

$12.99

$

In Stock, only 2 left!

0

5

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

6

Exmark 126-0620

ASM, Clutch Anchor

$76.99

$

In Stock, only 2 left!

0

7

Exmark 1-807259

Key-Machine 1/4 X 1/4 X 1

$2.49

$

In Stock, Qty 20+

0

8

Exmark 237-136

Grommet

$4.49

$

In Stock, only 3 left!

0

9

Exmark 3296-4

Nut-Lock 5/16-24

$0.99

$

In Stock, Qty 6

0

10

Exmark 109-6919

Washer-Clutch

$8.99

$

In Stock, Qty 6

0

11

Exmark 1-603610

Washer-Spring Disc 7/16

$5.99

$

In Stock, Qty 20+

0

12

Exmark 87-2080

Bolt-Hex, TAP

$10.99

$

Usually ships in 3-6 days

0

13

Exmark 116-8653

Muffler-Ttx, Efi

$356.99

$

Usually ships in 3-6 days

0

14

Exmark 116-8654

Shield-Muffler,Ttx Efi

$71.99

$

Usually ships in 3-6 days

0

15

Exmark 116-1103

Screw-HH, Thread Forming

$2.99

$

In Stock, Qty 5

0

16

Exmark 116-8575-03

Guard,Air Cleaner
(Superseded to 135-4730-03)

$144.99

$

Usually ships in 3-6 days

0

17

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.99

$

In Stock, Qty 20+

0

18

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

19

Exmark 116-5316

Oil Drain Hose ASM

$62.99

$

In Stock, Qty 11

0

19:2

Exmark 353-508

Plug-W/O-Ring

$9.49

$

In Stock, only 1 left!

0

19:2:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 14

0

20

Exmark 1-303334

Washer-Spring Disc 5/16

$2.99

$

In Stock, Qty 20+

0

21

Exmark 322-7

Screw-HH 5/16-18 X 1 1/2

$1.49

$

In Stock, Qty 20+

0

22

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

23

Exmark 110-6697

Gasket-Exhaust

$7.49

$

Usually ships in 3-6 days

0

25

Exmark 68-9400

Nut-Flange

$2.99

$

In Stock, only 1 left!

0

26

Exmark 3296-47

Nut-Nyloc 5/16-18 Thin

$4.49

$

In Stock, Qty 20+

0

27

Exmark 3230-18

Bolt-Carriage 5/16-18 X 5/8

$5.99

$

In Stock, Qty 8

0

28

Exmark 75-6880

Screen-Arrester, Spark

$128.99

$

Usually ships in 3-6 days

0
