Ultra Vac - Exmark Ultra Vac Bagger for LHP Mower (SN: 370000 - 439999) (2003) Hood And Bag Assembly Parts Diagram

Ultra Vac Bagger for LHP Mower

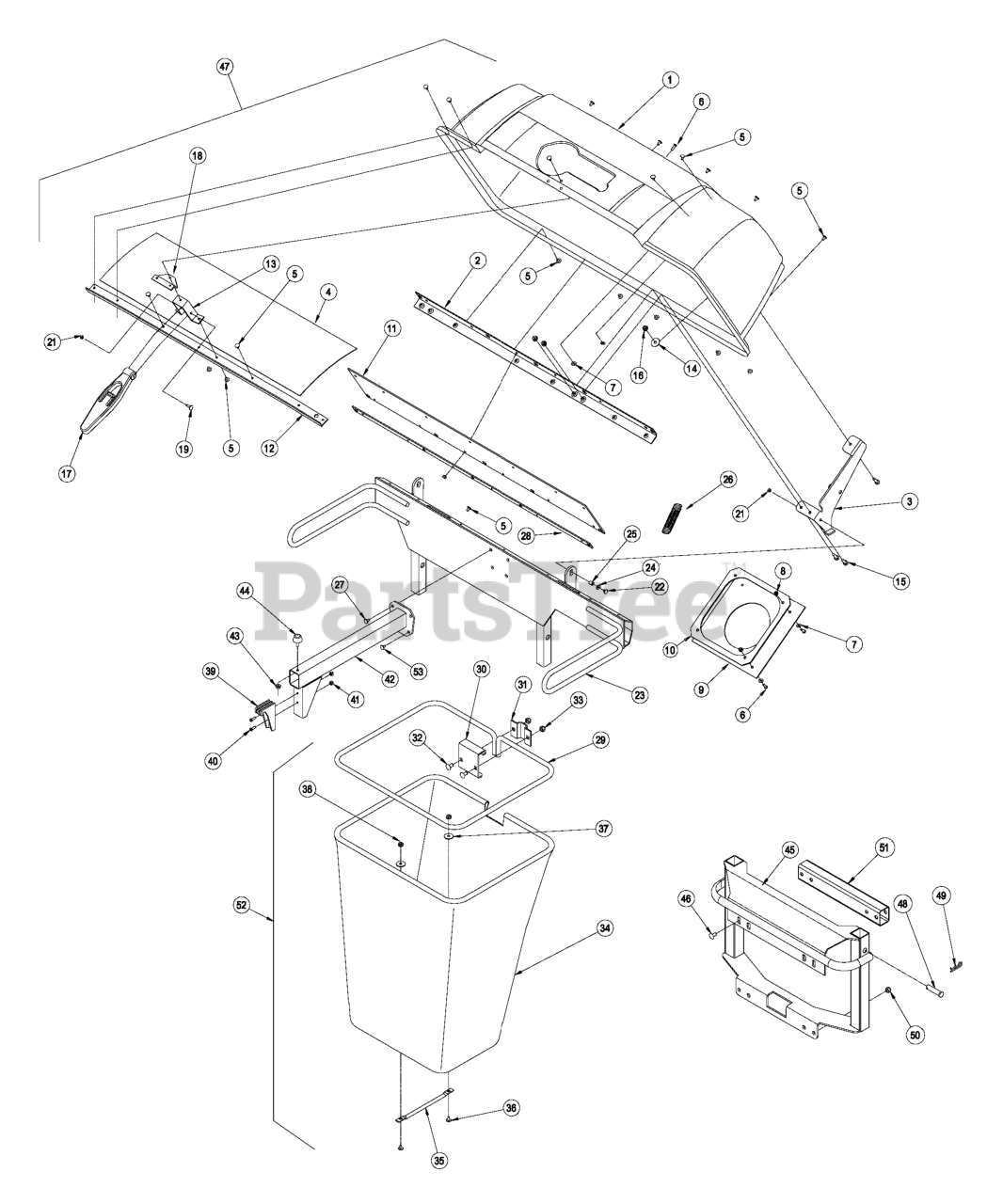

Hood And Bag Assembly Parts Diagram

  • Title

1

Exmark 1-653396

1-654597
(Superseded to 1-654597)

$845.99

$

Usually ships in 3-6 days

0

2

Exmark 1-653397-03

STIFFENER-BAGGER, TOP

$90.99

$

Usually ships in 3-6 days

0

3

Exmark 1-652395-03

HINGE ASM

$104.99

$

Usually ships in 3-6 days

0

4

Exmark 114967

SCREEN-BAGGER

$43.99

$

In Stock, only 3 left!

0

5

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

6

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

7

Exmark 3256-61

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

8

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Exmark 1-653561

SEAL-CHUTE

$23.99

$

In Stock, only 2 left!

0

10

Exmark 1-653598-03

CLAMP-SEAL

$87.99

$

Usually ships in 3-6 days

0

11

Exmark 1-653425

SEAL

$93.99

$

Usually ships in 3-6 days

0

12

Exmark 1-653400-03

SUPPORT-SCREEN

$95.99

$

Usually ships in 3-6 days

0

13

Exmark 1-653519

ANCHOR-LATCH

$99.99

$

Usually ships in 3-6 days

0

14

Exmark 1-653036

WASHER

$5.99

$

In Stock, only 2 left!

0

15

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

17

Exmark 1-653403

LATCH

$90.99

$

In Stock, only 2 left!

0

18

Exmark 1-653535

REINFORCEMENT-LATCH

$54.99

$

Usually ships in 3-6 days

0

19

Exmark 321-11

SCREW-HH

$0.99

$

In Stock, Qty 10

0

21

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

22

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

23

Exmark 1-652305-03

103-5129
(Superseded to 103-5129)

$

$

Not available

24

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 18

0

25

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

26

Exmark 1-653544

SPRING-EXTENSION

$9.99

$

Usually ships in 3-6 days

0

27

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Exmark 1-653528-03

PLATE-BACKING

$77.99

$

Usually ships in 3-6 days

0

29

Exmark 1-653529-03

FRAME-BAG

$134.99

$

Usually ships in 3-6 days

0

30

Exmark 114973-03

HANGER-BAG

$28.99

$

In Stock, only 2 left!

0

31

Exmark 114974-03

CLAMP

$15.99

$

In Stock, only 2 left!

0

32

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

33

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

34

Exmark 1-654389

116-3518
(Superseded to 116-3518)

$128.99

$

In Stock, only 3 left!

0

35

Exmark 1-653566

HANDLE-BAG

$13.99

$

Usually ships in 3-6 days

0

36

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

37

Exmark 1-653036

WASHER

$5.99

$

In Stock, only 2 left!

0

38

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

39

Exmark 1-653404

CATCH

$42.99

$

In Stock, only 2 left!

0

40

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

41

Exmark 1-809112

3290-148
(Superseded to 3290-148)

$0.99

$

In Stock, Qty 7

0

42

Exmark 1-652414-03

103-5124-03
(Superseded to 103-5124-03)

$180.99

$

Usually ships in 3-6 days

0

43

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

44

Exmark 1-523420

109-2365
(Superseded to 109-2365)

$5.99

$

In Stock, Qty 20+

0

45

Exmark 1-652308-03

BAGGER MOUNT ASM

$567.99

$

Usually ships in 3-6 days

0

46

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

Exmark 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

Exmark 322-12

SCREW-HH

Note: Used in Adapter Kit 103-0328 for Lazer HP model LHP4818KC below Serial Number 176621 only

$2.49

$

In Stock, Qty 13

0

47

Exmark 1-654597

ASM, HOOD

Note: Includes items 1,2,4,7,12,13,18 riveted together and Decal

$845.99

$

Usually ships in 3-6 days

0

48

Exmark 1-808289

PIN-CLEVIS

$12.99

$

Usually ships in 3-6 days

0

49

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

50

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

51

Exmark 103-0325-03

TUBE,SPACER

Note: Used in Adapter Kit 103-0328 for Lazer HP model LHP4818KC below Serial Number 176621 only

$

$

Not available

52

Exmark 1-654390

116-3519
(Superseded to 116-3519)

Note: Includes items 29 through 38.

$300.99

$

Usually ships in 3-6 days

0

53

Exmark 3274-55

SCREW-HSBH

$5.99

$

In Stock, Qty 6

0
