Ultra Vac - Exmark Ultra Vac Bagger for LHP Mower (SN: 440000 - 509999) (2004) Blower Assembly (Cont.) Parts Diagram

Ultra Vac Bagger for LHP Mower

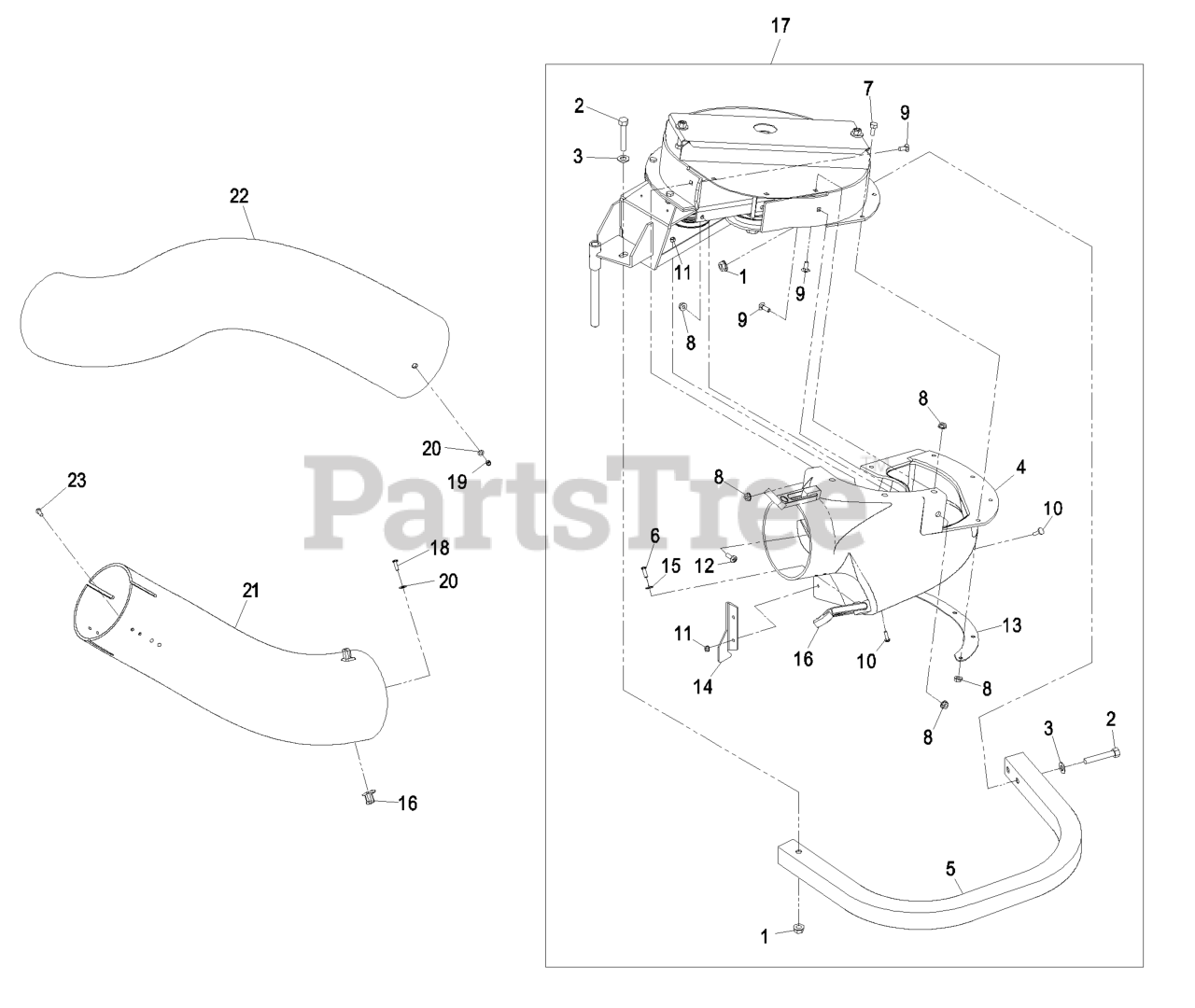

Blower Assembly (Cont.) Parts Diagram

  • Title

1

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

2

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

3

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

4

Exmark 103-4764

ASM,BLOWER CHUTE SMALL

$465.99

$

In Stock, only 1 left!

0

5

Exmark 1-653352-01

BUMPER

$

$

Not available

6

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

7

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

9

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

10

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

Exmark 1-803078

Screw, Crth #10-24 X 3/4 (52)

$

$

Currently unavailable

11

Exmark 3290-148

NUT-HF

$0.99

$

In Stock, Qty 7

0

Exmark 3290-14

Nut, Whizlock #10-24 (52)

$

$

Currently unavailable

12

Exmark 1-803076

SCREW

$1.49

$

Usually ships in 3-6 days

0

13

Exmark 1-653596-03

PLATE-BACKING, BLOWER

$55.99

$

Usually ships in 3-6 days

0

14

Exmark 1-653443-03

PLATE, FILLER

$55.99

$

Usually ships in 3-6 days

0

15

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Exmark 1-653429

LATCH DRAW

$

$

Not available

17

Exmark 103-0401

ASM,BLOWER 44/48 - SERVIC

Note: (Includes All Items "Blower Assembly" & Items 1-16 & Decals)

$2171.99

$

Usually ships in 3-6 days

0

Exmark 103-0400

ASM,BLOWER 52 SERVICE ONL

Note: (Includes All Items "Blower Assembly" & Items 1-16 & Decals)

$2231.99

$

Usually ships in 3-6 days

0

18

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

19

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Exmark 103-4175

109-2040
(Superseded to 109-2040)

$247.99

$

Usually ships in 3-6 days

0

22

Exmark 1-653406

109-2033
(Superseded to 109-2033)

$283.99

$

Usually ships in 3-6 days

0

Exmark 1-653540

109-2034
(Superseded to 109-2034)

Note: Also used in Adapter Kit 103-0328 on 48" deck Lazer HP model LHP4818KC Serial Number 176621 & below.

$278.99

$

Usually ships in 3-6 days

0

23

Exmark 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

Exmark 1-850337

PAINT,SPRAY RED

$37.99

$

In Stock, Qty 9

0

Exmark 103-0583

KIT,ACCY TUBE REPLACEMENT

Note: To add or repair the welded-on accessory mounting tube on all 44"-72" decks.

$

$

Not available
