Ultra Vac - Exmark Ultra Vac QDS Bagger for LHP Mower (SN: 440000 - 509999) (2004) Hood And Screen Assembly Parts Diagram

Ultra Vac QDS Bagger for LHP Mower

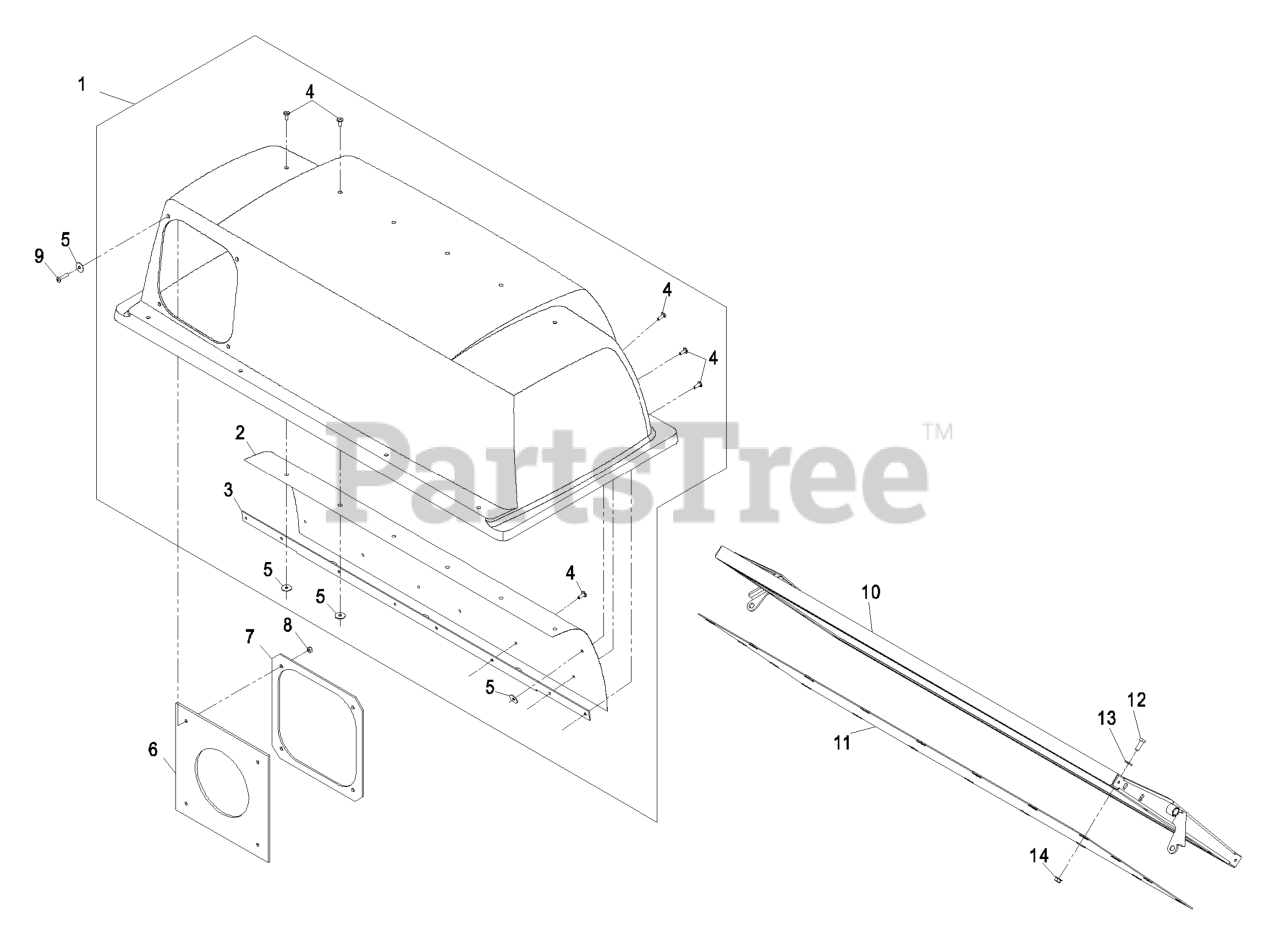

Hood And Screen Assembly Parts Diagram

  • Title

1

Exmark 103-6232

ASM, HOOD

Note: Includes items 2,3,4 and 5 riveted together and Decal.

$581.99

$

Usually ships in 3-6 days

0

2

Exmark 114967

SCREEN-BAGGER

$43.99

$

In Stock, only 3 left!

0

3

Exmark 103-5101-03

SUPPORT-SCREEN

$43.99

$

Usually ships in 3-6 days

0

4

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

5

Exmark 3256-61

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

6

Exmark 1-653561

SEAL-CHUTE

$23.99

$

In Stock, only 2 left!

0

7

Exmark 1-653598-03

CLAMP-SEAL

$87.99

$

Usually ships in 3-6 days

0

8

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Exmark 3250-27

SCREW-PPH

$0.99

$

In Stock, only 1 left!

0

10

Exmark 103-4406-03

DOOR-FRAME

$622.99

$

Usually ships in 3-6 days

0

11

Exmark 103-4828

SCREEN-DOOR
(Superseded to 161-6793)

$90.99

$

Usually ships in 3-6 days

0

12

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0
