Ultra Vac - Exmark Ultra Vac QDS Bagger for Mower (SN: 370000 - 439999) (2003) Blower Assembly Parts Diagram

Ultra Vac QDS Bagger for Mower

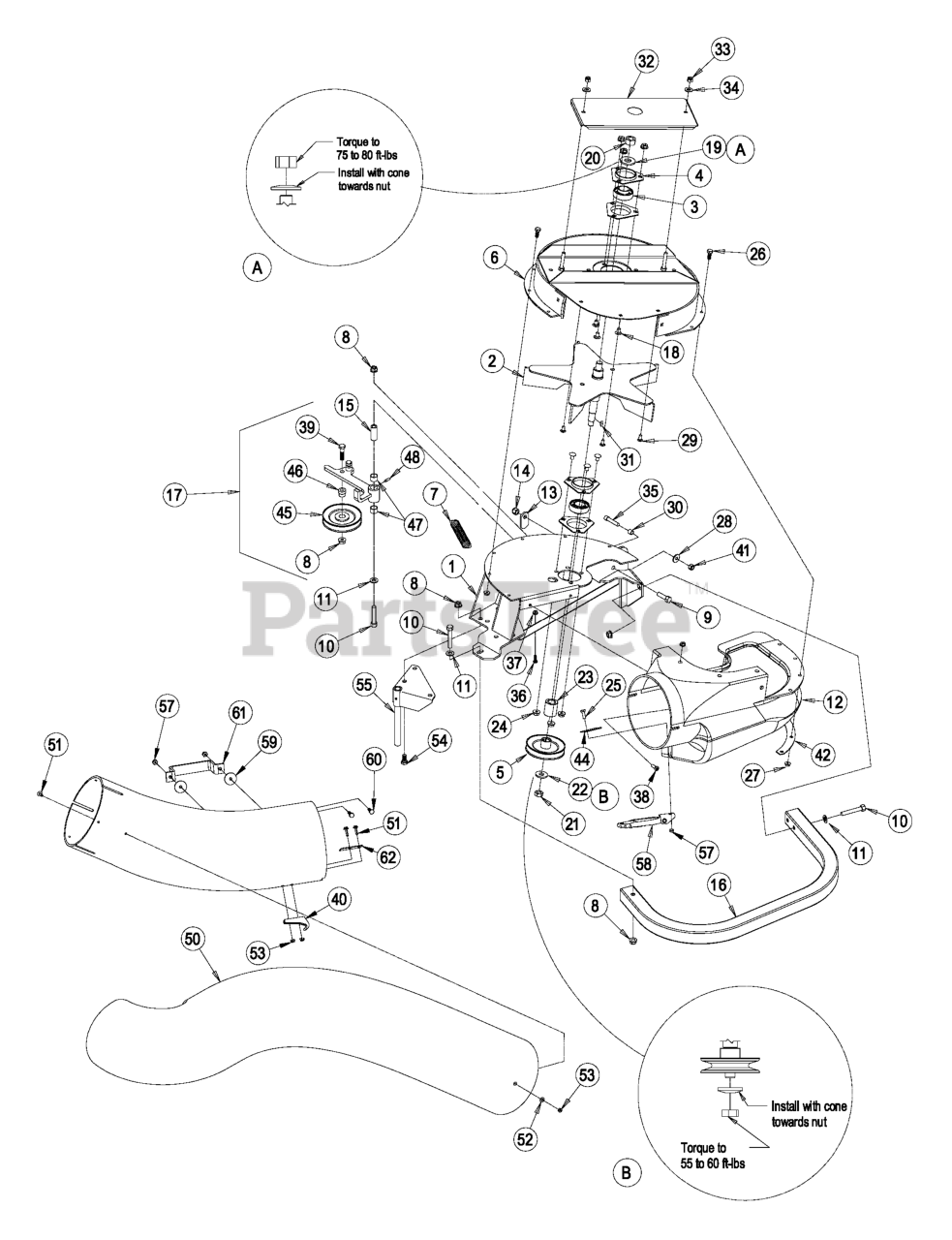

Blower Assembly Parts Diagram

  • Title

1

Exmark 103-0454-03

109-1133-03
(Superseded to 109-1133-03)

$795.99

$

Usually ships in 3-6 days

0

2

Exmark 103-0455

IMPELLER

$494.99

$

Usually ships in 3-6 days

0

3

Exmark 1-653346

BEARING

$82.99

$

In Stock, Qty 11

0

4

Exmark 1-513013

HOUSING-FLANGE

$5.99

$

In Stock, Qty 20+

0

5

Exmark 103-0456

SHEAVE

Note: Apply Mobil HTS grease (or a food-grade antisieze) on bore of sheave.

$60.99

$

Usually ships in 3-6 days

0

6

Exmark 103-3593

ASM, UPPER HSG

$646.99

$

Usually ships in 3-6 days

0

7

Exmark 1-653331

SPRING-IDLER

$13.99

$

In Stock, only 2 left!

0

8

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

10

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

12

Exmark 103-0426

CHUTE, BLOWER

$410.99

$

Usually ships in 3-6 days

0

13

Exmark 1-353054

LATCH-CATCHER, GRASS

$8.99

$

In Stock, only 1 left!

0

14

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Exmark 1-603044

BUSHING

$15.99

$

In Stock, Qty 20+

0

16

Exmark 103-0458-01

BUMPER

$136.99

$

Usually ships in 3-6 days

0

17

Exmark 103-0448

ASM, IDLER ARM - SERVICE

$180.99

$

Usually ships in 3-6 days

0

18

Exmark 3230-18

SCREW-CARR

$5.99

$

In Stock, Qty 8

0

19

Exmark 1-513208

WASHER-SPRING

$10.99

$

In Stock, only 2 left!

0

20

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

21

Exmark 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

22

Exmark 1-513435

WASHER-SPRING

$6.49

$

In Stock, Qty 20+

0

23

Exmark 103-0460

SPACER

$22.99

$

In Stock, only 2 left!

0

24

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

28

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

29

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

30

Exmark 103-0126

BUSHING, LOCATOR

$7.99

$

In Stock, only 4 left!

0

31

Exmark 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, only 1 left!

0

32

Exmark 103-3583

ASM, BEARING COVER

$122.99

$

Usually ships in 3-6 days

0

33

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

34

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Exmark 3274-18

SCREW-HSH

$10.99

$

In Stock, only 2 left!

0

36

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

37

Exmark 1-809112

3290-148
(Superseded to 3290-148)

$0.99

$

In Stock, Qty 7

0

38

Exmark 1-803076

SCREW

$1.49

$

Usually ships in 3-6 days

0

39

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Exmark 103-2897

LATCH-CATCH

$9.49

$

In Stock, Qty 9

0

41

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

42

Exmark 103-0461-03

PLATE-BACKING, BLOWER

$17.99

$

Usually ships in 3-6 days

0

44

Exmark 103-3093

PLATE-BACKING

$9.49

$

Usually ships in 3-6 days

0

45

Exmark 103-0483

IDLER

$56.99

$

In Stock, only 2 left!

0

46

Exmark 1-653367

HUB,SPACER

$26.99

$

In Stock, only 2 left!

0

47

Exmark 1-653600

BUSHING

$22.99

$

In Stock, only 3 left!

0

48

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

49

Exmark 103-2420

DISCONTINUED

$

$

Not available

50

Exmark 103-0424

109-3525
(Superseded to 109-3525)

$578.99

$

Usually ships in 3-6 days

0

Exmark 103-0425

109-1968
(Superseded to 109-1968)

$398.99

$

Usually ships in 3-6 days

0

51

Exmark 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

52

Exmark 3256-61

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

53

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

54

Exmark 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

55

Exmark 103-0445-03

PIN-MOUNT

$79.99

$

In Stock, only 1 left!

0

56

Exmark 103-0450

103-2991
(Superseded to 103-2991)

Note: (Includes items 1-48 & decals)

$2137.99

$

Usually ships in 3-6 days

0

57

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

58

Exmark 103-2898

LATCH-RUBBER

$38.99

$

In Stock, Qty 9

0

59

Exmark 3256-55

WASHER-FLAT

$5.99

$

In Stock, Qty 9

0

60

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

61

Exmark 1-353005-03

HANDLE

$17.99

$

In Stock, only 1 left!

0

62

Exmark 103-3079

PLATE-BACKING

$9.49

$

Usually ships in 3-6 days

0

Exmark 1-850337

PAINT,SPRAY RED

$37.99

$

In Stock, Qty 9

0
