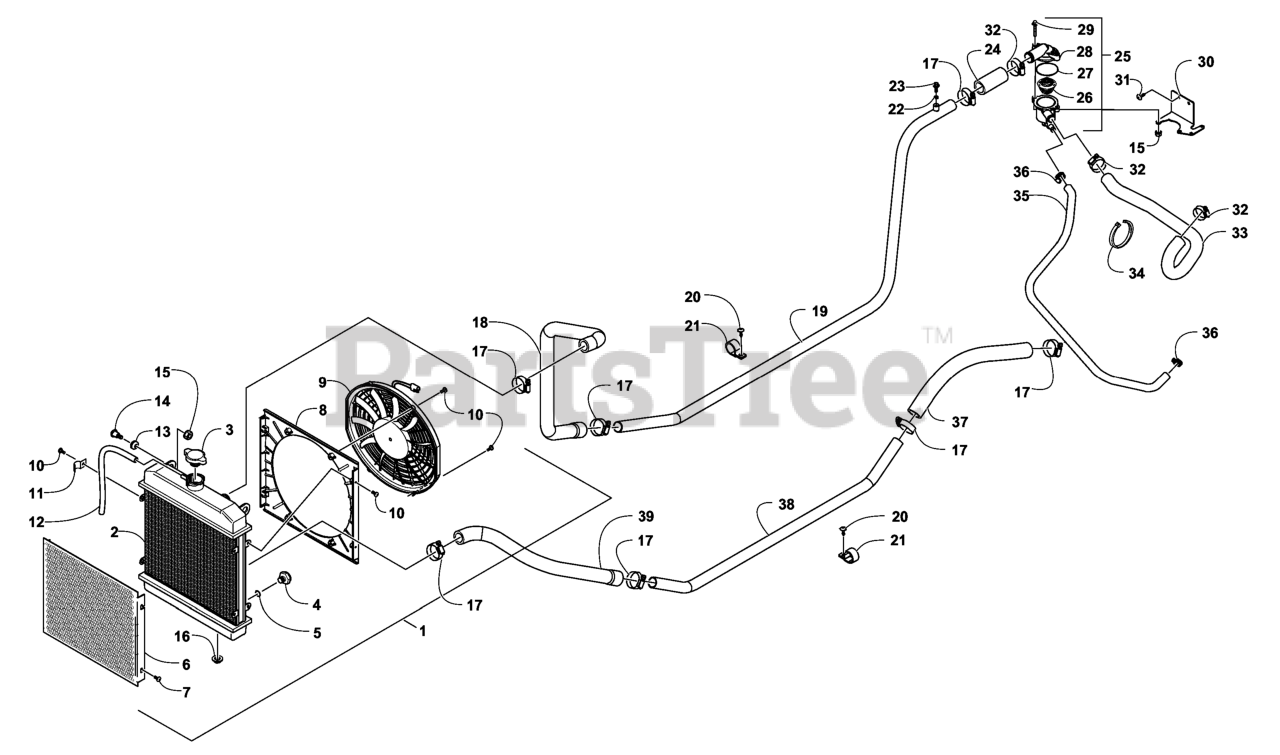

UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Cooling Assembly Parts Diagram

500S Utility Vehicle

Cooling Assembly Parts Diagram

  • Title

1

Exmark 132-1877

RADIATOR ASM

Note: (inc. 2-13)

$

$

Not available

2

Exmark 132-1873

RADIATOR

$

$

Not available

3

Exmark 132-1876

CAP-RADIATOR

$126.99

$

Usually ships in 3-6 days

0

4

Exmark 132-1871

PLUG-DRAIN, RADIATOR

$

$

Not available

5

Exmark 132-2703

O-RING

$1.49

$

Usually ships in 3-6 days

0

6

Exmark 132-1867

SCREEN-RADIATOR

$

$

Not available

7

Exmark 132-3104

SCREW-TSPRH

$

$

Not available

8

Exmark 132-1872

SHROUD-FAN

$

$

Not available

9

Exmark 132-1870

FAN-RADIATOR

$

$

Not available

10

Exmark 1-322102

103-0229
(Superseded to 103-0229)

$950.99

$

Usually ships in 3-6 days

0

11

Exmark 132-1908

CLIP-HOSE

$

$

Not available

12

Exmark 132-2090

HOSE-GAS

$

$

Not available

12

Exmark 132-2089

HOSE-GAS

$

$

Not available

13

Exmark 132-1893

GROMMET

$

$

Not available

14

Exmark 132-1927

BOLT-SHOULDER

$

$

Not available

15

Exmark 132-2094

NUT-HH, SEMS

$

$

Not available

16

Exmark 132-1892

BUSHING-STEM

$

$

Not available

17

Exmark 132-1930

CLAMP-WORM, HOSE

$

$

Not available

18

Exmark 132-1845

HOSE-RADIATOR, UPPER COOL

$

$

Not available

19

Exmark 1-322075

103-0232
(Superseded to 103-0232)

$

$

Not available

20

Exmark 132-2107

SCREW-TSTRH, SELFTAP

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 132-1943

CLAMP-PIPE

$

$

Not available

22

Exmark 132-1964

O-RING

$

$

Not available

23

Exmark 132-3201

Screw, Bleed

$

$

Currently unavailable

24

Exmark 132-1849

HOSE-COOLANT

$

$

Not available

25

Exmark 132-2912

HOUSING-THERMOSTAT

Note: (inc. 26-29)

$

$

Not available

26

Exmark 132-2240

THERMOSTAT ASM

$

$

Not available

27

Exmark 132-2511

O-RING

$

$

Not available

28

Exmark 132-2175

COVER-THERMOSTAT

$49.99

$

Usually ships in 3-6 days

0

29

Exmark 132-2814

BOLT-FLANGE

$

$

Not available

30

Exmark 132-1882

BRACKET-MOUNT,THERMOSTAT/

$

$

Not available

31

Exmark 132-2100

SCREW-HWH, SELFTAP

$

$

Not available

32

Exmark 132-1928

CLAMP

$

$

Not available

33

Exmark 132-1847

HOSE-COOLANT, THERMOSTAT

$

$

Not available

34

Exmark 132-2106

CABLE TIE

$

$

Not available

35

Exmark 132-1848

HOSE-COOLANT

$

$

Not available

36

Exmark 132-1949

CLAMP-HOSE

$

$

Not available

37

Exmark 132-1846

HOSE-COOLANT, LOWER ENGIN

$

$

Not available

38

Exmark 132-1843

PIPE-COOLANT, LOWER

$

$

Not available

39

Exmark 132-1844

HOSE-RADIATOR, LOWER COOL

$

$

Not available
