UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Engine And Exhaust Parts Diagram

500S Utility Vehicle

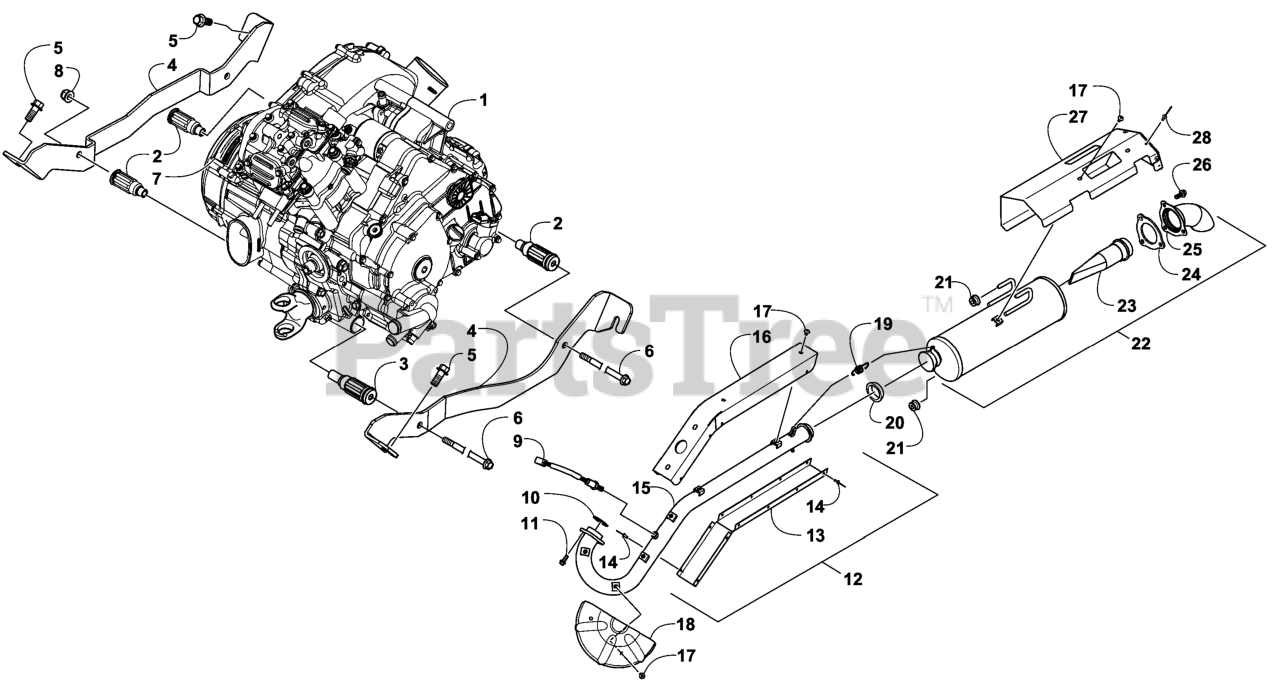

Engine And Exhaust Parts Diagram

  • Title

1

Exmark 132-2941

ENGINE-HDX 450 W/RUBBER M

Note: (inc. 2-3)

$

$

Not available

2

Exmark 1-322125

110-5866
(Superseded to 110-5866)

$28.99

$

Usually ships in 3-6 days

0

3

Exmark 132-2126

BUSHING-RUBBER, LONG

$

$

Not available

4

Exmark 132-3019

BRACKET-ENGINE, RH

$

$

Not available

4

Exmark 132-3020

BRACKET-ENGINE, LH

$

$

Not available

5

Exmark 1-323069

DISCONTINUED (EXMARK)

$

$

Not available

6

Exmark 132-2652

SCREW-HFH

$

$

Not available

7

Exmark 132-1850

DECAL-WARNING, CLUTCH COV

$

$

Not available

8

Exmark 1-323086

DISCONTINUED (EXMARK)

$

$

Not available

9

Exmark 1-322110

GUIDE-BELT

$13.99

$

In Stock, Qty 7

0

10

Exmark 132-2930

SEAL-EXHAUST PIPE

$

$

Not available

11

Exmark 132-3057

SCREW-HFH

$1.49

$

Usually ships in 3-6 days

0

12

Exmark 132-2067

PIPE-EXHAUST

Note: (inc. 13-16 and four No. 17)

$

$

Not available

13

Exmark 132-1859

SHIELD-PIPE, LOWER

$

$

Not available

14

Exmark 132-2708

RIVET

$3.99

$

Usually ships in 3-6 days

0

15

Exmark 132-2068

PIPE-EXHAUST, HI TEMP

$

$

Not available

16

Exmark 132-1857

SHIELD-PIPE, UPPER-REAR

$

$

Not available

17

Exmark 1-323112

SPROCKET,GEARBOX 5 SPEED

$

$

Not available

18

Exmark 1-322066

DISCONTINUED

$

$

Not available

19

Exmark 132-2093

SPRING-EXTENSION

$11.99

$

Usually ships in 3-6 days

0

20

Exmark 132-1854

SEAL-EXHAUST

$45.99

$

Usually ships in 3-6 days

0

21

Exmark 132-1855

GROMMET-EXHAUST HANGER

$

$

Not available

22

Exmark 132-2070

MUFFLER ASM

Note: (inc. 23-26)

$

$

Not available

23

Exmark 132-2069

SPARK ARRESTER

$

$

Not available

24

Exmark 132-1856

GASKET-SPARK ARRESTER

$49.99

$

Usually ships in 3-6 days

0

25

Exmark 132-2072

TAIL PIPE ASM

$

$

Not available

26

Exmark 132-3055

SCREW-HFH

$

$

Not available

27

Exmark 132-2071

SHIELD-MUFFLER

Note: (inc. 28)

$

$

Not available

28

Exmark 1-323051

BELT,COG

$57.99

$

Usually ships in 3-6 days

0
