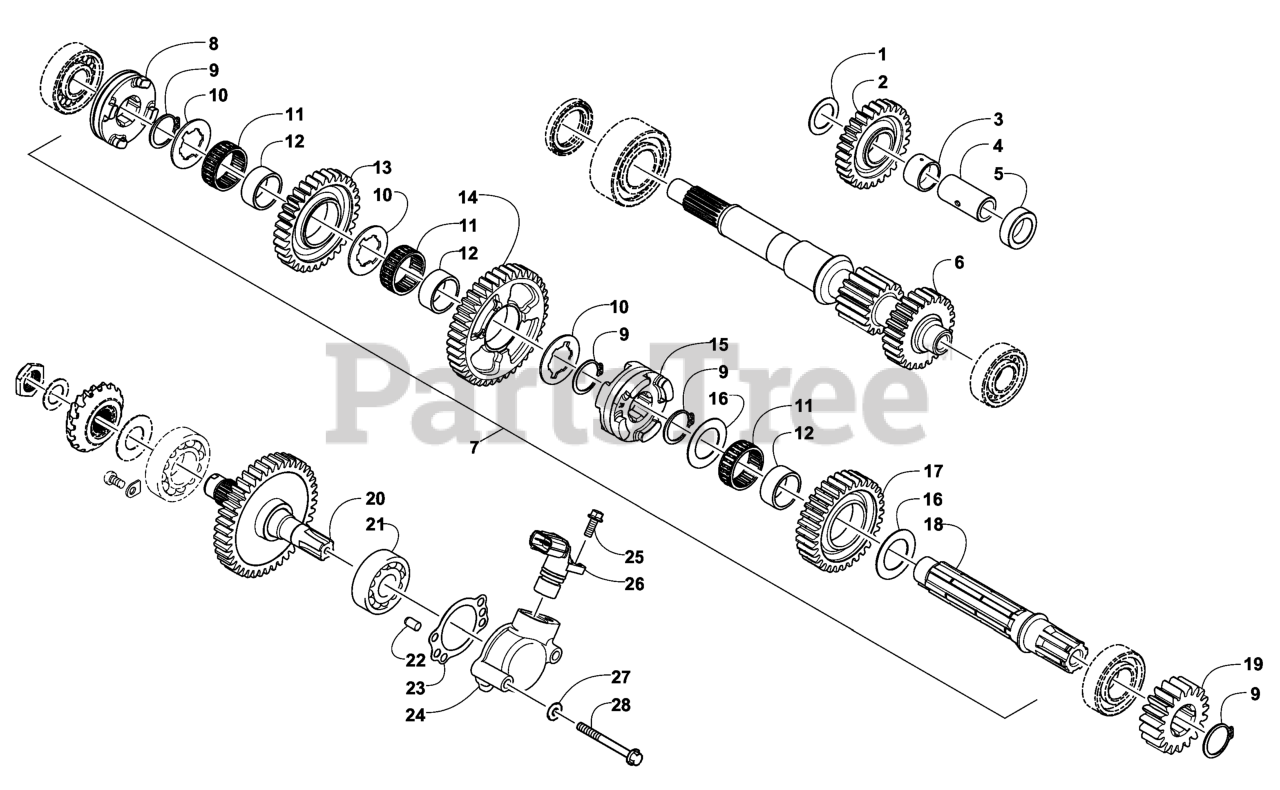

UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Secondary Transmission Assembly Parts Diagram

500S Utility Vehicle

Secondary Transmission Assembly Parts Diagram

  • Title

1

Exmark 132-2432

WASHER-THRUST

$

$

Not available

2

Exmark 132-2295

GEAR-REVERSE IDLE, 28T

$

$

Not available

3

Exmark 132-2298

BUSHING-GEAR, REVERSE IDL

$

$

Not available

4

Exmark 132-2297

SHAFT-REVERSE IDLER

$

$

Not available

5

Exmark 132-2291

SPACER-REVERSE IDLE GEAR

$

$

Not available

6

Exmark 132-2308

SHAFT-DRIVE

$

$

Not available

7

Exmark 132-2922

COUNTER SHAFT ASM

Note: (inc. 8-18)

$1640.99

$

Usually ships in 3-6 days

0

8

Exmark 132-2917

SHIFT-BACKWARD

$

$

Not available

9

Exmark 132-2834

CLIP-CIR

$

$

Not available

10

Exmark 132-2827

WASHER-SPLINE

$

$

Not available

11

Exmark 132-2544

BEARING-NEEDLE, ROLLER

$64.99

$

Usually ships in 3-6 days

0

12

Exmark 132-2296

BUSHING

$38.99

$

Usually ships in 3-6 days

0

13

Exmark 132-2918

GEAR-DRIVEN, BACKWARD (32

$

$

Not available

14

Exmark 132-2919

GEAR-DRIVEN, LOWER (40T)

$

$

Not available

15

Exmark 132-2920

SHAFT-FORWARD, LOW

$

$

Not available

16

Exmark 132-2826

WASHER-THRUST

$

$

Not available

17

Exmark 132-2921

GEAR-DRIVEN, FORWARD (32T

$470.99

$

Usually ships in 3-6 days

0

18

Exmark 132-2289

COUNTERSHAFT

$

$

Not available

19

Exmark 132-2290

GEAR-DRIVEN, NO. 2

$

$

Not available

20

Exmark 132-2288

SHAFT-OUTPUT

$

$

Not available

21

Exmark 132-2839

BEARING-BALL, RADIAL

$

$

Not available

22

Exmark 132-2817

ROLLER

$

$

Not available

23

Exmark 132-2497

GASKET-SPEEDO

$

$

Not available

24

Exmark 132-2300

HOUSING-SPEEDO SENSOR

$

$

Not available

25

Exmark 132-2812

BOLT-FLANGE

$

$

Not available

26

Exmark 132-2927

SENSOR-SPEED

$

$

Not available

27

Exmark 132-2496

SEAL-FASTENER

$

$

Not available

28

Exmark 132-2816

BOLT-FLANGE

$

$

Not available
