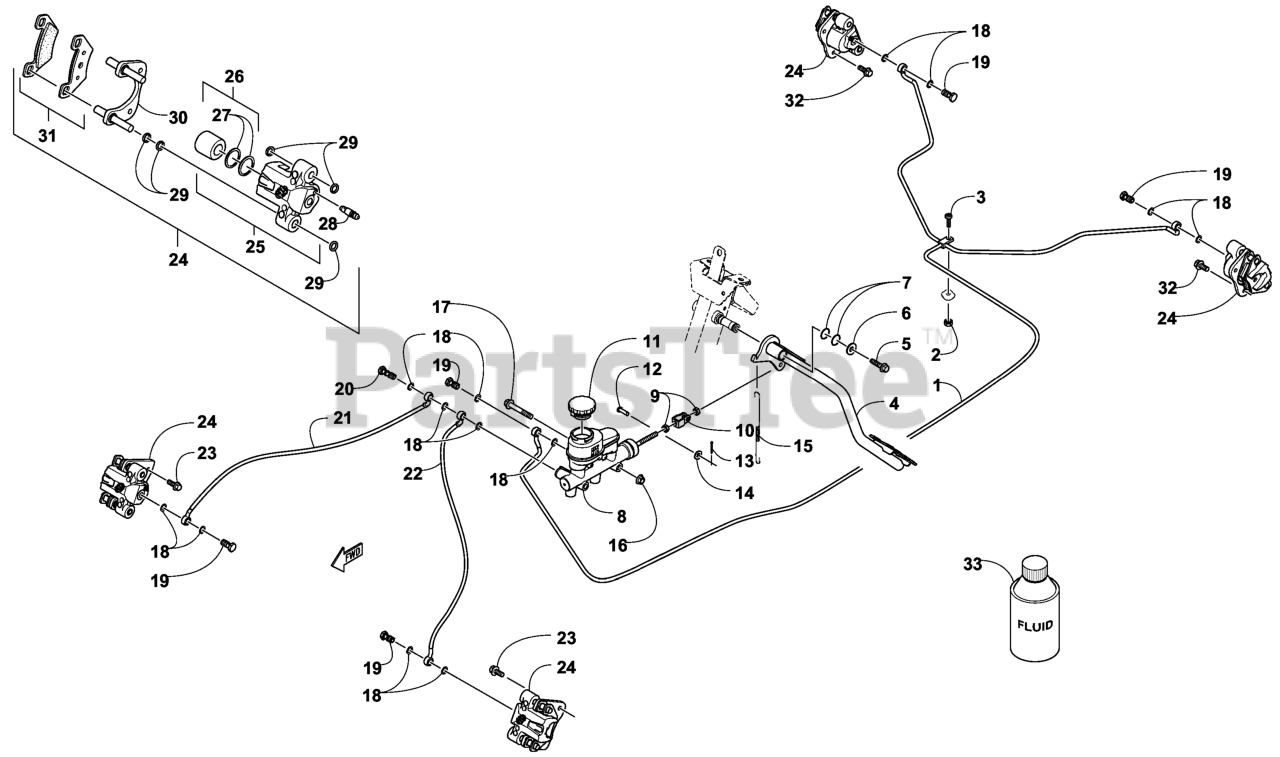

UTS700AAC00000 - Exmark 700S Utility Vehicle (2015) Hydraulic Brake Assembly Parts Diagram

700S Utility Vehicle

Hydraulic Brake Assembly Parts Diagram

  • Title

1

Exmark 132-2604

HOSE-BRAKE, REAR

$

$

Not available

2

Exmark 132-2094

NUT-HH, SEMS

$

$

Not available

3

Exmark 132-3105

SCREW-TSPRH

$

$

Not available

4

Exmark 132-2683

PEDAL-BRAKE

$

$

Not available

5

Exmark 132-3059

SCREW-HFH

$

$

Not available

6

Exmark 132-2095

WASHER-FLAT, HARDENED

$

$

Not available

7

Exmark 132-2703

O-RING

$1.49

$

Usually ships in 3-6 days

0

8

Exmark 132-2765

CYLINDER

Note: (inc. 9-11)

$

$

Not available

9

Exmark 132-1783

NUT-JAM

$

$

Not available

10

Exmark 132-2591

CLEVIS

$

$

Not available

11

Exmark 132-2766

KIT-SERVICE CAP, TANDEM M

$

$

Not available

12

Exmark 132-2588

PIN-CLEVIS

$

$

Not available

13

Exmark 132-1752

PIN-COTTER

$

$

Not available

14

Exmark 132-3049

WASHER-FLAT

$

$

Not available

15

Exmark 132-2039

SPRING-BRAKE SWITCH

$

$

Not available

16

Exmark 132-3085

NUT-HHF, LOCK, (NI)

$

$

Not available

17

Exmark 132-3064

SCREW-HFH

$7.99

$

Usually ships in 3-6 days

0

18

Exmark 132-1904

WASHER-CRUSH

$

$

Not available

19

Exmark 132-1920

BOLT-BANJO FITTING

$

$

Not available

20

Exmark 132-1946

BOLT-BANJO FITTING, DOUBL

$

$

Not available

21

Exmark 132-2586

HOSE-BRAKE, FRONT RH

$

$

Not available

22

Exmark 132-2589

HOSE-BRAKE, FRONT

$319.99

$

Usually ships in 3-6 days

0

23

Exmark 132-3060

SCREW-HFH

$

$

Not available

24

Exmark 132-2684

KIT-CALIPER, FULL ASM (RH

Note: (inc. 25-31) Front Right

$

$

Not available

24

Exmark 132-2685

KIT-CALIPER, FULL ASM (LH

Note: (inc. 25-31) Front Left

$

$

Not available

25

Exmark 132-2654

KIT-HOUSING (PISTONS, SEA

Note: (inc. 26-28) Front Right & Rear Right

$

$

Not available

24

Exmark 132-2663

KIT-CALIPER, FULL ASM (RH

Note: (inc. 25-32) Rear Right

$

$

Not available

24

Exmark 132-2664

KIT-CALIPER, FULL ASM (LH

Note: (inc. 25-32) Rear Left

$985.99

$

Usually ships in 3-6 days

0

25

Exmark 132-2655

KIT-HOUSING (PISTONS, SEA

Note: (inc. 26-28) Front Left & Rear Left

$678.99

$

Usually ships in 3-6 days

0

26

Exmark 1-322034

1-302228
(Superseded to 1-302228)

Note: (inc. 27)

$

$

Not available

27

Exmark 132-2035

SEAL SET

$

$

Not available

28

Exmark 132-2037

BLEEDER-CALIPER

$

$

Not available

29

Exmark 1-322036

1-302229
(Superseded to 1-302229)

$

$

Not available

30

Exmark 1-322040

ARM - IDLER

$

$

Not available

30

Exmark 132-2033

BRACKET ASM

$411.99

$

Usually ships in 3-6 days

0

31

Exmark 132-2662

KIT-BRAKE PAD (SET)

$

$

Not available

32

Exmark 132-3058

SCREW-HFH

$

$

Not available

33

Exmark 132-3039

DOT 4 BRAKE FLUID - 12 OZ

$36.99

$

In Stock, only 4 left!

0
