UTS700AAC00000 - Exmark 700S Utility Vehicle (2015) Rear Suspension Assembly Parts Diagram

700S Utility Vehicle

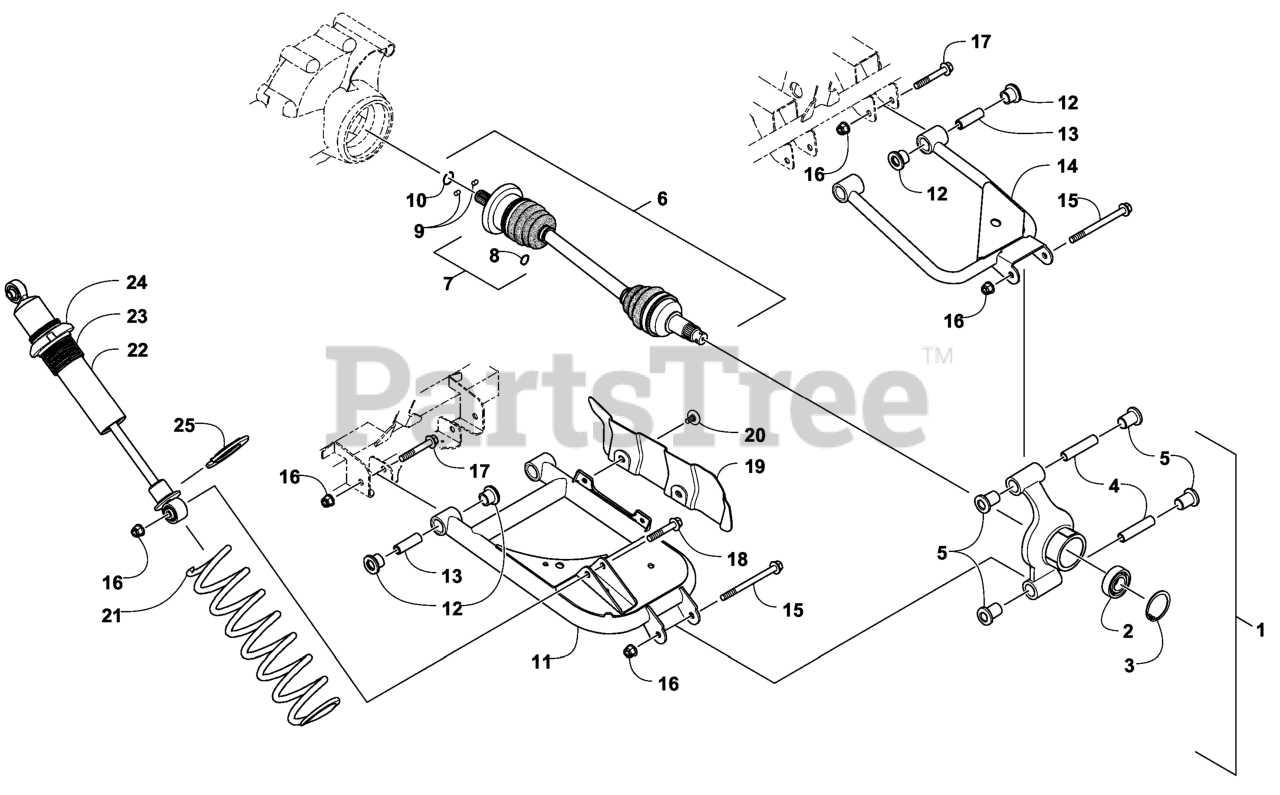

Rear Suspension Assembly Parts Diagram

  • Title

1

Exmark 132-2048

KNUCKLE-REAR ASM

Note: (inc. 2-5)

$

$

Not available

2

Exmark 132-2599

BEARING-WHEEL

$

$

Not available

3

Exmark 132-1923

RING-RETAINING

$10.99

$

Usually ships in 3-6 days

0

4

Exmark 132-1798

COLLAR-SUSPENSION BUSHING

$

$

Not available

5

Exmark 132-1796

BUSHING-SUSPENSION, REAR

$6.49

$

Usually ships in 3-6 days

0

6

Exmark 132-3215

AXLE-DRIVE, REAR

Note: (inc. 7-10)

$

$

Not available

7

Exmark 132-2661

KIT-CV BOOT, UNIVERSAL

Note: (inc. 8)

$

$

Not available

8

Exmark 132-2669

CIRCLI-HALFSHAFT, INTERNA

$

$

Not available

9

Exmark 132-2600

PIN-TRANSFER, LONG

$

$

Not available

10

Exmark 132-2603

CIRCLIP

$

$

Not available

11

Exmark 132-2046

A-ARM, REAR LOWER (RH ASM

Note: (inc. four No. 12 and two No. 13)

$

$

Not available

11

Exmark 132-2047

A-ARM, REAR LOWER (LH ASM

Note: (inc. four No. 12 and two No. 13)

$

$

Not available

12

Exmark 132-1797

BUSHING-SUSPENSION, A-ARM

$

$

Not available

13

Exmark 132-1799

COLLAR-SUSPENSION BUSHING

$

$

Not available

14

Exmark 132-2052

A-ARM, REAR UPPER (RH ASM

Note: (inc. four No. 12 and two No. 13)

$

$

Not available

14

Exmark 132-2053

A-ARM, REAR UPPER (LH ASM

Note: (inc. four No. 12 and two No. 13)

$

$

Not available

15

Exmark 1-323066

DISCONTINUED (EXMARK)

$

$

Not available

16

Exmark 1-323086

DISCONTINUED (EXMARK)

$

$

Not available

17

Exmark 132-3072

SCREW-HFH

$

$

Not available

18

Exmark 1-323071

SPRING-EXTENSION

$17.99

$

In Stock, Qty 9

0

19

Exmark 132-2612

GUARD-BOOT, REAR (RH)

$

$

Not available

19

Exmark 132-2613

GUARD-BOOT, REAR (LH)

$

$

Not available

20

Exmark 132-1936

SCREW-SELF TAP

$1.99

$

In Stock, only 3 left!

0

21

Exmark 132-2700

SPRING-COIL, REAR

$

$

Not available

22

Exmark 132-1803

REAR SHOCK ABSORBER ASM

Note: (inc. 4)

$1166.99

$

Usually ships in 3-6 days

0

23

Exmark 132-1961

TUBE-RETAINER, THREADED

$

$

Not available

24

Exmark 132-1962

NUT-RETAINER

$15.99

$

Usually ships in 3-6 days

0

25

Exmark 132-1963

RETAINER-SPRING

$

$

Not available
