UTS700AAC00000 - Exmark 700S Utility Vehicle (2015) Secondary Transmission Assembly Parts Diagram

700S Utility Vehicle

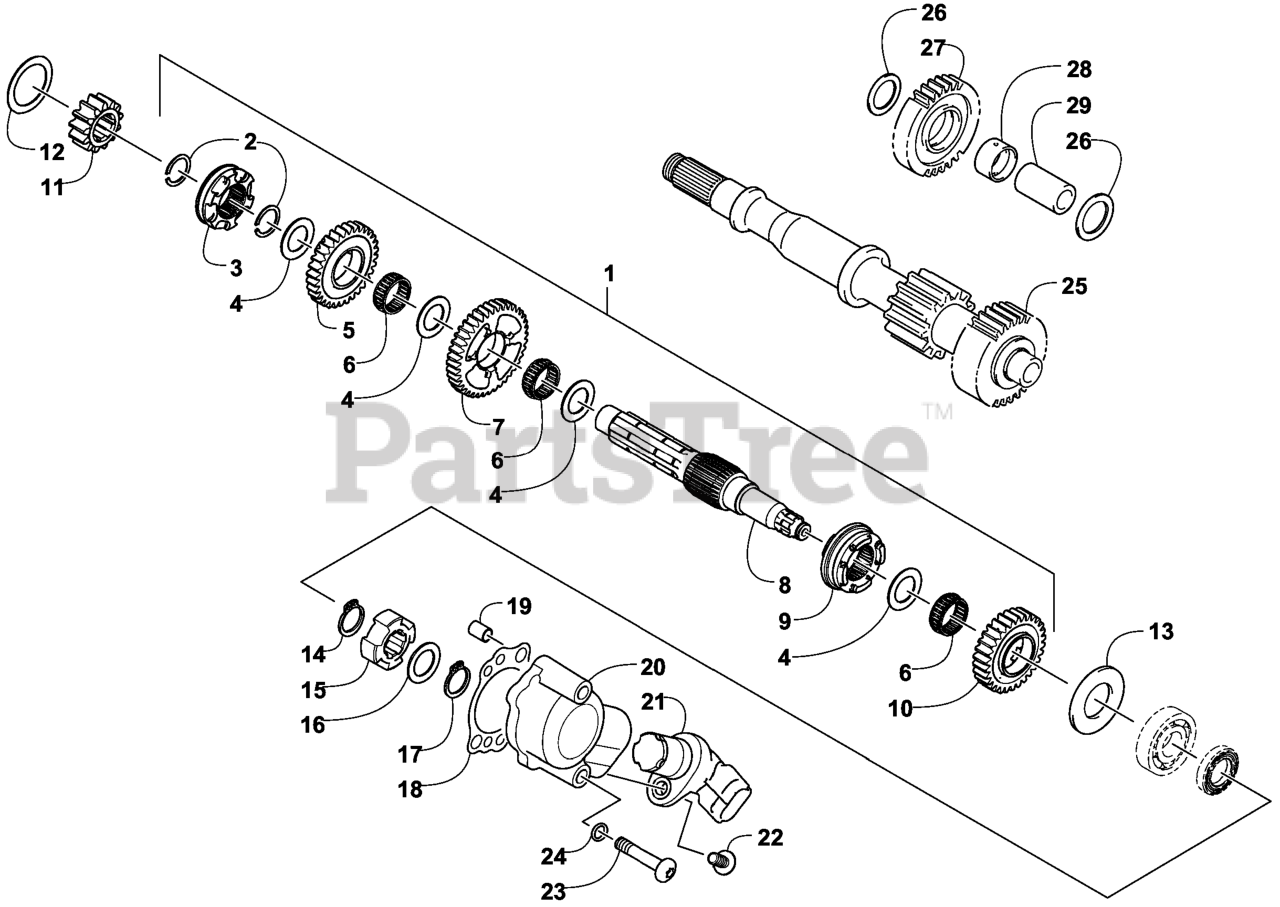

Secondary Transmission Assembly Parts Diagram

  • Title

1

Exmark 132-2310

COUNTERSHAFT ASM

Note: (inc. 2-10)

$

$

Not available

2

Exmark 132-2532

CIRLCLIP-SHAFT, EXTERNAL

$

$

Not available

3

Exmark 132-2305

DOG-SLIDING, REVERSE

$

$

Not available

4

Exmark 132-2306

SHIM-SPACER, DRIVE GEAR

$

$

Not available

5

Exmark 132-2304

GEAR-DRIVEN, REVERSE (32T

$

$

Not available

6

Exmark 132-2560

BEARING-NEEDLE, ROLLER

$

$

Not available

7

Exmark 132-2303

GEAR-DRIVEN, LOW (40T)

$

$

Not available

8

Exmark 132-2302

COUNTERSHAFT

$

$

Not available

9

Exmark 132-2311

DOG-SLIDING, FORWARD

$

$

Not available

10

Exmark 132-2312

GEAR-DRIVEN, HIGH (30T)

$

$

Not available

11

Exmark 132-2307

GEAR-SPUR, 13T-13T

$

$

Not available

12

Exmark 132-2411

WASHER-THRUST

$

$

Not available

13

Exmark 132-2409

WASHER-STEEL

$

$

Not available

14

Exmark 132-2527

RING-RETAINING, EXTERNAL

$

$

Not available

15

Exmark 132-2293

TRIGGER-SENSOR, SPEEDO

$

$

Not available

16

Exmark 132-2428

WASHER-THRUST

$

$

Not available

17

Exmark 132-2526

RING-RETAINING, EXTERNAL

$

$

Not available

18

Exmark 132-2489

GASKET-ODOMETER DRIVE

$

$

Not available

19

Exmark 132-2452

PIN-SOLID DOWEL

$

$

Not available

20

Exmark 132-2292

HOUSING-SPEEDO SENSOR

$

$

Not available

21

Exmark 132-3202

SENSOR-SPEEDOMETER

$107.99

$

Usually ships in 3-6 days

0

22

Exmark 1-323091

DISCONTINUED (EXMARK)

$

$

Not available

23

Exmark 1-323095

DISCONTINUED (EXMARK)

$

$

Not available

24

Exmark 132-2484

SEAL-FASTENER

$

$

Not available

25

Exmark 132-2283

DRIVESHAFT

$

$

Not available

26

Exmark 132-2410

WASHER-THRUST

$

$

Not available

27

Exmark 132-2285

GEAR-REVERSE IDLE

$

$

Not available

28

Exmark 132-2286

BUSHING-GEAR, REVERSE IDL

$

$

Not available

29

Exmark 132-2287

SHAFT-REVERSE IDLE

$

$

Not available
