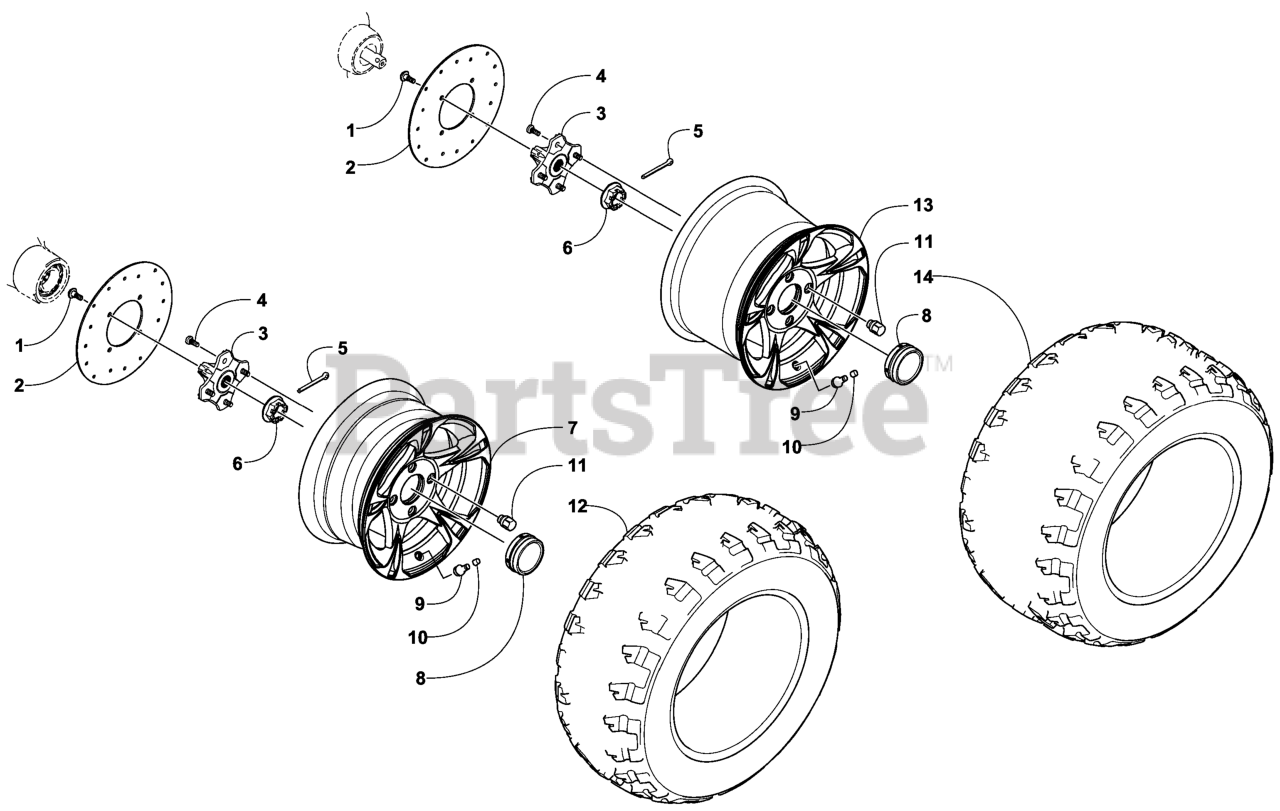

UTS700AAC00000 - Exmark 700S Utility Vehicle (2015) Wheel And Tire Assembly Parts Diagram

700S Utility Vehicle

Wheel And Tire Assembly Parts Diagram

  • Title

1

Exmark 132-1939

SCREW-SHOULDER

$1.49

$

Usually ships in 3-6 days

0

2

Exmark 132-2660

KIT-BRAKE DISC

Note: 10 inch

$

$

Not available

2

Exmark 132-2656

KIT-DISC, BRAKE

Note: 8 inch

$

$

Not available

3

Exmark 132-2679

HUB ASM

Note: (inc. 4)

$297.99

$

Usually ships in 3-6 days

0

3

Exmark 132-2681

HUB ASM

Note: (inc. 4)

$

$

Not available

4

Exmark 132-1788

STUD-WHEEL

$8.49

$

Usually ships in 3-6 days

0

5

Exmark 132-1917

PIN-COTTER

$1.49

$

In Stock, only 1 left!

0

6

Exmark 132-1944

NUT-HHF, CASTLE

$

$

Not available

7

Exmark 132-2723

WHEEL-FRONT

Note: (inc. 8)

$497.99

$

Usually ships in 3-6 days

0

8

Exmark 132-2725

CAP-WHEEL

$

$

Not available

9

Exmark 132-1760

VALVE STEM

Note: (inc. 10)

$8.99

$

Usually ships in 3-6 days

0

10

Exmark 132-1761

CAP-VALVE STEM
(Superseded to 132-1760)

$8.99

$

Usually ships in 3-6 days

0

11

Exmark 132-1947

NUT-LUG

$8.99

$

Usually ships in 3-6 days

0

12

Exmark 132-2606

TIRE (26 X 9 R14)

$

$

Not available

13

Exmark 132-2724

WHEEL-REAR

Note: (inc. 8)

$497.99

$

Usually ships in 3-6 days

0

14

Exmark 132-2607

TIRE (26 X 11 R14)

$558.99

$

Usually ships in 3-6 days

0
