UVD60 (UVD6672) - Exmark Ultra Vac Bagger for Lazer Z Mower (SN: 316000000 - 399999999) (2016) Weight And Belt Drive Components LAZER XP 72" Parts Diagram

Ultra Vac Bagger for Lazer Z Mower

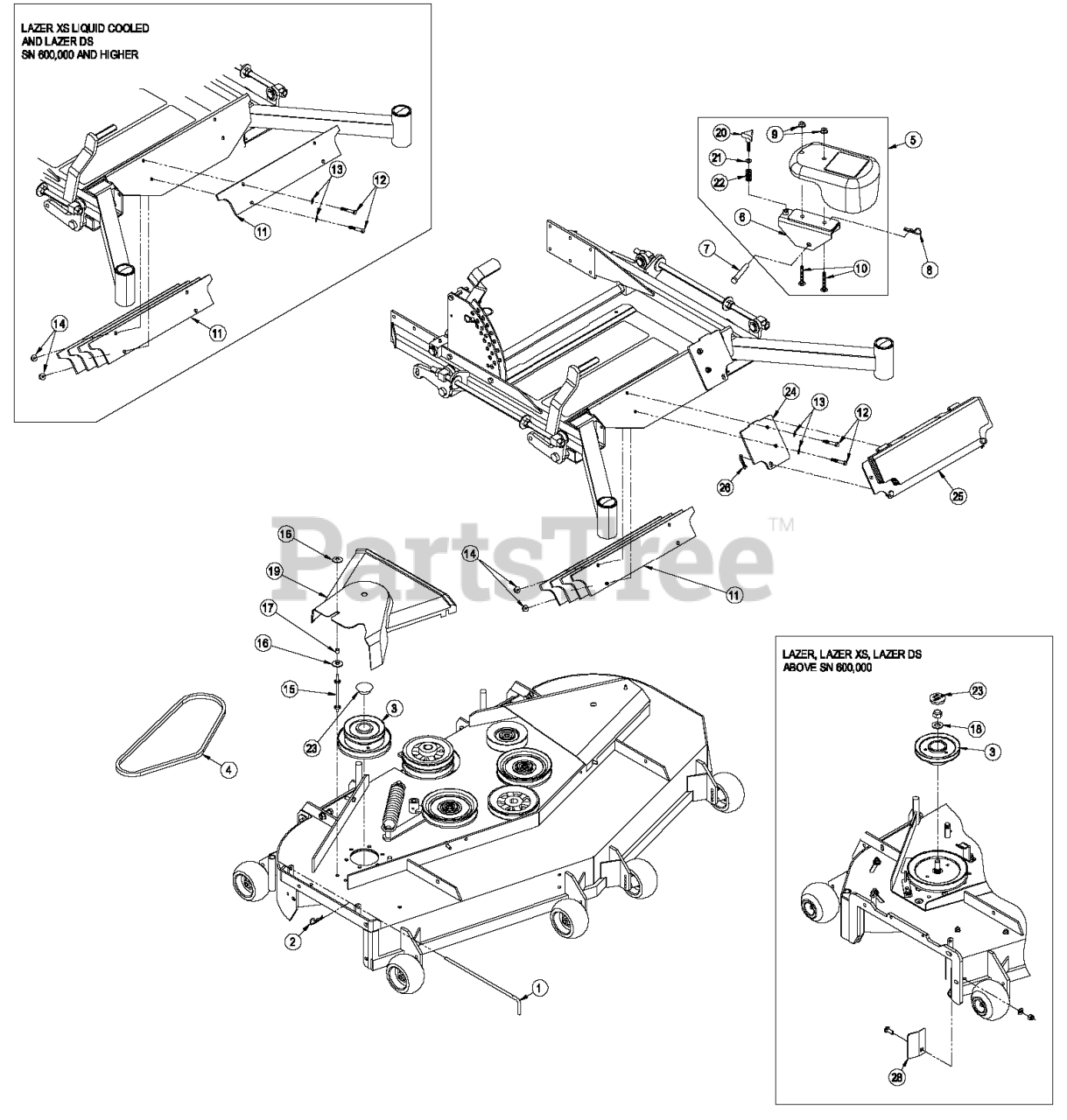

Weight And Belt Drive Components LAZER XP 72" Parts Diagram

  • Title

1

Exmark 109-3458

PIN,CHUTE PIVOT

$19.99

$

Usually ships in 3-6 days

0

2

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

3

Exmark 103-2796

JACKSHAFT, LZUV72

$

$

Not available

Exmark 109-1231

SHEAVE

$280.99

$

Usually ships in 3-6 days

0

4

Exmark 103-0867

BELT, BLOWER DRIVE 72
(Superseded to 103-0867-SL)

$42.99

$

In Stock, only 1 left!

0

Exmark 109-1244

BELT,4L 50.90

$

$

Not available

5

Exmark 103-0899

ASM, WEIGHT 1.5" 70 POUND

Note: Includes items 6, 9, 10, 19, 20, 21 weight and decal

$

$

Not available

Exmark 103-0900

ASM, WEIGHT 2.0" 70 POUND

$

$

Not available

Exmark 103-0901

ASM, WEIGHT 1.5" 43 POUND

$

$

Not available

Exmark 103-0902

ASM, WEIGHT 2.0" 43 POUND

$576.99

$

Usually ships in 3-6 days

0

6

Exmark 103-2180-01

WLD, BRACKET 2.0 ARM

$104.99

$

Usually ships in 3-6 days

0

Exmark 103-2181-01

WLD, BRACKET 1.5 ARM

$

$

Not available

7

Exmark 283-69

PIN-CLEVIS

$11.99

$

Usually ships in 3-6 days

0

8

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

9

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Exmark 103-2500

BOLT-SQH

$2.99

$

Usually ships in 3-6 days

0

Exmark 103-2189

BOLT, SQUARE HEAD YZ

$6.49

$

Usually ships in 3-6 days

0

11

Exmark 103-1425-01

PLATE, WEIGHT

$52.99

$

Usually ships in 3-6 days

0

12

Exmark 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

13

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Exmark 103-1028

STUD,BELT SHIELD 4 INCH

$27.99

$

Usually ships in 3-6 days

0

16

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

17

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

18

Exmark 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

19

Exmark 103-0736

COVER, BELT 72

$

$

Not available

Exmark 109-1173

COVER, BELT 72

$

$

Not available

20

Exmark 103-2187

KNOB

$7.99

$

In Stock, Qty 6

0

21

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Exmark 103-2188

SPRING

$7.99

$

In Stock, Qty 6

0

23

Exmark 103-1279

PLUG, BLACK NYLON 1.75

$13.99

$

Usually ships in 3-6 days

0

24

Exmark 103-5856-01

PLATE, WEIGHT MOUNTING

$

$

Not available

25

Exmark 103-5866

ASM, WEIGHT PLATE WITH DE

$

$

Not available

26

Exmark 9335124

PIN-HAIR

$2.99

$

In Stock, only 1 left!

0

27

Exmark 103-5865

Template, Drill

Note: Item not shown. Use to drill holes for floorpan weights

$

$

Currently unavailable

28

Exmark 109-2977-01

DEFLECTOR,LZ UV

$32.99

$

Usually ships in 3-6 days

0
