V52-16BV-H - Exmark 52" Viking Walk-Behind Mower, 16hp Briggs & Stratton (SN: 102000 - 114999) (1995) Hydraulics Group Parts Diagram

52" Viking Walk-Behind Mower, 16hp Briggs & Stratton

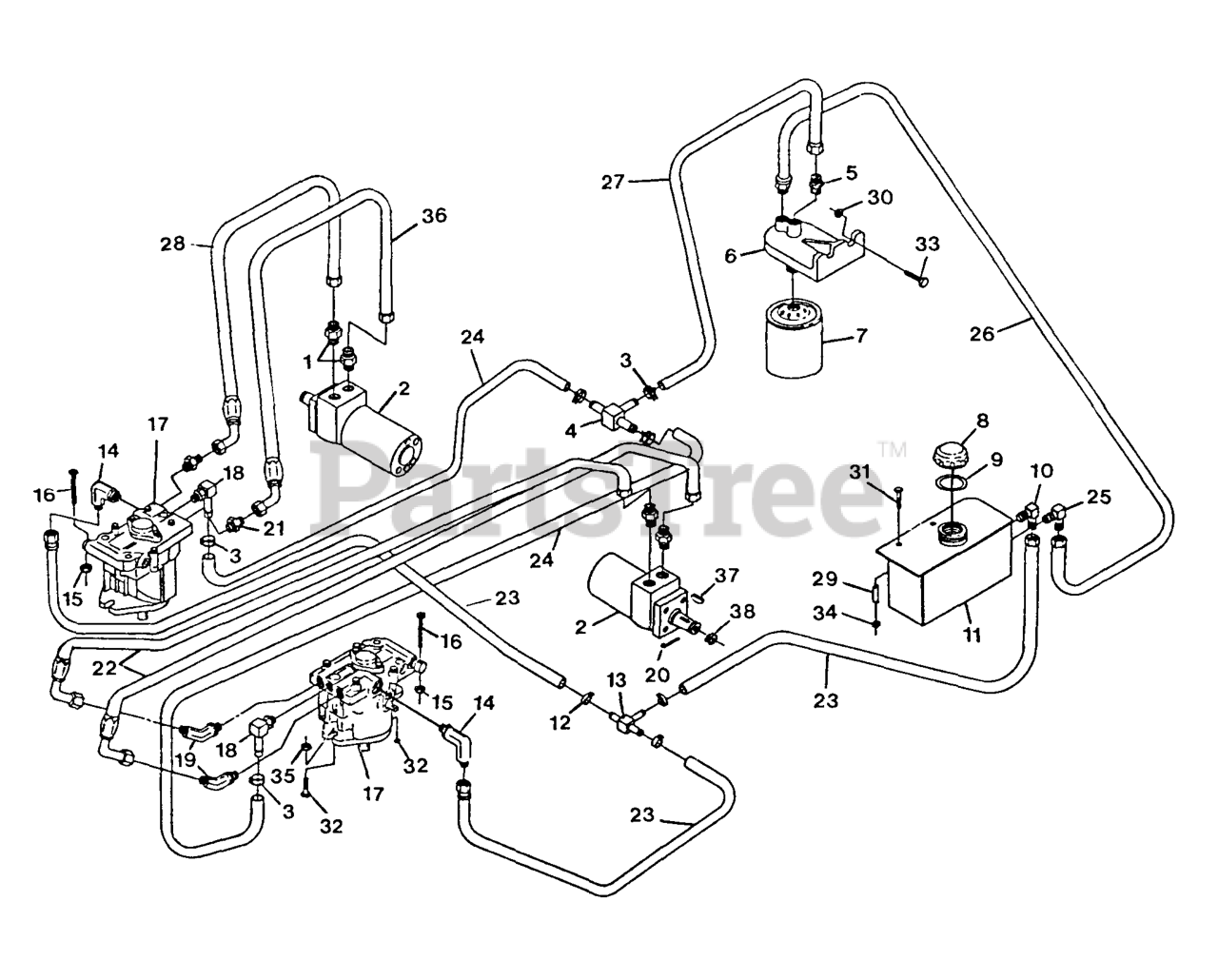

Hydraulics Group Parts Diagram

  • Title

1

Exmark 1-603991

FITTING-STRAIGHT

$25.99

$

In Stock, only 4 left!

0

Exmark 1-603919

O-RING

$3.99

$

In Stock, Qty 13

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

2

Exmark 1-603718

HYD MOTOR ASM

$1243.99

$

Usually ships in 3-6 days

0

3

Exmark 1-603827

CLAMP-HOSE

$2.99

$

Usually ships in 3-6 days

0

4

Exmark 1-603721

FITTING-TEE, HOSE

$

$

Not available

5

Exmark 1-513510

FITTING-STRAIGHT

Note: Use Teflon Pipe Sealant or equivalent on hydraulic reservoir and filter head fittings.

$13.99

$

Usually ships in 3-6 days

0

6

Exmark 1-603720

DISCONTINUED

$

$

Not available

7

Exmark 1-513211

109-4180
(Superseded to 109-4180)

$53.99

$

In Stock, Qty 15

0

8

Exmark 1-513167

CAP

$32.99

$

In Stock, Qty 10

0

9

Exmark 1-523103

GASKET-CAP, TANK

$7.99

$

In Stock, Qty 7

0

10

Exmark 1-603987

FITTING-ELBOW

Note: Use Teflon Pipe Sealant or equivalent on hydraulic reservoir and filter head fittings.

$25.99

$

Usually ships in 3-6 days

0

11

Exmark 1-512166-03

DISCONTINUED

$

$

Not available

12

Exmark 1-603826

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

13

Exmark 1-603722

FITTING-TEE, HOSE

$28.99

$

Usually ships in 3-6 days

0

14

Exmark 1-513840

FITTING-90 DEG

$29.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

15

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

16

Exmark 1-801060

DISCONTINUED (EXMARK)

$

$

Not available

17

Exmark 1-613042

PUMP

$1566.99

$

Usually ships in 3-6 days

0

18

Exmark 1-603989

FITTING

$42.99

$

Usually ships in 3-6 days

0

Exmark 1-603923

O-RING

$3.49

$

Usually ships in 3-6 days

0

19

Exmark 1-523221

FITTING-HYD, 45 DEG

$54.99

$

Usually ships in 3-6 days

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

Exmark 1-603920

O-RING

Note: This part is used in other locations.

$3.99

$

In Stock, Qty 20+

0

20

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

21

Exmark 1-603990

FITTING-STRAIGHT

$19.99

$

In Stock, only 4 left!

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

22

Exmark 1-323241

HOSE-PRESSURE, HIGH

$96.99

$

Usually ships in 3-6 days

0

23

Exmark 1-602750

ASM,HOSE CASE DRAIN

$56.99

$

Usually ships in 3-6 days

0

24

Exmark 1-303526

DISCONTINUED (EXMARK)

$

$

Not available

25

Exmark 1-603988

FITTING-ELBOW

Note: Use Teflon Pipe Sealant or equivalent on hydraulic reservoir and filter head fittings.

$

$

Not available

26

Exmark 1-602985

ASM,HOSE LO PRESSURE

$71.99

$

In Stock, only 2 left!

0

27

Exmark 1-602754

ASM,HOSE CHARGE LINE

$

$

Not available

28

Exmark 1-523210

DISCONTINUED

$

$

Not available

29

Exmark 1-323218

DISCONTINUED

$

$

Not available

30

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

31

Exmark 1-800258

321-11
(Superseded to 321-11)

$0.99

$

In Stock, Qty 10

0

32

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

33

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

34

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 20+

0

35

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

36

Exmark 1-523210

DISCONTINUED

Note: (36" deck)

$

$

Not available

Exmark 1-403102

HOSE-PRESSURE, HIGH

Note: (48" & 52" decks)

$136.99

$

In Stock, only 2 left!

0

37

Exmark 1-807019

KEY-WOODRUFF

$20.99

$

Usually ships in 3-6 days

0

38

Exmark 1-809068

DISCONTINUED (EXMARK)

$

$

Not available
