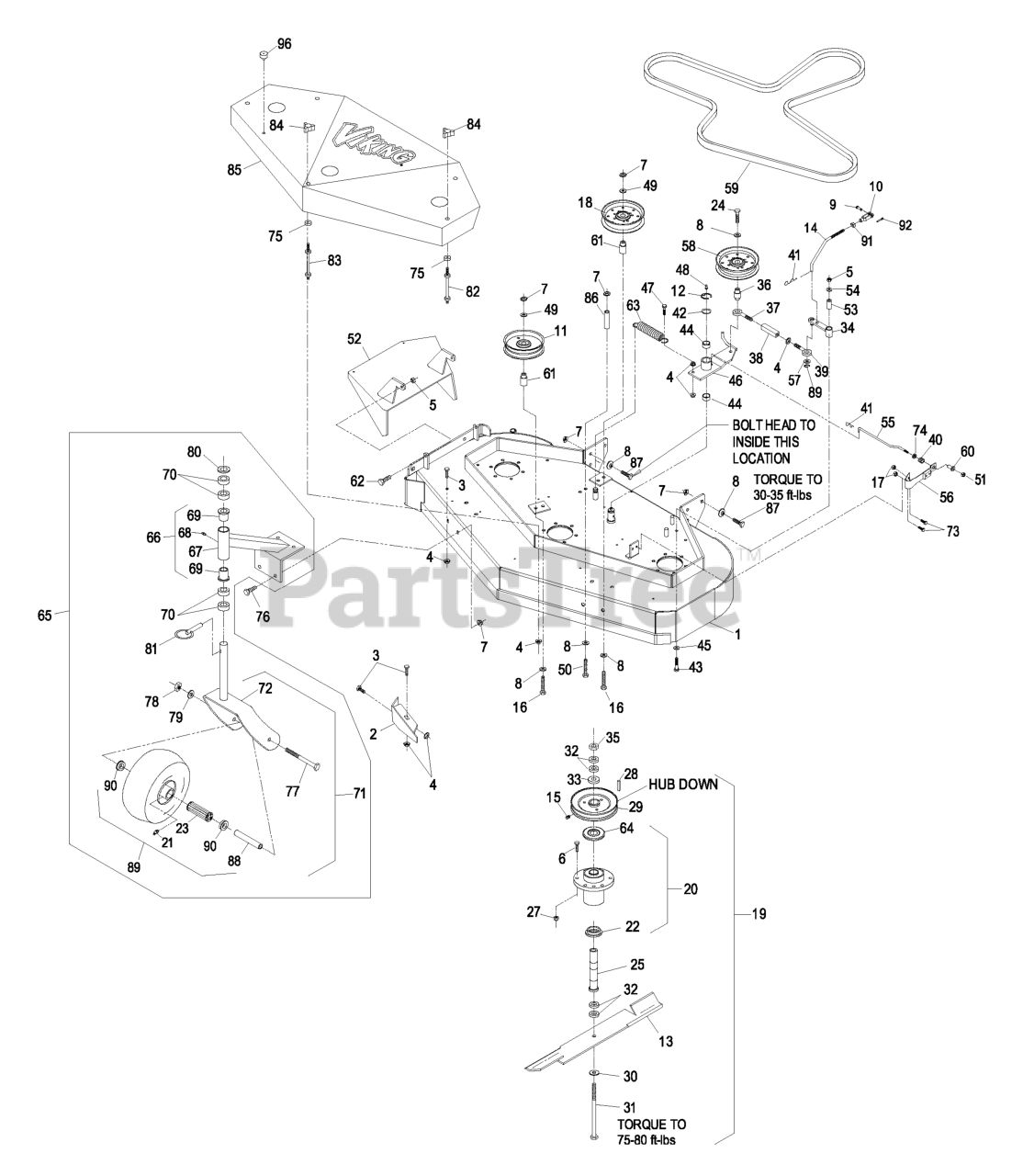

Exmark VH15KA362 - Exmark 36" Viking Hydro Walk-Behind Mower, 15hp Kawasaki (SN: 670000 - 719999) (2007) Mower Deck 48" Parts Lookup with Diagrams

1

Exmark 109-2601

1-404257

(Superseded to 1-404257) 

$2984.99

$

Usually ships in 3-6 days

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

9

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

13

Exmark 103-6583

103-6583-S

(Superseded to 103-6583-S) 

$35.99

$

In Stock, Qty 20+

Exmark 103-6581

103-6581-S

(Superseded to 103-6581-S) 

Note: Requires installation of Micro-Mulch accessory for proper mulching Mulch kit P/N's MK483

$37.99

$

In Stock, Qty 7

Exmark 103-2507

103-6738-S

(Superseded to 103-6738-S) 

$39.99

$

In Stock, only 4 left!

Exmark 103-1577

103-1577-S

(Superseded to 103-1577-S) 

$45.99

$

In Stock, Qty 5

Exmark 103-6336

116-5178-S

(Superseded to 116-5178-S) 

$39.99

$

In Stock, Qty 6

14

Exmark 1-323174

ARM-LINKAGE, ASSIST

$34.99

$

Usually ships in 3-6 days

15

Exmark 1-803310

SCREW-SET

Note: Use Pro-lock Nut Type (p/n 1-840022 5 ml tube) on the setscrews

$2.99

$

Usually ships in 3-6 days

16

Exmark 1-403186

126-9187

(Superseded to 126-9187) 

$66.99

$

In Stock, only 1 left!

19

Exmark 103-8387

ASM, CUTTER HOUSING OUTER

$649.99

$

Usually ships in 3-6 days

20

Note: Apply Mobil HTS grease (P/N 103-5217 15 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard DO NOT use a copper or nickel based anti-sieze

$298.99

$

In Stock, Qty 17

21

Exmark 302-61

FITTING-GREASE

$12.99

$

In Stock, only 2 left!

22

Exmark 103-2535

SPACER-GUARD, BOTTOM

$13.99

$

In Stock, only 2 left!

23

Exmark 1-513809

BEARING

$39.99

$

In Stock, Qty 12

24

Exmark 702809

SCREW-HH

$5.99

$

In Stock, only 2 left!

25

Exmark 1-323529

TUBE-SPINDLE, SHORT

Note: Apply Mobil HTS grease (P/N 103-5217 15 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard DO NOT use a copper or nickel based anti-sieze

$101.99

$

In Stock, only 2 left!

26

Exmark 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, Qty 20+

27

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

28

Exmark 1-807267

KEY

$2.99

$

In Stock, Qty 9

29

Exmark 1-403183

SHEAVE

Note: Apply Mobil HTS grease (P/N 103-5217 15 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard DO NOT use a copper or nickel based anti-sieze

$76.99

$

In Stock, only 2 left!

30

Exmark 1-513208

WASHER-SPRING

$10.99

$

Usually ships in 3-6 days

31

Exmark 1-800861

SCREW-CAP, HH

$21.99

$

In Stock, only 4 left!

32

Exmark 1-323539

SPACER

$2.99

$

In Stock, Qty 20+

33

Exmark 1-323339

WASHER-RETAINER, SHEAVE

$5.99

$

In Stock, Qty 20+

34

Exmark 1-322235

$145.99

$

Usually ships in 3-6 days

47

Exmark 322-6

$2.49

$

In Stock, Qty 20+

58

Exmark 1-603843

132-4718

(Superseded to 132-4718) 

$36.99

$

In Stock, Qty 20+

59

Exmark 1-403174

BELT,BLADE 48

(Superseded to 1-403174-SL) 

$103.99

$

In Stock, Qty 11

60

Exmark 1-323746

SPACER-FLANGED

$1.49

$

In Stock, only 3 left!

61

Exmark 1-403184

1-413113

(Superseded to 1-413113) 

$6.49

$

In Stock, Qty 20+

62

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

63

Exmark 1-323071

SPRING-EXTENSION

$17.99

$

In Stock, Qty 9

64

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 15 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard DO NOT use a copper or nickel based anti-sieze

$5.99

$

In Stock, Qty 20+
