VH3215KCC - Exmark 32" Viking Hydro Walk-Behind Mower, 15hp Kohler (SN: 370000 - 439999) (2003) 32" & 36" Mower Deck Parts Diagram

32" Viking Hydro Walk-Behind Mower, 15hp Kohler

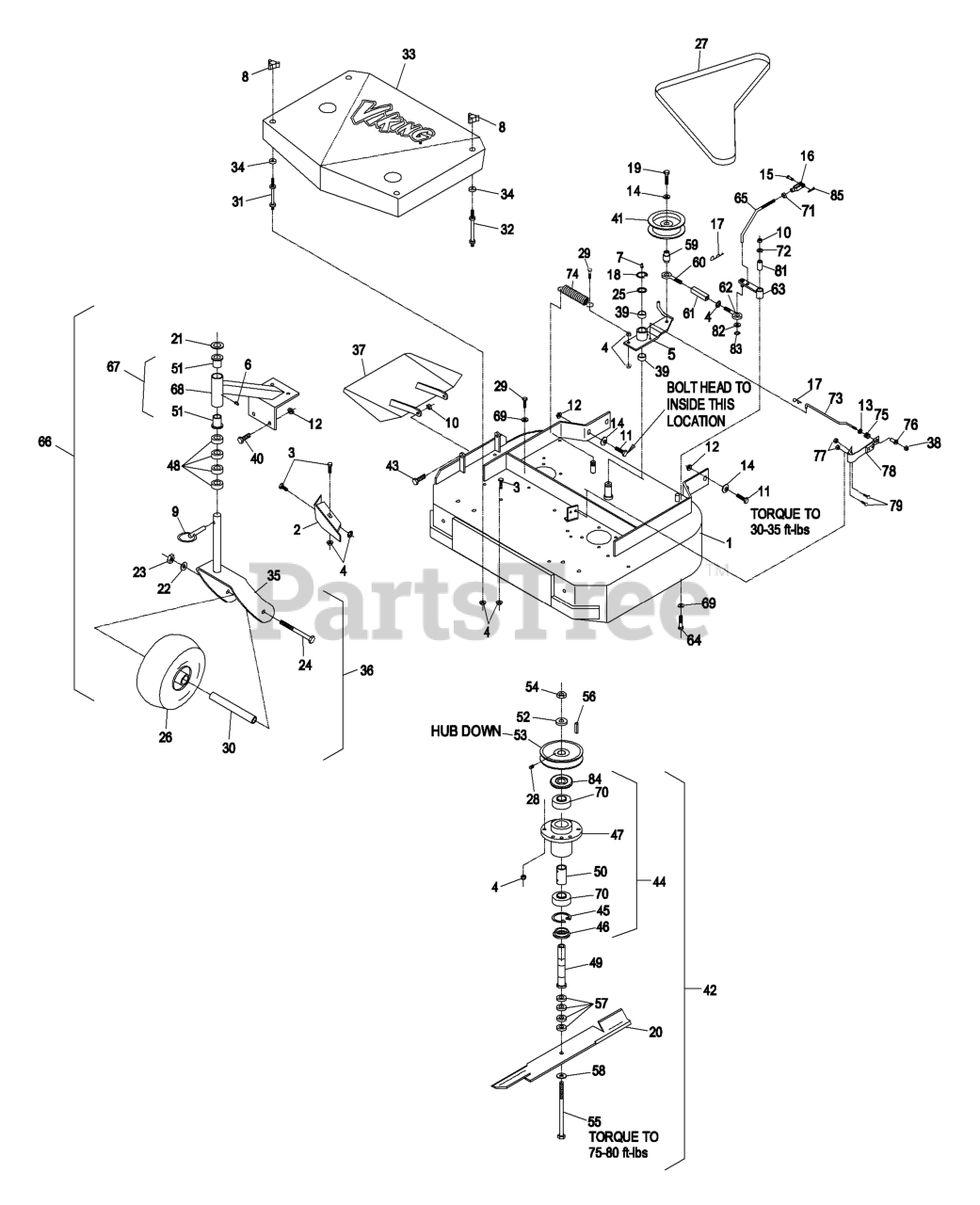

32" & 36" Mower Deck Parts Diagram

  • Title

1

Exmark 103-2312

ASM,DECK 36 RIGID

$2992.99

$

Usually ships in 3-6 days

0

Exmark 103-2313

ASM, DECK 32 RIGID

$3242.99

$

Usually ships in 3-6 days

0

2

Exmark 1-302189-01

BAFFLE-DOGLEG

$60.99

$

Usually ships in 3-6 days

0

3

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

4

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Exmark 1-324408

103-3600
(Superseded to 103-3600)

$145.99

$

Usually ships in 3-6 days

0

6

Exmark 302-52

FITTING-GREASE

$7.49

$

In Stock, Qty 19

0

7

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

8

Exmark 1-323385

KNOB-3 PRONG

$5.99

$

In Stock, Qty 20+

0

9

Exmark 1-809020

PIN

$12.99

$

In Stock, only 2 left!

0

10

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

13

Exmark 1-323748

RING-PUSH ON

$1.99

$

In Stock, Qty 10

0

14

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

15

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

16

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, Qty 7

0

17

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

18

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

19

Exmark 702809

SCREW-HH

$5.99

$

In Stock, only 2 left!

0

20

Exmark 103-2528

103-6584-S
(Superseded to 103-6584-S)

$35.99

$

In Stock, Qty 20+

0

Exmark 103-2518

103-6582-S
(Superseded to 103-6582-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N's MK322(32") or MK362(36")

$39.99

$

In Stock, Qty 20+

0

Exmark 103-2508

103-6580-S
(Superseded to 103-6580-S)

Note: Optional

$37.99

$

In Stock, Qty 9

0

Exmark 103-1578

103-1578-S
(Superseded to 103-1578-S)

$41.99

$

In Stock, Qty 9

0

Exmark 103-2527

103-6583-S
(Superseded to 103-6583-S)

$35.99

$

In Stock, Qty 20+

0

Exmark 103-2517

103-6581-S
(Superseded to 103-6581-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N's MK322(32") or MK362(36")

$37.99

$

In Stock, Qty 7

0

Exmark 103-2507

103-6738-S
(Superseded to 103-6738-S)

Note: Optional

$39.99

$

In Stock, only 4 left!

0

Exmark 103-1577

103-1577-S
(Superseded to 103-1577-S)

$45.99

$

In Stock, Qty 5

0

21

Exmark 1-513338

WASHER-FLAT

$4.99

$

In Stock, Qty 20+

0

22

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

23

Exmark 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

0

24

Exmark 325-20

SCREW-HH

$8.49

$

In Stock, Qty 10

0

25

Exmark 1-303352

WASHER-SPINDLE

$2.99

$

In Stock, Qty 7

0

26

Exmark 103-1224

103-2171
(Superseded to 103-2171)

$141.99

$

In Stock, Qty 18

0

Exmark 1-513809

BEARING

$39.99

$

In Stock, Qty 13

0

Exmark 103-2170

BUSHING, SP CASTER

$9.49

$

In Stock, only 2 left!

0

27

Exmark 1-323735

BELT,BLADE VIKING HYD 36
(Superseded to 1-323735-SL)

$100.99

$

In Stock, Qty 7

0

Exmark 1-323733

BELT,BLADE METRO 36
(Superseded to 1-323733-SL)

$85.99

$

In Stock, Qty 15

0

28

Exmark 1-803310

SCREW-SET

Note: Use Pro-Lock Nut Type (p/n 1-840022 .5 ml tube) on the setscrew.

$2.99

$

Usually ships in 3-6 days

0

29

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

30

Exmark 103-2169

SPACER FRONT CASTER

$15.99

$

In Stock, Qty 5

0

31

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.99

$

In Stock, Qty 9

0

32

Exmark 1-303536

STUD-SHIELD, BELT (LONG)

$8.49

$

In Stock, Qty 20+

0

33

Exmark 1-302218

116-2704
(Superseded to 116-2704)

$492.99

$

Usually ships in 3-6 days

0

Exmark 103-2589

DISCONTINUED

$

$

Not available

34

Exmark 1-323417

WASHER

$3.99

$

In Stock, Qty 20+

0

35

Exmark 1-322145-01

116-7942-01
(Superseded to 116-7942-01)

$108.99

$

In Stock, only 2 left!

0

36

Exmark 103-1236

ASM,CASTER/WHEEL

$233.99

$

Usually ships in 3-6 days

0

37

Exmark 1-302233-01

WLD,CHUTE 36 RIGID

$203.99

$

In Stock, only 1 left!

0

38

Exmark 3296-56

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

39

Exmark 1-323729

SLEEVE-BEARING

$5.99

$

In Stock, Qty 20+

0

40

Exmark 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

41

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$36.99

$

In Stock, Qty 20+

0

42

Exmark 103-2555

103-8387
(Superseded to 103-8387)

$649.99

$

Usually ships in 3-6 days

0

43

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

44

Exmark 103-2547

103-8280
(Superseded to 103-8280)

$298.99

$

In Stock, Qty 17

0

45

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

46

Exmark 103-2535

SPACER-GUARD, BOTTOM

$13.99

$

In Stock, only 2 left!

0

47

Exmark 1-323532

103-8280
(Superseded to 103-8280)

$298.99

$

In Stock, Qty 17

0

48

Exmark 1-303314

SPACER-CASTER

$6.99

$

In Stock, Qty 20+

0

49

Exmark 1-323529

TUBE-SPINDLE, SHORT

Note: Apply Mobil HTS grease (or a food-grade antiseize) between the spindles & bearings and spindles & sheaves.

$101.99

$

In Stock, only 2 left!

0

50

Exmark 103-2534

SPACER-BEARING

$9.49

$

In Stock, only 3 left!

0

51

Exmark 1-303514

BEARING-FLANGED

$13.99

$

Usually ships in 3-6 days

0

52

Exmark 1-323339

WASHER-RETAINER, SHEAVE

$5.99

$

In Stock, Qty 20+

0

53

Exmark 1-403183

SHEAVE

Note: Apply Mobil HTS grease (or a food-grade antiseize) between the spindles & bearings and spindles & sheaves.

$76.99

$

In Stock, only 2 left!

0

54

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

55

Exmark 1-800861

SCREW-CAP, HH

$21.99

$

In Stock, only 4 left!

0

56

Exmark 1-807267

KEY

$2.99

$

In Stock, Qty 9

0

57

Exmark 1-323539

SPACER

$2.99

$

In Stock, Qty 20+

0

58

Exmark 1-513208

WASHER-SPRING

$10.99

$

Usually ships in 3-6 days

0

59

Exmark 1-303434

BUSHING-ENGAGEMENT

$15.99

$

In Stock, Qty 18

0

60

Exmark 1-303348

EYEBOLT-THREAD, LH

$6.99

$

In Stock, only 3 left!

0

61

Exmark 1-303236

BODY-TURNBUCKLE

$24.99

$

In Stock, only 2 left!

0

62

Exmark 1-303238

EYEBOLT-THREAD, RH

$6.99

$

In Stock, Qty 9

0

63

Exmark 1-322235

ARM-ASSIST, 32/36

$59.99

$

In Stock, only 1 left!

0

64

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

65

Exmark 1-323174

ARM-LINKAGE, ASSIST

$34.99

$

Usually ships in 3-6 days

0

66

Exmark 103-2281

116-8245
(Superseded to 116-8245)

$878.99

$

Usually ships in 3-6 days

0

67

Exmark 103-2296

ASM,CSTR SUPPORT W/WEIGHT

$364.99

$

In Stock, only 1 left!

0

68

Exmark 103-2297-01

103-2296
(Superseded to 103-2296)

$364.99

$

In Stock, only 1 left!

0

69

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

70

Exmark 103-2477

BEARING-JACKSHAFT

Note: Apply Mobil HTS grease (or a food-grade antiseize) between the spindles & bearings and spindles & sheaves.

$67.99

$

In Stock, Qty 9

0

71

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

72

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

73

Exmark 1-323715

ROD-BRAKE

$29.99

$

In Stock, Qty 5

0

Exmark 1-323718

ROD-BRAKE

$29.99

$

Usually ships in 3-6 days

0

74

Exmark 1-323071

SPRING-EXTENSION

$17.99

$

In Stock, Qty 9

0

75

Exmark 1-323747

SPRING-COMPRESSION

$3.99

$

In Stock, Qty 11

0

76

Exmark 1-323746

SPACER-FLANGED

$1.49

$

In Stock, only 3 left!

0

77

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

78

Exmark 1-324372

PAD AND SPRING ASM

$77.99

$

In Stock, Qty 6

0

79

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

81

Exmark 1-403179

TUBE-PIVOT

$19.99

$

In Stock, only 2 left!

0

82

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

83

Exmark 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, Qty 20+

0

84

Exmark 103-1330

GUARD-BEARING, TOP

$5.99

$

In Stock, Qty 20+

0

85

Exmark 3272-5

PIN-COTTER

$1.99

$

In Stock, Qty 11

0

86

Exmark 103-2171

KIT, SP CASTER WHEEL REPL

Note: Kit 103-2171 used to install semi-pneumatic casters on machines originally fitted with pneumatic casters. Includes 103-1224 & 103-2169. Order 2 per machine.

$141.99

$

In Stock, Qty 18

0
