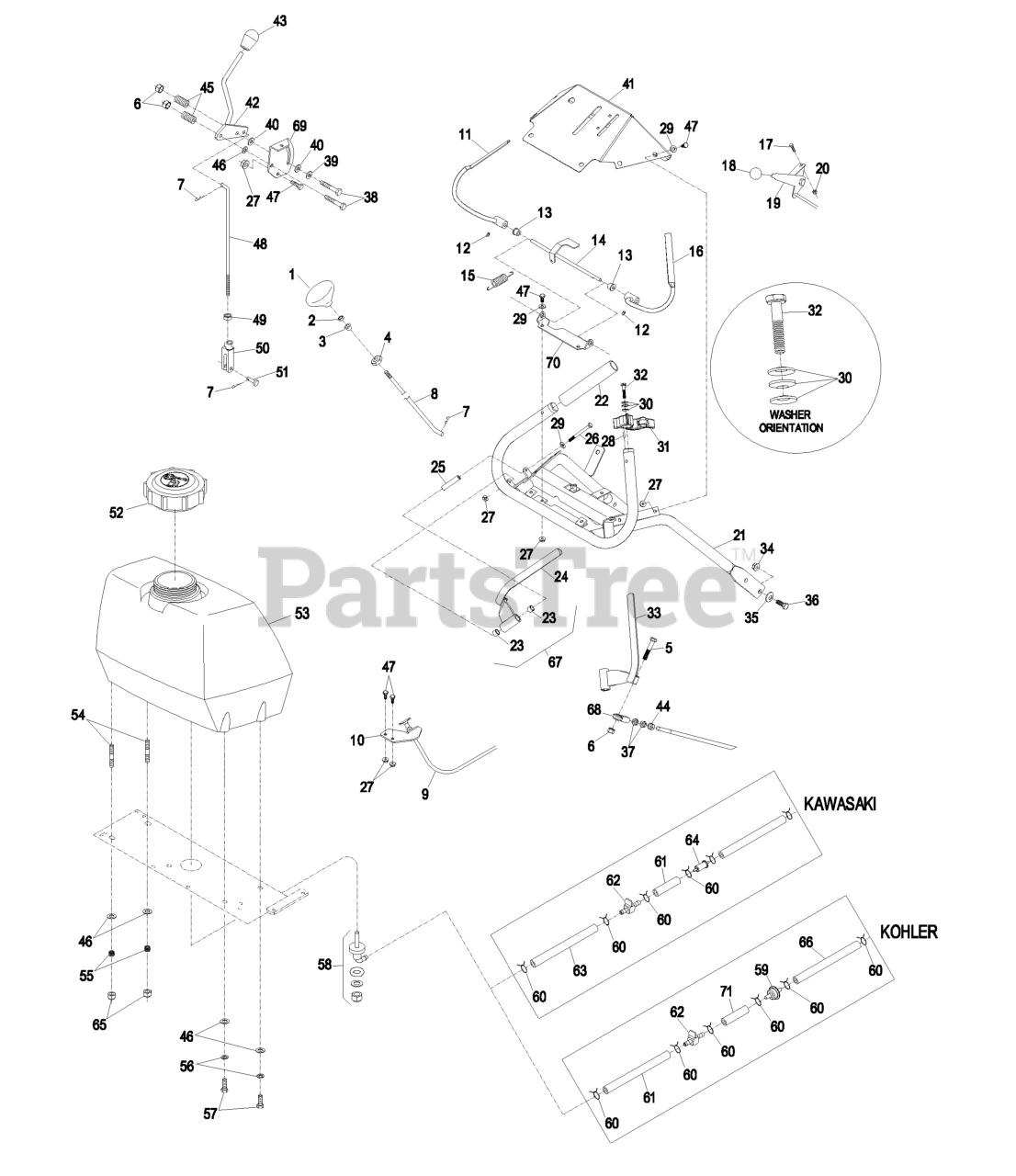

Exmark VH3215KCC - Exmark 32" Viking Hydro Walk-Behind Mower, 15hp Kohler (SN: 370000 - 439999) (2003) ECS Upper Handle And Controls Parts Lookup with Diagrams

1

Exmark 1-323134

KNOB-PUSH / PULL

$31.99

$

Usually ships in 3-6 days

2

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

3

Exmark 1-323143

BEARING-NYLON

$7.49

$

In Stock, only 4 left!

4

Exmark 1-323142

NUT-PUSH

$2.99

$

Usually ships in 3-6 days

5

Exmark 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

6

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

7

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

8

Exmark 103-2193

LINKAGE,BLADE PUSH/PULL

$28.99

$

Usually ships in 3-6 days

9

Exmark 103-1796

CABLE-CHOKE

Note: For 15 HP Kawasaki units with separate choke control - Engine Code FH451V - BS04 (36" units - S/N 345,496 & higher; 48" units - S/N 346,717 & higher)

$55.99

$

In Stock, Qty 13

10

Exmark 103-1797-01

BRACKET-CABLE, CHOKE

Note: For 15 HP Kawasaki units with separate choke control - Engine Code FH451V - BS04 (36" units - S/N 345,496 & higher; 48" units - S/N 346,717 & higher)

$10.99

$

In Stock, only 1 left!

11

Exmark 103-1566-03

116-4079

(Superseded to 116-4079) 

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs going into tank.

$42.99

$

In Stock, Qty 12

12

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock nut type, Part no. 1-840022 (.5cc tube) on setscrew threads and on thumblatch screws.

$1.49

$

In Stock, Qty 20+

13

Exmark 1-303365

BUSHING-NYLON

$5.99

$

In Stock, Qty 20+

14

Exmark 103-0769-03

WLD,OPC LEVER AXLE

$52.99

$

In Stock, Qty 20+

15

Exmark 1-303363

SPRING-EXTENSION

$7.49

$

In Stock, Qty 15

16

Exmark 103-1567-03

116-4080

(Superseded to 116-4080) 

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs going into tank.

$42.99

$

In Stock, Qty 10

17

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

18

Exmark 1-513592

KNOB-BALL

$7.49

$

In Stock, Qty 16

19

Exmark 1-413428

CONTROL,THROTTLE

Note: For 15 HP Kawasaki units with combined throttle/choke control - Engine Code FH451V - AS04 (36" units - S/N 320,000-345,495; 48" units - S/N 320,000-346,716)

$76.99

$

In Stock, only 2 left!

Exmark 1-633696

THROTTLE CABLE ASM

Note: For 15 HP Kawasaki units with separate choke control - Engine Code FH451V - BS04 (36" units - S/N 345,496 & higher; 48" units - S/N 346,717 & higher)

$68.99

$

In Stock, Qty 19

Exmark 1-323322

CABLE-CONTROL, THROTTLE

$72.99

$

In Stock, only 2 left!

20

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

21

Exmark 103-2194-03

WLD,VH ECS HANDLE

$838.99

$

Usually ships in 3-6 days

22

Exmark 103-0815

GRIP-BAR, HANDLE

$13.99

$

In Stock, only 2 left!

23

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

24

Exmark 103-2466-03

103-2514

(Superseded to 103-2514) 

$156.99

$

In Stock, only 4 left!

25

Exmark 103-0027

BUSHING-LEVER, DRIVE

$22.99

$

In Stock, Qty 20+

26

Exmark 321-14

SCREW-HH

$5.49

$

In Stock, Qty 7

27

Exmark 32128-33

NUT-HF

Note: For 15 HP Kawasaki units with combined throttle/choke control - Engine Code FH451V - AS04 (36" units - S/N 320,000-345,495; 48" units - S/N 320,000-346,716)

$0.99

$

In Stock, Qty 20+

Exmark 32128-33

NUT-HF

Note: For 15 HP Kawasaki units with separate choke control - Engine Code FH451V - BS04 (36" units - S/N 345,496 & higher; 48" units - S/N 346,717 & higher)

$0.99

$

In Stock, Qty 20+

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

28

Exmark 103-0464

126-2925

(Superseded to 126-2925) 

$1.49

$

In Stock, Qty 10

29

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

30

Exmark 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

31

Exmark 103-1371

ASM,LATCH RH THUMB

$37.99

$

In Stock, Qty 7

Exmark 103-1372

ASM,LATCH LH THUMB

$37.99

$

In Stock, Qty 10

32

Exmark 103-0235

SCREW-HH

Note: Use Pro-Lock nut type, Part no. 1-840022 (.5cc tube) on setscrew threads and on thumblatch screws.

$1.49

$

In Stock, Qty 5

33

Exmark 103-2465-03

116-4082

(Superseded to 116-4082) 

$62.99

$

Usually ships in 3-6 days

34

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

35

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

36

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

37

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

38

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

39

Exmark 1-603716

WASHER-FRICTION

$5.99

$

In Stock, Qty 20+

40

Exmark 1-323244

WASHER-FRICTION

(Superseded to 93-1633) 

$3.49

$

In Stock, only 2 left!

41

Exmark 103-0546-03

103-2458

(Superseded to 103-2458) 

$

Not available 

Exmark 103-2910

DISCONTINUED

Note: For 15 HP Kawasaki units with combined throttle/choke control - Engine Code FH451V - AS04 (36" units - S/N 320,000-345,495; 48" units - S/N 320,000-346,716)

$

Not available 

Exmark 103-2911

DISCONTINUED

Note: For 15 HP Kohler units.

$

Not available 

Exmark 103-2912

ASM,CONSOLE W/DECALS

Note: For 15 HP Kawasaki units with separate choke control - Engine Code FH451V - BS04 (36" units - S/N 345,496 & higher; 48" units - S/N 346,717 & higher)

$

Not available 

42

Exmark 103-0773

116-8632

(Superseded to 116-8632) 

$76.99

$

In Stock, Qty 7

43

Exmark 103-0423

KNOB, FE.LCKG. BLACK

$28.99

$

Usually ships in 3-6 days

44

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 8

45

Exmark 1-323245

SPRING-COMPRESSION

$7.49

$

In Stock, Qty 20+

46

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

47

Exmark 321-3

SCREW-HH

Note: For 15 HP Kawasaki units with combined throttle/choke control - Engine Code FH451V - AS04 (36" units - S/N 320,000-345,495; 48" units - S/N 320,000-346,716)

$1.49

$

In Stock, Qty 20+

Exmark 321-3

SCREW-HH

Note: For 15 HP Kawasaki units with separate choke control - Engine Code FH451V - BS04 (36" units - S/N 345,496 & higher; 48" units - S/N 346,717 & higher)

$1.49

$

In Stock, Qty 20+
