VH481KA483 - Exmark 48" Viking Hydro Walk-Behind Mower, Kawasaki FS481V (SN: 314000000 - 314999999) (2014) Fuel Tank Assembly Parts Diagram

48" Viking Hydro Walk-Behind Mower, Kawasaki FS481V

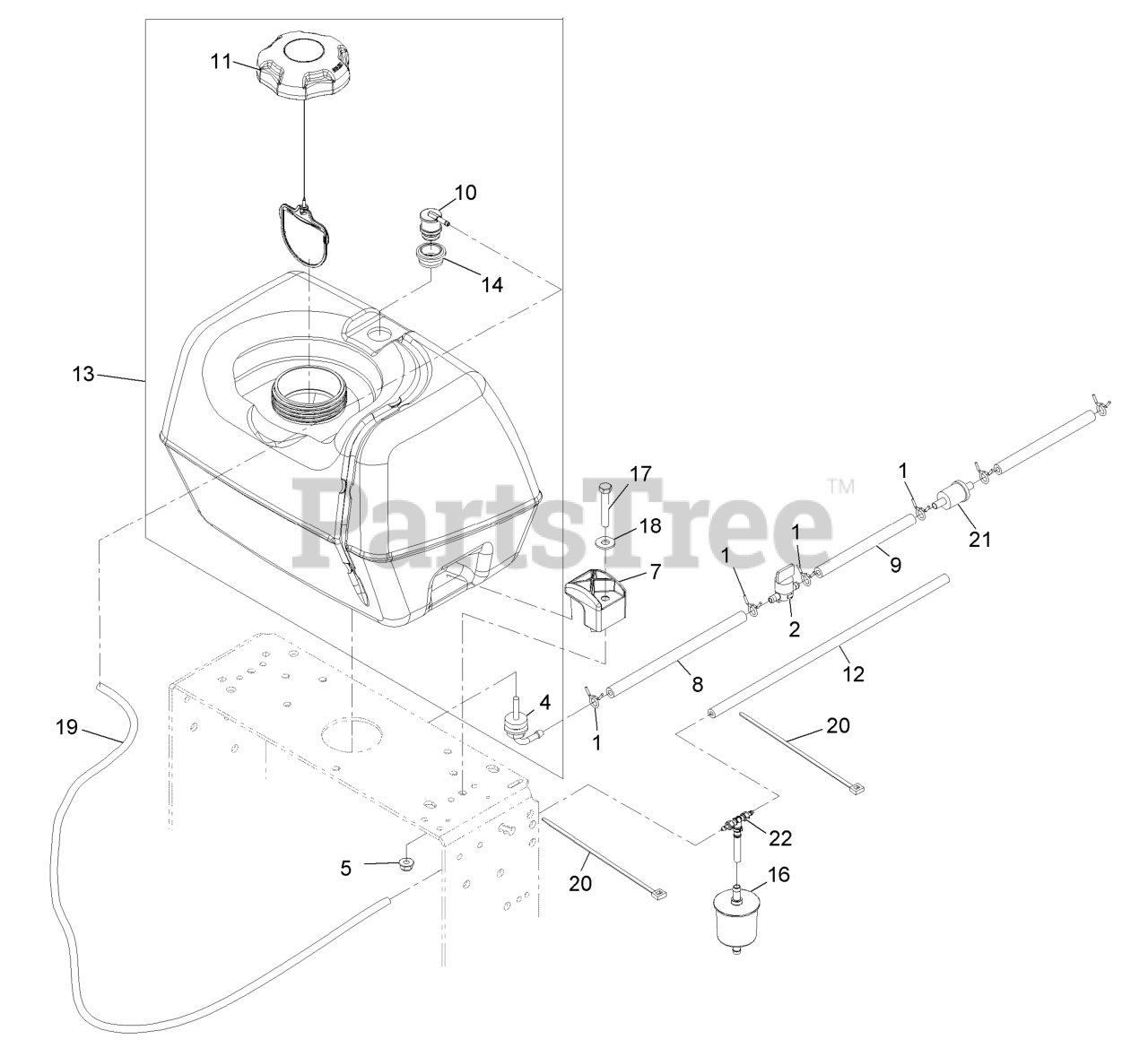

Fuel Tank Assembly Parts Diagram

  • Title

1

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

2

Exmark 1-603770

VALVE-FUEL

$9.49

$

In Stock, only 4 left!

0

4

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$41.99

$

In Stock, Qty 6

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 107-4543

CLAMP

$15.99

$

Usually ships in 3-6 days

0

8

Exmark 109-0605

PLATE,SKID 605

$

$

Not available

9

Exmark 99-9415

HOSE-FUEL

$3.99

$

In Stock, only 3 left!

0

10

Exmark 119-3547

VALVE-VENT, FUEL

$17.99

$

In Stock, Qty 11

0

11

Exmark 120-5461

137-4119
(Superseded to 137-4119)

$30.99

$

In Stock, Qty 20+

0

12

Exmark 115-7872

HOSE-FUEL

$9.49

$

Usually ships in 3-6 days

0

13

Exmark 126-1525

ASM, FUEL TANK
(Superseded to 140-4343)

$329.99

$

In Stock, only 1 left!

0

14

Exmark 114-0284

GROMMET

$3.49

$

In Stock, Qty 20+

0

16

Exmark 120-2235

FILTER-FUEL

$9.49

$

In Stock, Qty 20+

0

17

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

18

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Exmark 116-4346

HOSE-EMISSIONS

$12.99

$

In Stock, only 2 left!

0

20

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

21

Pn 41019-1055 Filter W/6in Fuel Line

Note: Obtain parts from www.kawpowerepc.com, Not serviced separately

$

$

Not available

22

Exmark 116-5464

TEE AND CHECK

$51.99

$

In Stock, only 1 left!

0
