VHS481GKA48300 - Exmark 48" Viking Hydro S-Series Walk-Behind Mower, Kawasaki (SN: 316000000 - 399999999) (2016) Engine Deck Assembly and Park Brake Assembly Parts Diagram

48" Viking Hydro S-Series Walk-Behind Mower, Kawasaki

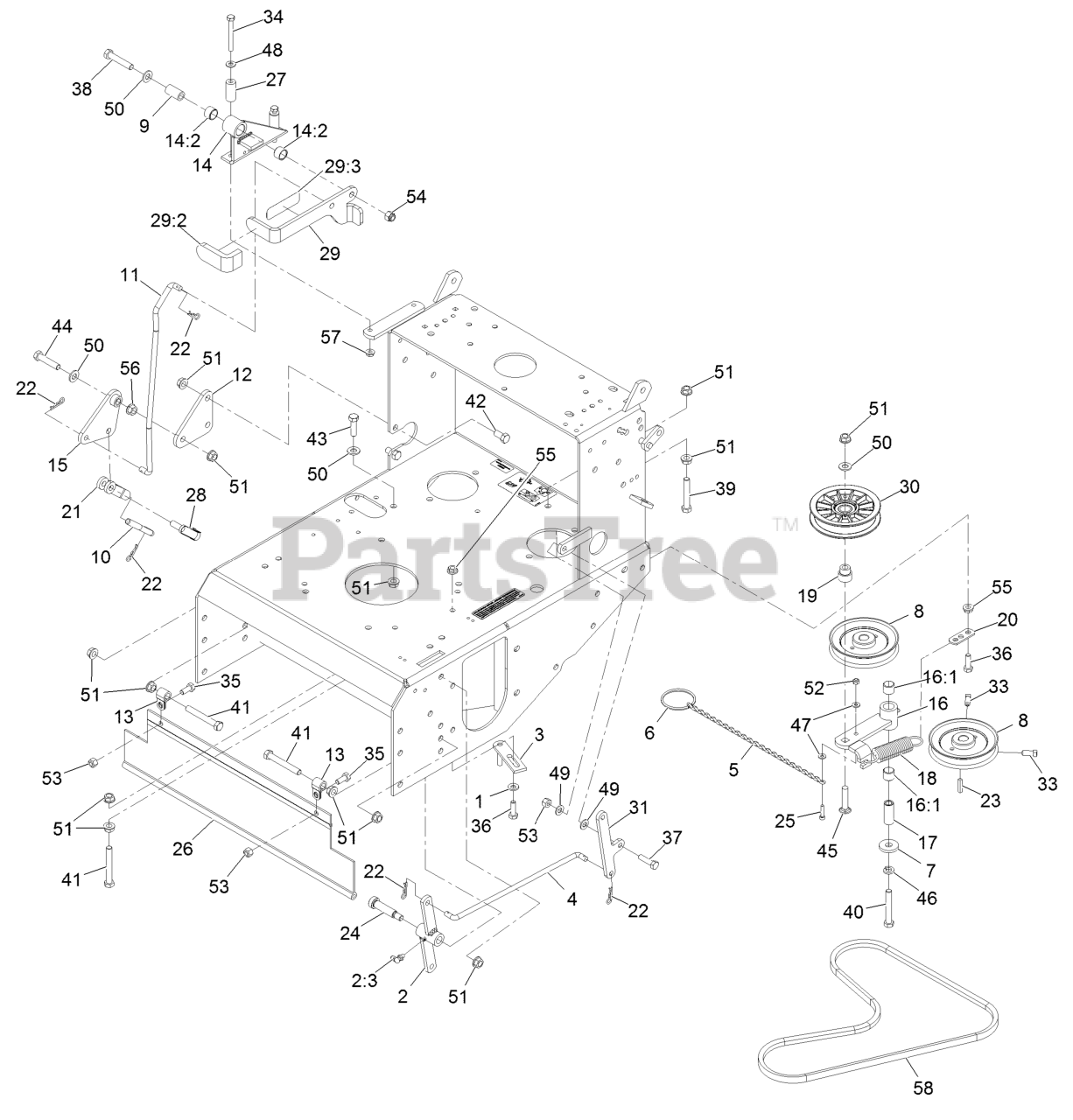

Engine Deck Assembly and Park Brake Assembly Parts Diagram

  • Title

1

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

2

Exmark 1-322108

BELLCRANK ASM

$193.99

$

Usually ships in 3-6 days

0

2:3

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

3

Exmark 1-322110

GUIDE-BELT

$13.99

$

In Stock, Qty 7

0

4

Exmark 1-323172

LINKAGE-ENGAGE, BLADE

$22.99

$

Usually ships in 3-6 days

0

5

Exmark 1-323365

CHAIN-LINK, TWIST

$18.99

$

In Stock, only 2 left!

0

6

Exmark 1-323366

RING-SPLIT

$7.49

$

In Stock, only 2 left!

0

7

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

8

Exmark 1-413010

SHEAVE ASM

$54.99

$

In Stock, only 4 left!

0

9

Exmark 1-413344

BUSHING-PIVOT

$21.99

$

In Stock, only 2 left!

0

10

Exmark 1-413489

LINKAGE-LOWER

$25.99

$

In Stock, only 3 left!

0

11

Exmark 1-413496

LINKAGE-UPPER

$68.99

$

Usually ships in 3-6 days

0

12

Exmark 1-413497

BELLCRANK

$39.99

$

Usually ships in 3-6 days

0

13

Exmark 1-413510

CLIP-LOOM

$2.99

$

In Stock, Qty 12

0

14

Exmark 1-414504

BRACKET ASM

$98.99

$

In Stock, only 1 left!

0

14:2

Exmark 1-413347

SLEEVE-BUSHING

$2.99

$

In Stock, Qty 14

0

15

Exmark 1-414508

BELLCRANK ASM

$70.99

$

Usually ships in 3-6 days

0

16

Exmark 1-602521

IDLER ARM ASM

$125.99

$

Usually ships in 3-6 days

0

16:1

Exmark 103-4681

SLEEVE-BEARING

$5.99

$

In Stock, Qty 10

0

17

Exmark 1-603044

BUSHING

$15.99

$

In Stock, Qty 20+

0

18

Exmark 1-603402

SPRING-EXTENSION

$8.99

$

In Stock, Qty 20+

0

19

Exmark 1-603496

BUSHING-IDLER

$7.99

$

In Stock, Qty 20+

0

20

Exmark 1-603801

ANCHOR-SPRING

$23.99

$

Usually ships in 3-6 days

0

21

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

In Stock, Qty 7

0

22

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

23

Exmark 1-807272

KEY

$6.49

$

In Stock, Qty 20+

0

24

Exmark 1-809062

SCREW

$18.99

$

Usually ships in 3-6 days

0

25

Exmark 1-809069

SCREW-HSH

$3.49

$

Usually ships in 3-6 days

0

26

Exmark 103-2056

SHIELD-DRAG

$71.99

$

In Stock, only 2 left!

0

27

Exmark 103-2191

SPACER

$8.49

$

Usually ships in 3-6 days

0

28

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.99

$

In Stock, Qty 20+

0

29

Exmark 103-3495

LEVER,PARK BRK W/DECAL

$98.99

$

In Stock, only 3 left!

0

29:2

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, only 2 left!

0

29:3

Exmark 116-7923

DECAL-PARKING BRAKE

$3.49

$

Usually ships in 3-6 days

0

30

Exmark 109-4077

PULLEY-IDLER, FLAT

$23.99

$

In Stock, Qty 17

0

31

Exmark 116-1737-01

BELLCRANK

$12.99

$

Usually ships in 3-6 days

0

33

Exmark 120-6474

SCREW-SET, SQH

$2.99

$

In Stock, Qty 5

0

34

Exmark 321-15

SCREW-HH

$1.49

$

In Stock, Qty 14

0

35

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

36

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

37

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

38

Exmark 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

40

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

41

Exmark 323-13

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

42

Exmark 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

43

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

44

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

45

Exmark 3231-29

SCREW-CARR

$8.49

$

In Stock, Qty 16

0

46

Exmark 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 12

0

47

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

48

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

49

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

50

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

51

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

52

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

53

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

54

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

55

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

56

Exmark 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

57

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

58

Exmark 103-4760

BELT-COG
(Superseded to 103-4760-SL)

$50.99

$

In Stock, Qty 13
