VT20KAS524 - Exmark 52" Vantage Stand-On Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) 48" Deck Group Parts Diagram

52" Vantage Stand-On Mower, 20hp Kawasaki

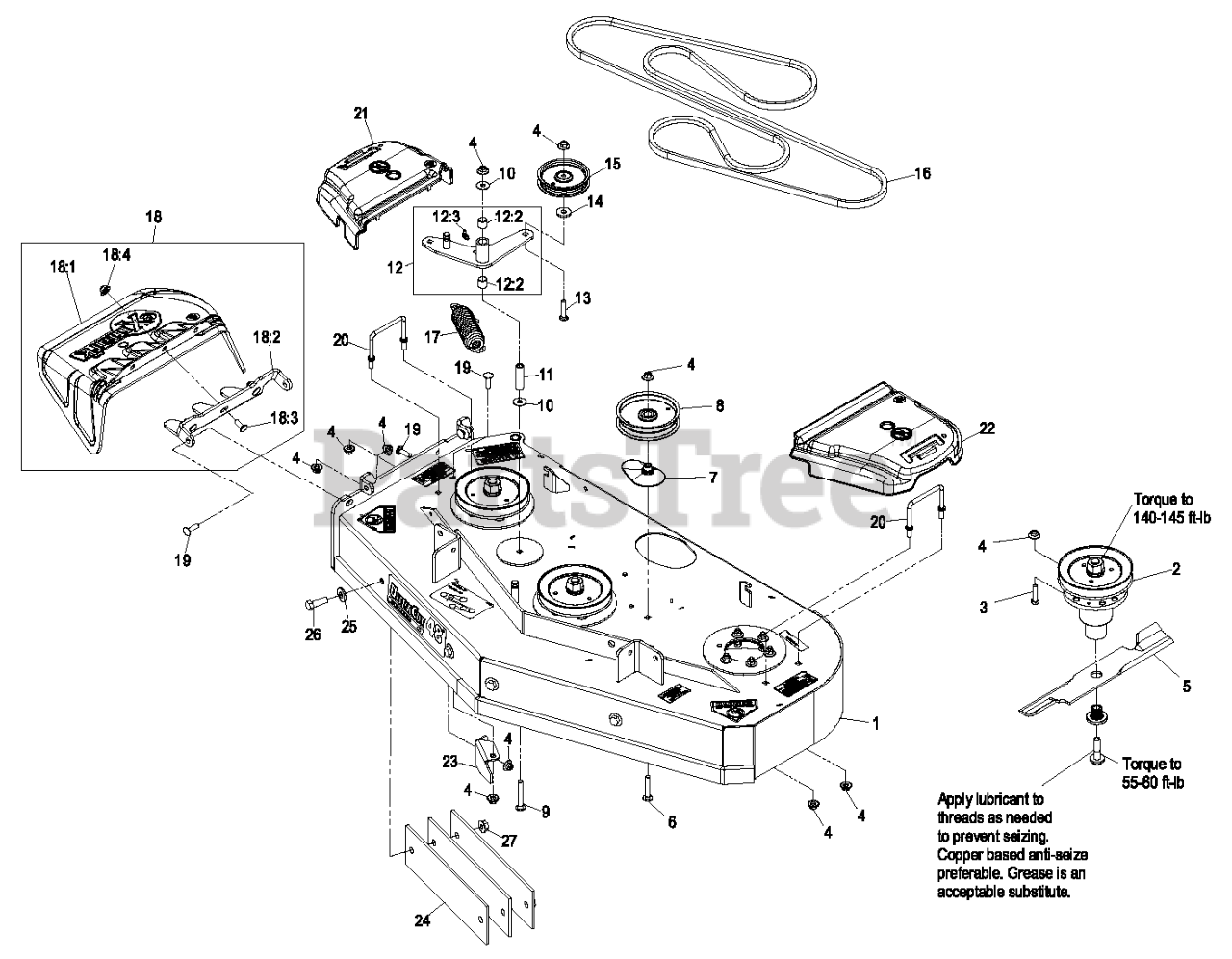

48" Deck Group Parts Diagram

  • Title

1

Exmark 116-2586

DECK ASM, 484

$

$

Not available

2

Exmark 109-9017

KIT,CUTTER HOUSING 48

$

$

Not available

3

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

5

Exmark 103-6401

103-6401-S
(Superseded to 103-6401-S)

$34.99

$

In Stock, Qty 20+

0

Exmark 103-6391

103-6391-S
(Superseded to 103-6391-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK484.

$35.99

$

In Stock, Qty 20+

0

Exmark 103-6386

103-6386-S
(Superseded to 103-6386-S)

$37.99

$

In Stock, only 4 left!

0

Exmark 103-6381

103-6381-S
(Superseded to 103-6381-S)

$37.99

$

In Stock, only 3 left!

0

Exmark 103-6396

116-5177-S
(Superseded to 116-5177-S)

$35.99

$

In Stock, Qty 20+

0

6

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$7.99

$

In Stock, Qty 20+

0

7

Exmark 109-2872

SPACER-PULLEY

$25.99

$

In Stock, Qty 20+

0

8

Exmark 1-613098

PULLEY-IDLER

$51.99

$

In Stock, Qty 20+

0

9

Exmark 3231-11

SCREW-CARR

$5.99

$

In Stock, only 3 left!

0

10

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

11

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

12

Exmark 116-2694

IDLER ASM

$159.99

$

Usually ships in 3-6 days

0

12:2

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

12:3

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

13

Exmark 116-3381

SCREW-CARR SPECIAL

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

15

Exmark 93-1622

PULLEY-IDLER

$54.99

$

In Stock, only 4 left!

0

16

Exmark 99-4627

V-BELT
(Superseded to 99-4627-SL)

$219.99

$

In Stock, only 2 left!

0

17

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$31.99

$

In Stock, Qty 20+

0

18

Exmark 109-7188

ASM,DISCHARGE CHUTE

$129.99

$

In Stock, Qty 14

0

18:1

Exmark 109-2738

CHUTE,DISCHARGE

$90.99

$

In Stock, Qty 8

0

18:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$60.99

$

In Stock, only 1 left!

0

18:3

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

18:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

19

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 20+

0

20

Exmark 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

21

Exmark 109-6935

COVER-BELT, RH

$43.99

$

In Stock, Qty 18

0

22

Exmark 109-6936

COVER-BELT, LH

$43.99

$

In Stock, Qty 20+

0

23

Exmark 109-9010-01

BAFFLE,DISCHARGE

$

$

Not available

24

Exmark 116-1822-01

BAR,WEIGHT

$70.99

$

Usually ships in 3-6 days

0

25

Exmark 1-513435

WASHER-SPRING

$6.49

$

In Stock, Qty 20+

0

26

Exmark 325-6

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

27

Exmark 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 10

0

Exmark 116-2036

Asm, Complete Deck

$

$

Currently unavailable
