VT20KAS524 - Exmark 52" Vantage Stand-On Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) Engine Group - 20-24HP Kawasaki Parts Diagram

52" Vantage Stand-On Mower, 20hp Kawasaki

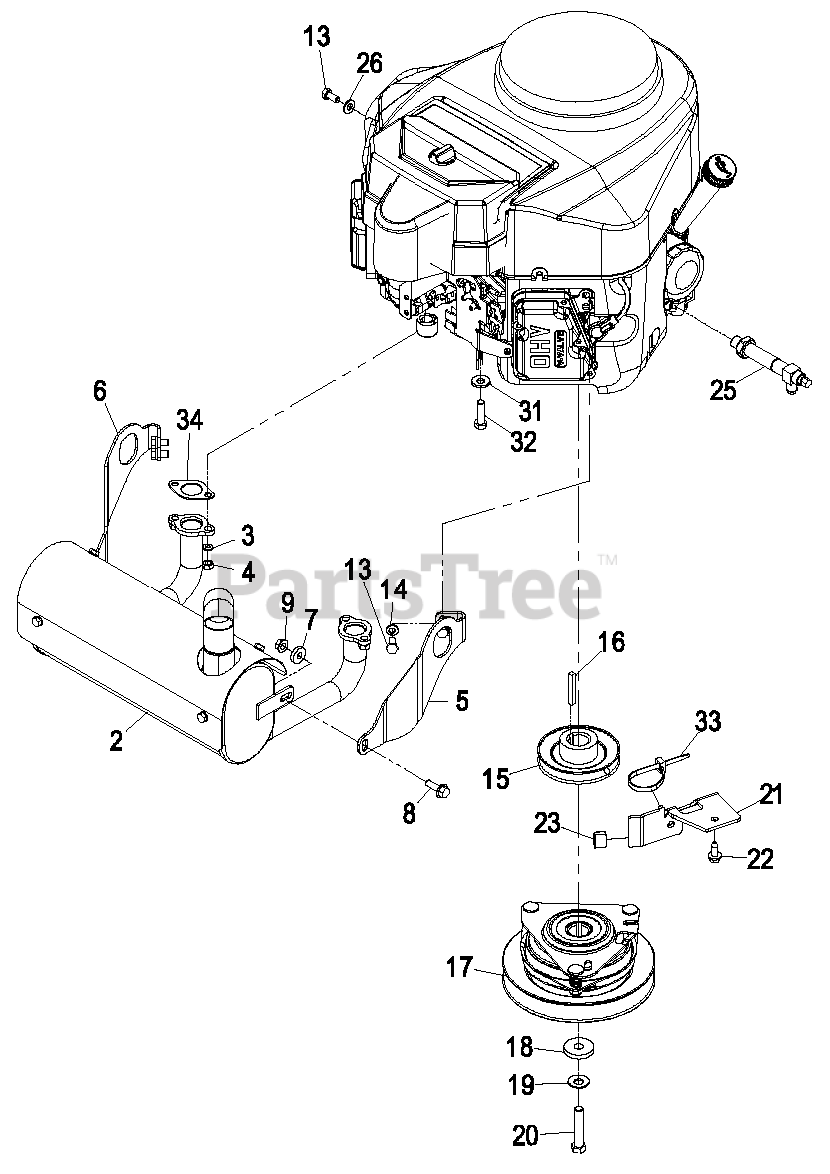

Engine Group - 20-24HP Kawasaki Parts Diagram

  • Title

2

Exmark 116-2351

132-1547
(Superseded to 132-1547)

$357.99

$

Usually ships in 3-6 days

0

Exmark 116-2352

116-8747
(Superseded to 116-8747)

$439.99

$

Usually ships in 3-6 days

0

3

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

4

Exmark 114-3549

NUT

$2.49

$

In Stock, Qty 20+

0

5

Exmark 116-2353

BRACKET-MUFFLER MOUNT, LH

$77.99

$

In Stock, only 1 left!

0

6

Exmark 116-2354

BRACKET-MUFFLER MOUNT, RH

$77.99

$

In Stock, only 1 left!

0

7

Exmark 104-7658

SPACER

$1.49

$

In Stock, only 1 left!

0

8

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

9

Exmark 32128-25

NUT-HF

$3.99

$

In Stock, Qty 8

0

13

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Exmark 112-7067

PULLEY

$275.99

$

Usually ships in 3-6 days

0

16

Exmark 608006

KEY-SQUARE

$5.99

$

In Stock, only 2 left!

0

17

Exmark 105-2635

CLUTCH / BRAKE ASM

$630.99

$

Usually ships in 3-6 days

0

18

Exmark 107-4136

WASHER
(Superseded to 1-543610)

$6.99

$

In Stock, Qty 20+

0

19

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

20

Exmark 3212-9

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$13.99

$

In Stock, Qty 6

0

21

Exmark 117-9708-01

121-5984-03
(Superseded to 121-5984-03)

$28.99

$

Usually ships in 3-6 days

0

22

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

23

Exmark 109-3765

BUMPER

$7.99

$

Usually ships in 3-6 days

0

25

Exmark 116-2618

116-6126
(Superseded to 116-6126)

$76.99

$

Usually ships in 3-6 days

0

26

Exmark 33094-00

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

31

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

32

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

33

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

34

Exmark 1-653313

GASKET-EXHAUST

$5.99

$

Usually ships in 3-6 days

0
