VT20KAS524 - Exmark 52" Vantage Stand-On Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) Park Brake Group Parts Diagram

52" Vantage Stand-On Mower, 20hp Kawasaki

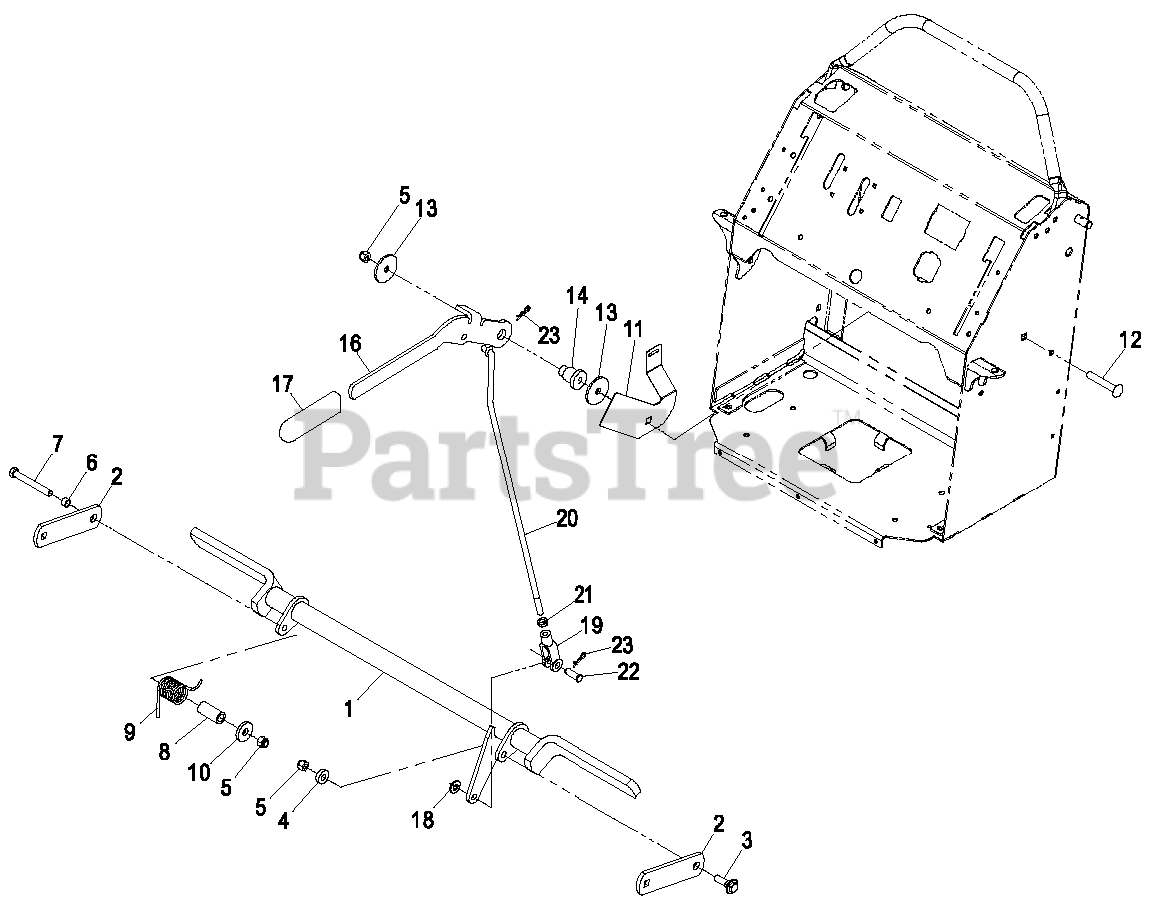

Park Brake Group Parts Diagram

  • Title

1

Exmark 114-5187-03

BRAKE ASM

$

$

Not available

2

Exmark 114-5186-01

SUPPORT-BRAKE

$22.99

$

Usually ships in 3-6 days

0

3

Exmark 614672

SCREW-SHOULDER, HWH

$3.49

$

In Stock, only 2 left!

0

4

Exmark 5-0652

SPACER

$8.49

$

In Stock, only 2 left!

0

5

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Exmark 117-9684

SPACER

$6.49

$

Usually ships in 3-6 days

0

7

Exmark 3231-4

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

8

Exmark 117-9683

SPACER

$9.49

$

Usually ships in 3-6 days

0

9

Exmark 117-9682

SPRING-TORSION

$7.49

$

In Stock, only 1 left!

0

10

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

11

Exmark 117-0452-03

PLATE-SWITCH, BRAKE

$30.99

$

Usually ships in 3-6 days

0

12

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

13

Exmark 63-7400

WASHER-REBOUND

$3.49

$

In Stock, Qty 20+

0

14

Exmark 106-3214

MOUNT-PULLEY

$13.99

$

In Stock, Qty 20+

0

16

Exmark 117-5759-03

LEVER-BRAKE

$45.99

$

Usually ships in 3-6 days

0

17

Exmark 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 17

0

18

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

In Stock, Qty 7

0

20

Exmark 114-5196

ROD-BRAKE

$78.99

$

Usually ships in 3-6 days

0

21

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

22

Exmark 283-2

PIN-CLEVIS

$14.99

$

In Stock, only 1 left!

0

23

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0
