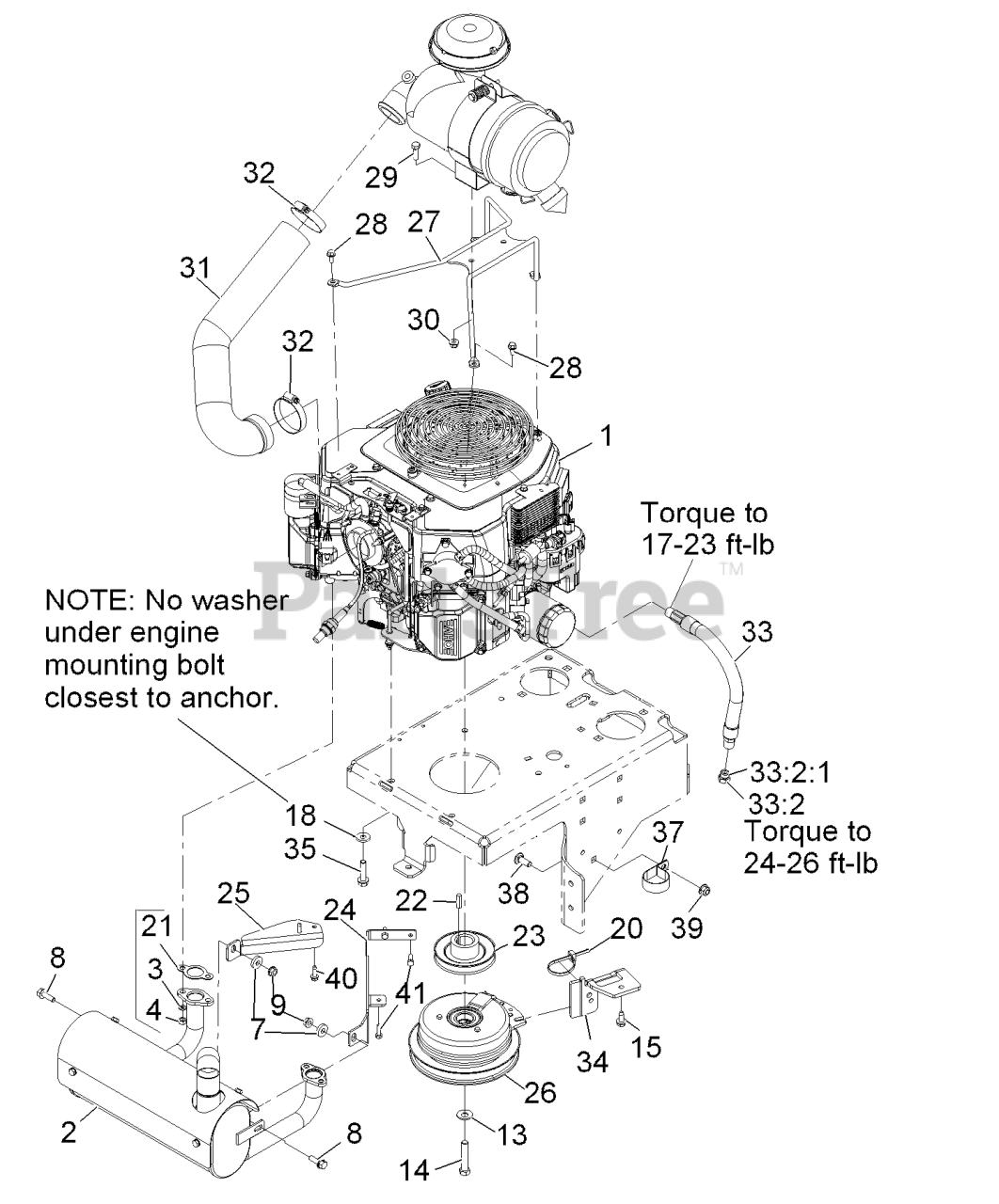

VT25EKC524 - Exmark 52" Vantage Stand-On Mower, 25hp Kohler (SN: 920000 - 999999) (2011) Engine Assembly Parts Diagram

52" Vantage Stand-On Mower, 25hp Kohler

Engine Assembly Parts Diagram

  • Title

1

Engine-Kohler 25hp Efi

Note: Not serviced separately\nObtain parts from www.kohlerplus.com

$

$

Not available

2

Exmark 116-4092

135-2666
(Superseded to 135-2666)

$482.99

$

In Stock, only 1 left!

0

3

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

4

Exmark 114-3549

NUT

$2.49

$

In Stock, Qty 20+

0

7

Exmark 104-7658

SPACER

$1.49

$

In Stock, only 1 left!

0

8

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

9

Exmark 32128-25

NUT-HF

$3.99

$

In Stock, Qty 9

0

13

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

14

Exmark 3212-9

SCREW-HH

$13.99

$

In Stock, Qty 6

0

15

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

18

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

20

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

21

Exmark 110-6697

GASKET-EXHAUST

$7.49

$

Usually ships in 3-6 days

0

22

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

23

Exmark 116-3882

PULLEY

$128.99

$

Usually ships in 3-6 days

0

24

Exmark 116-4039

116-8751
(Superseded to 116-8751)

$42.99

$

Usually ships in 3-6 days

0

25

Exmark 116-4038

BRACKET-MUFFLER, RH

$42.99

$

Usually ships in 3-6 days

0

26

Exmark 116-4477

CLUTCH-175 FT-LB, 1.125 B

$742.99

$

Usually ships in 3-6 days

0

27

Exmark 116-4043-03

125-4660-03
(Superseded to 125-4660-03)

$87.99

$

Usually ships in 3-6 days

0

28

Exmark 33103-016

SCREW-HHF

$6.99

$

In Stock, Qty 6

0

29

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Exmark 116-4047

HOSE-INTAKE, AIR

$

$

Not available

32

Exmark 2412-42

CLAMP-HOSE

$11.99

$

Usually ships in 3-6 days

0

33

Exmark 116-5108

OIL DRAIN HOSE ASM

$43.99

$

Usually ships in 3-6 days

0

33:2

Exmark 353-508

PLUG-HH

$9.49

$

In Stock, only 1 left!

0

33:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

34

Exmark 116-3811-01

BRACKET-ANCHOR, CLUTCH

$44.99

$

Usually ships in 3-6 days

0

35

Exmark 32144-102

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

37

Exmark 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

38

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

39

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

40

Exmark 116-4295

SCREW-HH M6-1 X 20Mm W/Patch

$5.99

$

Usually ships in 3-6 days

0

41

Exmark 116-4295

SCREW-HH M6-1 X 20Mm W/Patch

$5.99

$

Usually ships in 3-6 days

0
