VT541KA363CA - Exmark 36" Vantage Stand-On Mower, Kawasaki FS541V, CARB (SN: 312000000 - 312999999) (2012) Fuel Tank Mounting Assembly Parts Diagram

36" Vantage Stand-On Mower, Kawasaki FS541V, CARB

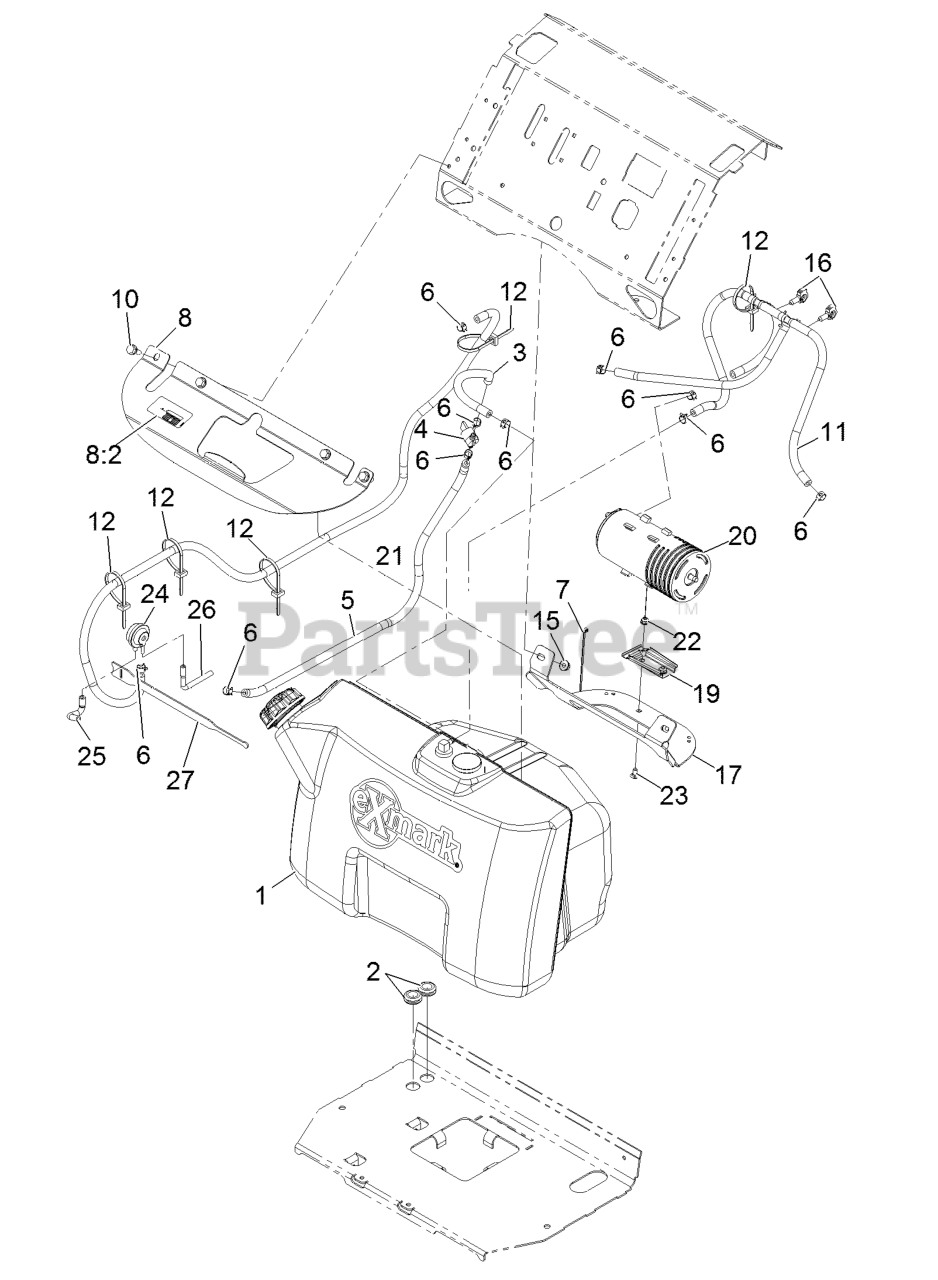

Fuel Tank Mounting Assembly Parts Diagram

  • Title

1

Exmark 116-4577

135-0647
(Superseded to 135-0647)

$

$

Not available

2

Exmark 112-7069

GROMMET

$3.99

$

Usually ships in 3-6 days

0

3

Exmark 107-9297

HOSE-FUEL

$8.99

$

In Stock, only 2 left!

0

4

Exmark 1-603770

VALVE-FUEL

$9.49

$

In Stock, only 4 left!

0

5

Exmark 110-1872

HOSE-FUEL

$37.99

$

Usually ships in 3-6 days

0

6

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

7

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

8

Exmark 116-3088

BRACKET-TANK

$84.99

$

Usually ships in 3-6 days

0

8:2

Exmark 116-3290

DECAL-FILL, FUEL

$3.99

$

In Stock, only 1 left!

0

10

Exmark 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

11

Exmark 116-5054

VENT ASM

$

$

Not available

12

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

15

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 32180-040

CLIP-HARNESS

$2.99

$

Usually ships in 3-6 days

0

17

Exmark 116-5055-03

BRACKET,CARB CANISTER

$82.99

$

Usually ships in 3-6 days

0

19

Exmark 114-0292

BRACKET-CANISTER, CARBON

$13.99

$

Usually ships in 3-6 days

0

20

Exmark 117-1221

CANISTER-CARBON, 800CC

$84.99

$

Usually ships in 3-6 days

0

21

Exmark 116-5053

HOSE-FUEL .25 X 60.00, J3

$

$

Not available

22

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Exmark 116-5879

SCREW-CARR

$

$

Not available

24

Exmark 116-2232

VALVE-CONTROL, VACUUM

$37.99

$

In Stock, only 2 left!

0

25

Exmark 119-8502

HOSE-VENT, FORMED

$7.49

$

Usually ships in 3-6 days

0

26

Exmark 119-8501

HOSE-VENT, FORMED

$7.49

$

Usually ships in 3-6 days

0

27

Exmark 116-2469

STRAP-VELCRO, CABLE TIE

$19.99

$

Usually ships in 3-6 days

0
