VT730EKC524 - Exmark 52" Vantage Stand-On Mower, Kohler ECV730 EFI (SN: 312000000 - 312999999) (2012) Ground Drive System Parts Diagram

52" Vantage Stand-On Mower, Kohler ECV730 EFI

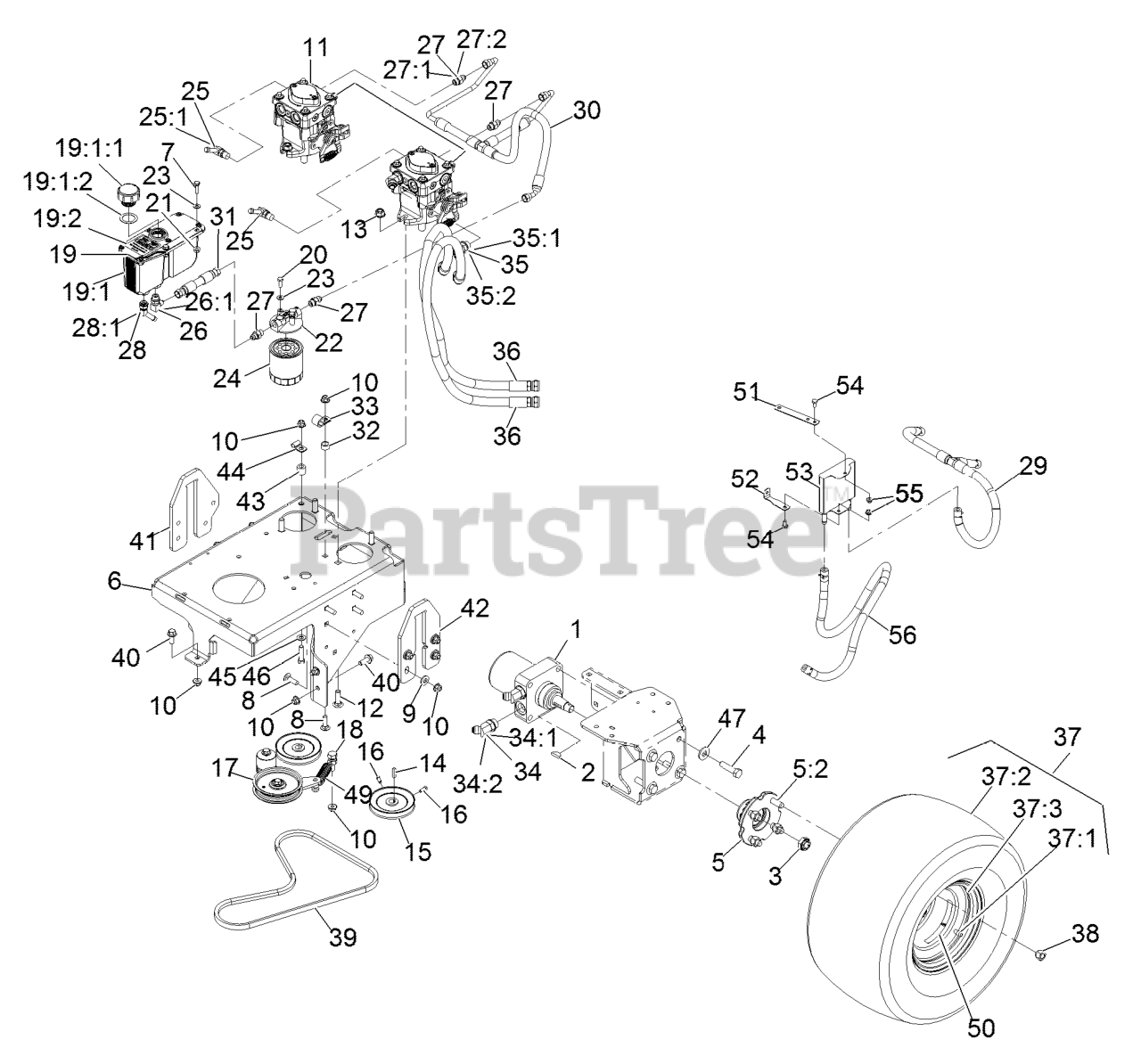

Ground Drive System Parts Diagram

  • Title

1

Exmark 116-4851

MOTOR-WHEEL

$1345.99

$

Usually ships in 3-6 days

0

2

Exmark 3257-8

KEY-WOODRUFF

$5.99

$

In Stock, Qty 5

0

3

Exmark 116-2839

NUT-LOCK

$12.99

$

In Stock, only 2 left!

0

4

Exmark 325-8

SCREW-HH

$5.99

$

In Stock, only 3 left!

0

5

Exmark 105-0800

WHEEL HUB ASM

$351.99

$

Usually ships in 3-6 days

0

5:2

Exmark 10-6830

STUD-TYPE, DRIVE

$5.99

$

In Stock, only 4 left!

0

6

Exmark 116-6128-01

BASE-ENGINE

$448.99

$

Usually ships in 3-6 days

0

7

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

8

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

9

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

10

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 116-2572

PUMP - HYDRAULIC

$1477.99

$

Usually ships in 3-6 days

0

12

Exmark 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

13

Exmark 114-8417

NUT-HF, NI

$2.99

$

In Stock, Qty 14

0

14

Exmark 1-807272

KEY

$6.49

$

In Stock, Qty 20+

0

15

Exmark 105-5648

PULLEY-PUMP

Note: Apply anti-seize compound in bore.

$136.99

$

Usually ships in 3-6 days

0

16

Exmark 3241-5

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.49

$

In Stock, only 2 left!

0

17

Exmark 117-7685

PUMP IDLER ASM

$243.99

$

Usually ships in 3-6 days

0

18

Exmark 114-5866

132-4729
(Superseded to 132-4729)

$7.49

$

In Stock, Qty 10

0

19

Exmark 116-2066

RESERVOIR ASM

Note: Use Exmark Premium Hydro Oil P/N 109-9828 (32oz)

$214.99

$

Usually ships in 3-6 days

0

19:1

Reservoir-Hyd

Note: (Not Used) Not serviced separately

$

$

Not available

19:1:1

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$37.99

$

In Stock, Qty 20+

0

19:1:2

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

19:2

Exmark 116-0404

DECAL-HYDRAULIC TANK

$2.49

$

In Stock, Qty 11

0

20

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Exmark 32128-32

NUT-HHF

$3.49

$

In Stock, Qty 20+

0

22

Exmark 104-7836

HEAD-FILTER

$19.99

$

In Stock, only 1 left!

0

23

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Exmark 109-4180

FILTER-25 MICRON, BI-DIRE

$53.99

$

In Stock, Qty 15

0

25

Exmark 100-4887

FITTING-ELBOW, 90

$29.99

$

In Stock, only 1 left!

0

25:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

26

Exmark 103-1802

FITTING-ELBOW, 90 DEG

$27.99

$

In Stock, only 2 left!

0

26:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

27

Exmark 103-2156

FITTING-STRAIGHT

$46.99

$

In Stock, only 3 left!

0

27:1

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

27:2

Exmark 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

28

Exmark 103-1807

FITTING-BARBED, 45 DEG

$31.99

$

Usually ships in 3-6 days

0

28:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

29

Exmark 116-7030

HOSE ASM-CASE DRAIN

$50.99

$

Usually ships in 3-6 days

0

30

Exmark 116-2650

HOSE ASSEMBLY - CHARGE

$172.99

$

Usually ships in 3-6 days

0

31

Exmark 116-2604

HYD HOSE ASM

$26.99

$

Usually ships in 3-6 days

0

32

Exmark 1-653069

SPACER-WHEEL

$14.99

$

In Stock, only 3 left!

0

33

Exmark 1-633396

CLIP-LOOM

$5.99

$

Usually ships in 3-6 days

0

34

Exmark 1-523222

FITTING-HYD, 45 DEG

$

$

Not available

34:1

Exmark 1-603919

O-RING

$3.99

$

In Stock, Qty 13

0

34:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

35

Exmark 1-523221

FITTING-HYD, 45 DEG

$54.99

$

Usually ships in 3-6 days

0

35:1

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

35:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

36

Exmark 116-6902

HYD HOSE ASM

$124.99

$

In Stock, only 2 left!

0

37

Exmark 120-6465

WHEEL/TIRE ASM

$325.99

$

Usually ships in 3-6 days

0

37:1

Exmark 116-4605

RIM-8 INCH

$118.99

$

Usually ships in 3-6 days

0

37:2

Exmark 120-6466

TIRE

$143.99

$

In Stock, only 2 left!

0

37:3

Exmark 232-27

Stem-Valve

$

$

Not available

38

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

39

Exmark 114567

BELT-V, LOWER PTO
(Superseded to 114567-SL)

$38.99

$

In Stock, Qty 6

0

40

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.99

$

In Stock, Qty 20+

0

41

Exmark 116-4922

PLATE-LIFT, RH

$90.99

$

Usually ships in 3-6 days

0

42

Exmark 116-3546

PLATE, LIFT LH

$91.99

$

Usually ships in 3-6 days

0

43

Exmark 121-1760

SPACER

$2.49

$

Usually ships in 3-6 days

0

44

Exmark 116-3362

CLIP-TUBE

$

$

Not available

45

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

46

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

47

Exmark 1-513435

WASHER-SPRING

$6.49

$

In Stock, Qty 20+

0

49

Exmark 108-4056

SPRING-EXTENSION

$9.49

$

In Stock, Qty 20+

0

50

Exmark 116-4181

126-2130
(Superseded to 126-2130)

$

$

Not available

51

Exmark 116-7022

BRKT-COOLER MOUNT, TOP

$8.99

$

Usually ships in 3-6 days

0

52

Exmark 116-7023

BRKT-COOLER MOUNT, BOTTOM

$10.99

$

Usually ships in 3-6 days

0

53

Exmark 116-7026

COOLER-OIL

$

$

Not available

54

Exmark 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

55

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

56

Exmark 116-7032

HOSE ASM

$36.99

$

Usually ships in 3-6 days

0
