VTS691KA524CA - Exmark 52" Vantage S-Series Stand-On Mower, Kawasaki, CARB (SN: 314000000 - 314999999) (2014) Engine Assembly Parts Diagram

52" Vantage S-Series Stand-On Mower, Kawasaki, CARB

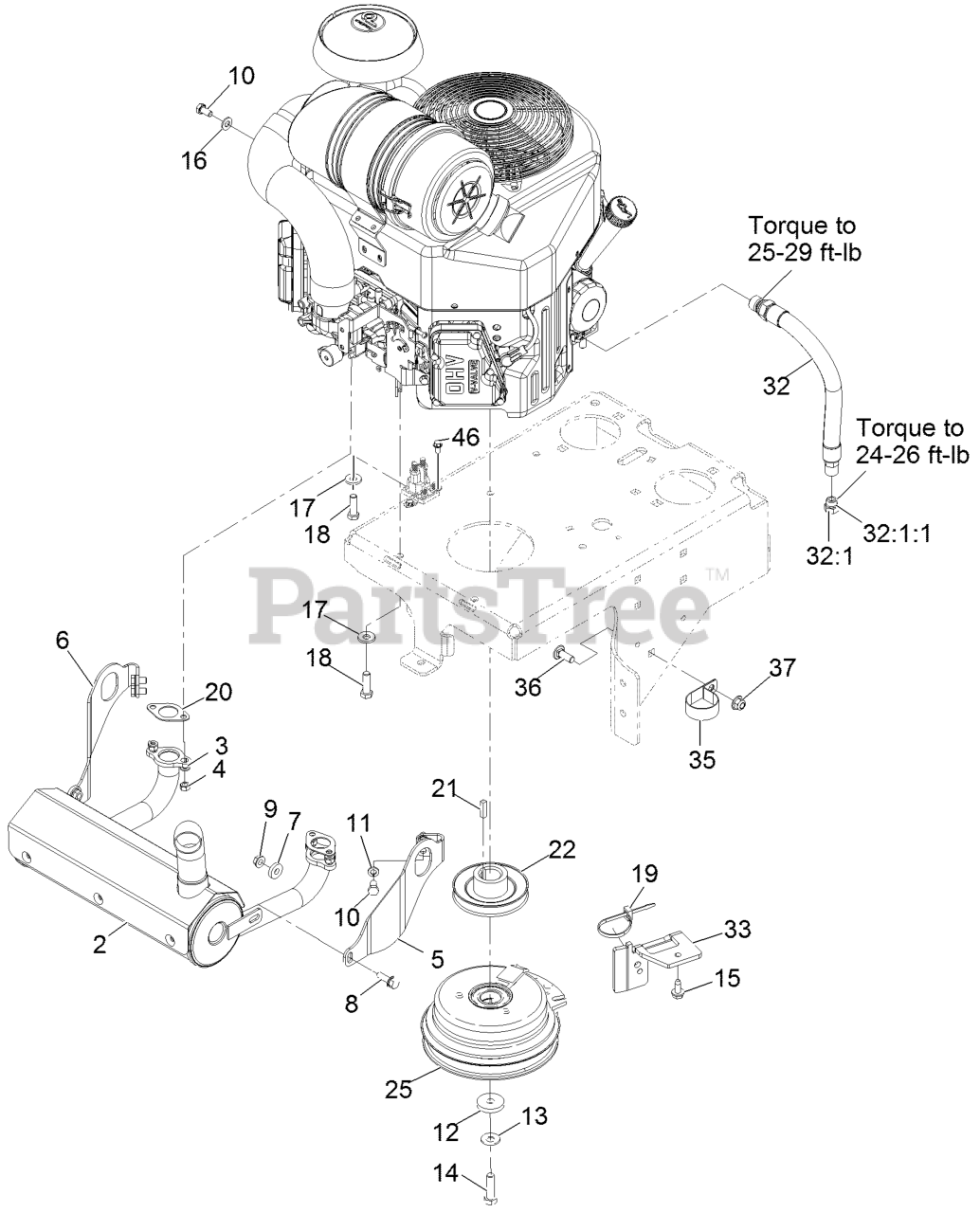

Engine Assembly Parts Diagram

  • Title

2

Exmark 116-8747

MUFFLER, KAWASAKI, 22-26

$439.99

$

Usually ships in 3-6 days

0

3

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

4

Exmark 114-3549

NUT

$2.49

$

In Stock, Qty 20+

0

5

Exmark 116-2353

BRACKET-MUFFLER MOUNT, LH

$77.99

$

In Stock, only 1 left!

0

6

Exmark 116-2354

BRACKET-MUFFLER MOUNT, RH

$77.99

$

In Stock, only 1 left!

0

7

Exmark 104-7658

SPACER

$1.49

$

In Stock, only 1 left!

0

8

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

9

Exmark 32128-25

NUT-HF

$3.99

$

In Stock, Qty 9

0

10

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Exmark 107-4136

WASHER
(Superseded to 1-543610)

$6.99

$

In Stock, Qty 20+

0

13

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

14

Exmark 3212-6

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.99

$

In Stock, Qty 12

0

15

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

16

Exmark 33094-00

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

17

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

18

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

19

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

20

Exmark 1-653313

GASKET-EXHAUST

$5.99

$

Usually ships in 3-6 days

0

21

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

22

Exmark 116-3882

PULLEY

$128.99

$

Usually ships in 3-6 days

0

25

Exmark 116-8517

CLUTCH-200 FT-LB, 1.125 B

$713.99

$

Usually ships in 3-6 days

0

32

Exmark 116-4924

ENGINE OIL DRAIN HOSE ASM

$42.99

$

In Stock, Qty 6

0

32:1

Exmark 353-508

PLUG-HH

$9.49

$

In Stock, only 1 left!

0

32:1:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

33

Exmark 116-3811-01

BRACKET-ANCHOR, CLUTCH

$44.99

$

Usually ships in 3-6 days

0

35

Exmark 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

36

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

37

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

46

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+
