VTS730EKC524 - Exmark 52" Vantage S-Series Stand-On Mower, Kohler ECV730 EFI (SN: 314000000 - 314999999) (2014) Engine Assembly Parts Diagram

52" Vantage S-Series Stand-On Mower, Kohler ECV730 EFI

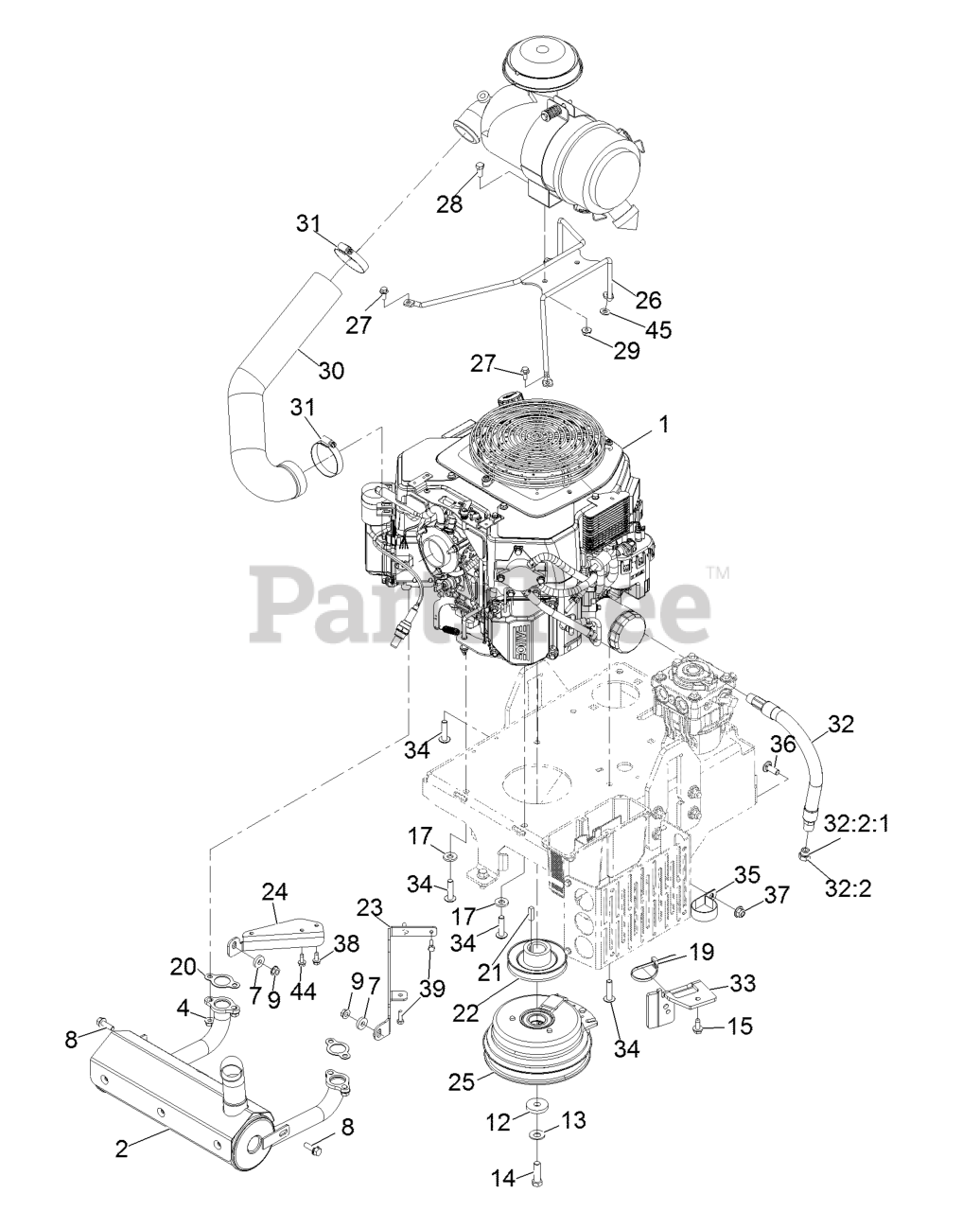

Engine Assembly Parts Diagram

  • Title

1

Engine, Kohler

Note: Not serviced separately, Obtain parts from www.kohlerplus.com

$

$

Not available

2

Exmark 116-8748

135-2666
(Superseded to 135-2666)

$482.99

$

In Stock, only 1 left!

0

4

Exmark 68-9400

NUT-FLANGE

$2.99

$

In Stock, only 1 left!

0

7

Exmark 104-7658

SPACER

$1.49

$

In Stock, only 1 left!

0

8

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

9

Exmark 32128-25

NUT-HF

$3.99

$

In Stock, Qty 9

0

12

Exmark 107-4136

WASHER
(Superseded to 1-543610)

$6.99

$

In Stock, Qty 20+

0

13

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

14

Exmark 3212-6

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.99

$

In Stock, Qty 12

0

15

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

17

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

19

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

20

Exmark 110-6697

GASKET-EXHAUST

$7.49

$

Usually ships in 3-6 days

0

21

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

22

Exmark 116-3882

PULLEY

$128.99

$

Usually ships in 3-6 days

0

23

Exmark 126-0071

MOUNT, MUFFLER-LT

$36.99

$

Usually ships in 3-6 days

0

24

Exmark 126-0072

MOUNT, MUFFLER-RT

$24.99

$

Usually ships in 3-6 days

0

25

Exmark 116-8517

CLUTCH-200 FT-LB, 1.125 B

$713.99

$

Usually ships in 3-6 days

0

26

Exmark 125-4660-03

MOUNT-CLEANER, AIR

$87.99

$

Usually ships in 3-6 days

0

27

Exmark 33103-016

SCREW-HHF

$6.99

$

In Stock, Qty 6

0

28

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

30

Exmark 116-4047

HOSE-INTAKE, AIR

$

$

Not available

31

Exmark 2412-42

CLAMP-HOSE

$11.99

$

Usually ships in 3-6 days

0

32

Exmark 116-5108

OIL DRAIN HOSE ASM

$43.99

$

Usually ships in 3-6 days

0

32:2

Exmark 353-508

PLUG-HH

$9.49

$

In Stock, only 1 left!

0

32:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

33

Exmark 116-3811-01

BRACKET-ANCHOR, CLUTCH

$44.99

$

Usually ships in 3-6 days

0

34

Exmark 126-0983

SCREW-BHTF

$5.99

$

In Stock, only 3 left!

0

35

Exmark 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

36

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

37

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

38

Exmark 116-5722

SCREW-HWHTF

$1.99

$

Usually ships in 3-6 days

0

39

Exmark 116-4295

SCREW-HH M6-1 X 20Mm W/Patch

$5.99

$

Usually ships in 3-6 days

0

44

Exmark 116-5722

SCREW-HWHTF

$1.99

$

Usually ships in 3-6 days

0

45

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
