VTS740PKC52400 - Exmark 52" Vantage S-Series Stand-On Mower, Kohler PCV740 (SN: 402082300 - 404314158) (2018) Platform Assembly No. 116-1804 Parts Diagram

52" Vantage S-Series Stand-On Mower, Kohler PCV740

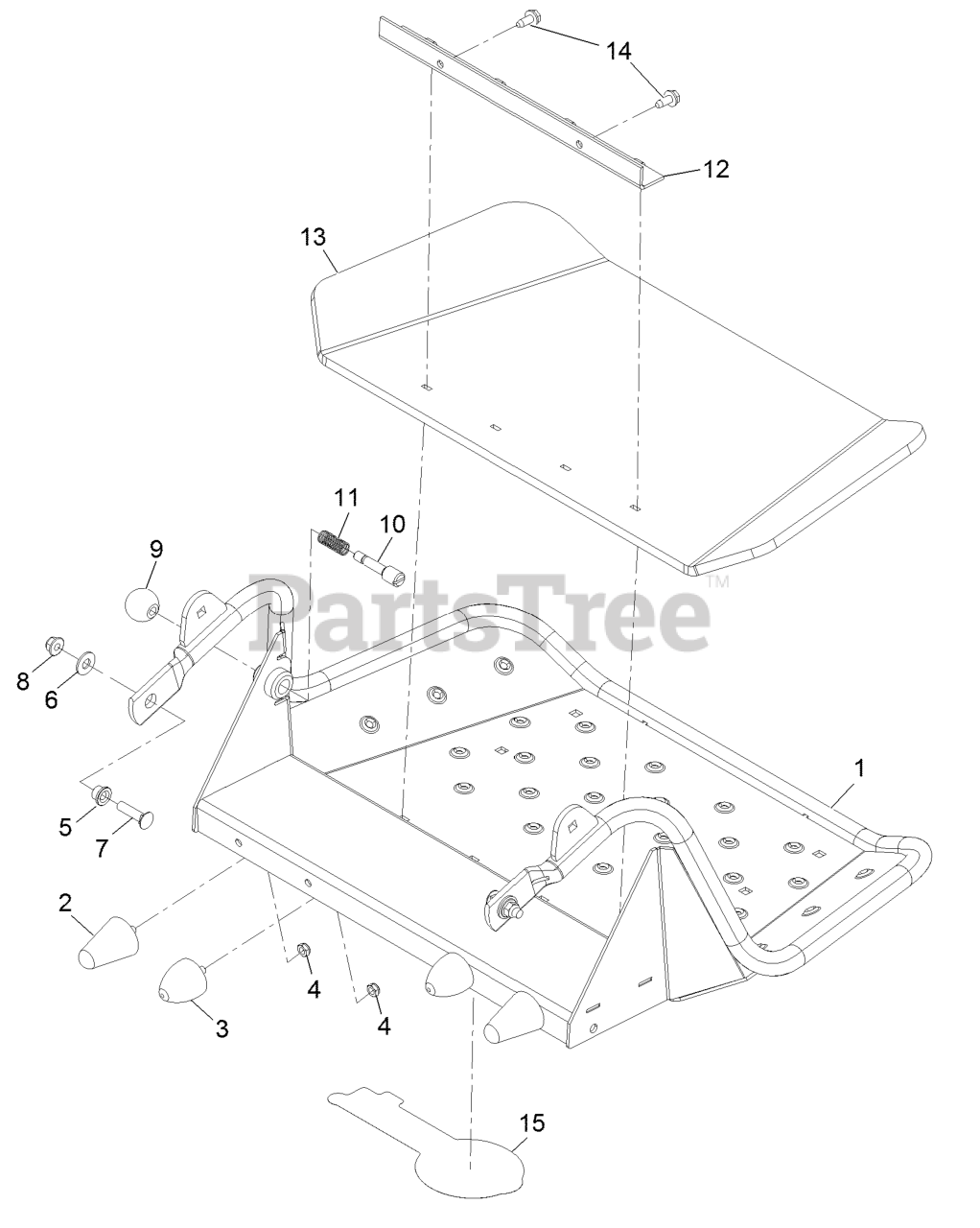

Platform Assembly No. 116-1804 Parts Diagram

  • Title

1

Exmark 117-9641-03

Platform ASM

$1241.99

$

Usually ships in 3-6 days

0

2

Exmark 114-1925

Bumper-Rubber

$29.99

$

In Stock, only 1 left!

0

3

Exmark 114-1926

Bumper-Rubber

$31.99

$

In Stock, Qty 20+

0

4

Exmark 3296-47

Nut-Nyloc 5/16-18 Thin

$4.49

$

In Stock, Qty 20+

0

5

Exmark 109-8788

Bushing-Flanged

$7.49

$

In Stock, Qty 20+

0

6

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

0

7

Exmark 3231-4

Bolt-Carriage 3/8-16 X 1 1/2

$4.49

$

In Stock, Qty 20+

0

8

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 1-603175

Knob-Ball

$12.99

$

In Stock, only 3 left!

0

10

Exmark 119-8650

Pin-Latch

$22.99

$

In Stock, only 1 left!

0

11

Exmark 114-5348

Spring

$2.99

$

In Stock, only 2 left!

0

12

Exmark 114-1920-03

Clamp-Shield

$46.99

$

Usually ships in 3-6 days

0

13

Exmark 126-7157

Mat-Platform

$124.99

$

In Stock, only 1 left!

0

14

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

15

Exmark 126-6991

Decal-Exmark Logo

$20.99

$

Usually ships in 3-6 days

0
