VXS730GKA48400 - Exmark 48" Vertex S-Series Stand-On Mower, Kawasaki FX730V (SN: 411294212 - 413950473) (Rev A) (2022) Controls and Tower Assembly Parts Diagram

48" Vertex S-Series Stand-On Mower, Kawasaki FX730V

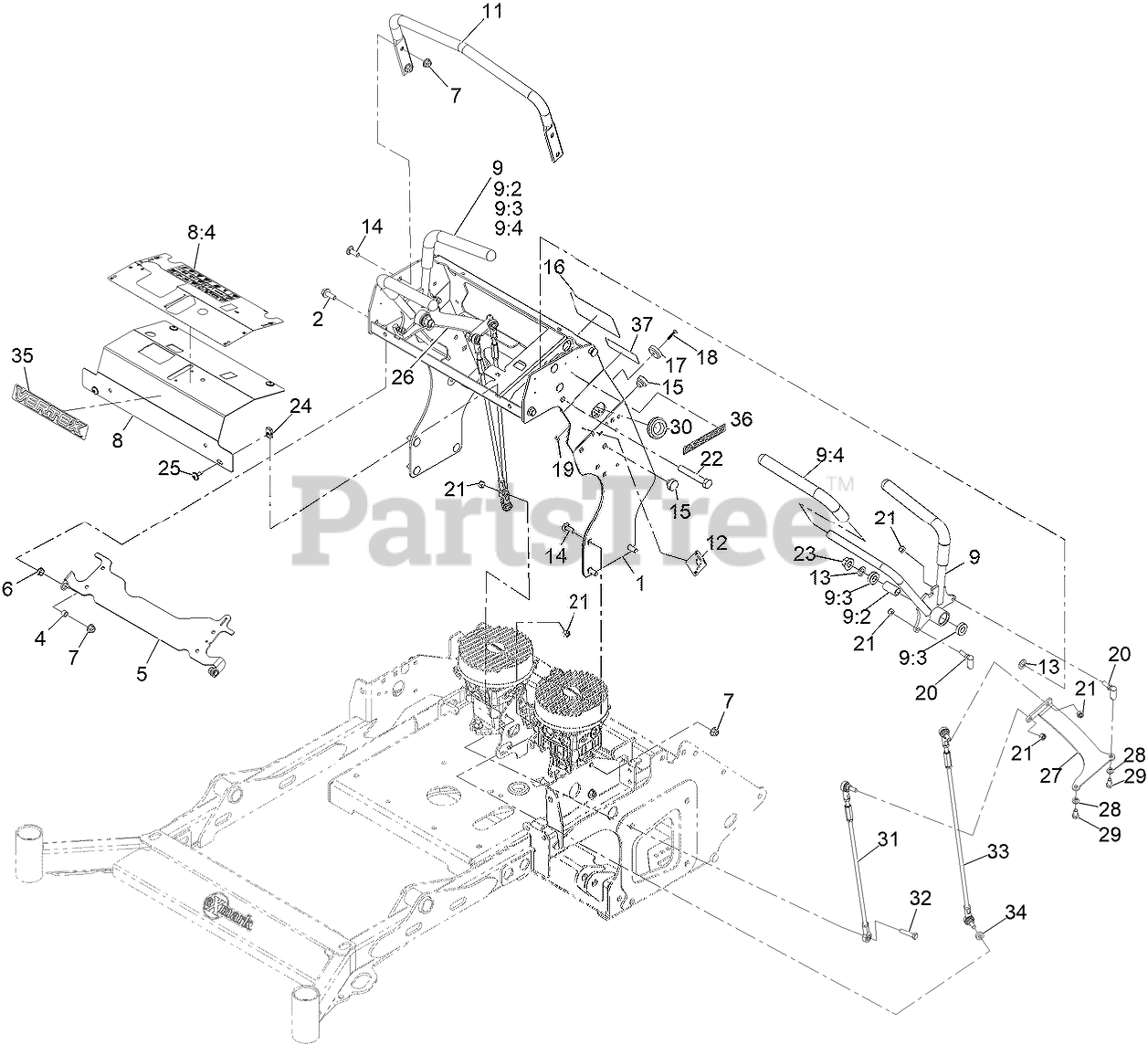

Controls and Tower Assembly Parts Diagram

  • Title

1

Exmark 142-6031-01

ASM-Tower [red]

$650.99

$

Usually ships in 3-6 days

0

2

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.99

$

In Stock, Qty 20+

0

4

Exmark 142-7468

SPACER-BRAKE PIVOT

$2.99

$

Usually ships in 3-6 days

0

5

Exmark 142-7749-03

Spacer-Brake Pivot

$40.99

$

Usually ships in 3-6 days

0

6

Exmark 116-1393

BUSHING,SNAP

$5.99

$

Usually ships in 3-6 days

0

7

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 142-6438

PANEL-CONTROL W/ DECAL
(Superseded to 146-5480)

$117.99

$

Usually ships in 3-6 days

0

8:4

Exmark 142-8045

DECAL-CONTROL PANEL

$

$

Not available

9

Exmark 142-6057

ASM-CTRL LEVER

$242.99

$

Usually ships in 3-6 days

0

9:2

Exmark 142-6579

SPACER

$4.99

$

Usually ships in 3-6 days

0

9:3

Exmark 52-2450

BEARING-WHEEL

$21.99

$

In Stock, Qty 20+

0

9:4

Exmark 116-2357

GRIP-HANDLE, CONTROL

$12.99

$

In Stock, only 2 left!

0

11

Exmark 142-6067-03

BAR-REFERENCE

$41.99

$

Usually ships in 3-6 days

0

12

Exmark 116-5988

DECAL-PARK BRAKE, CE

$15.99

$

Usually ships in 3-6 days

0

13

Exmark 98-1629

WASHER

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

15

Exmark 104-1412

BUMPER-RUBBER

$20.99

$

Usually ships in 3-6 days

0

16

Exmark 142-7432

DECAL-SERVICE AID

$5.49

$

Usually ships in 3-6 days

0

17

Exmark 142-7895

MAGNET-RARE EARTH THIGH PAD

$54.99

$

Usually ships in 3-6 days

0

18

Exmark 142-7830

SCREW FLAT HD #10-24X1.00

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 110-3145

NUT-LOCK

$1.49

$

Usually ships in 3-6 days

0

20

Exmark 2411-33

BALLJOINT-RH (W/GROMMET)

$28.99

$

Usually ships in 3-6 days

0

21

Exmark 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 6

0

22

Exmark 325-13

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

23

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 20+

0

24

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

25

Exmark 135-3494

SCREW, TORX

$2.99

$

In Stock, Qty 5

0

26

Exmark 142-6017-03

BRACKET-LINK CTRL LH

$25.99

$

Usually ships in 3-6 days

0

27

Exmark 142-6018-03

BRACKET-LINK CTRL RH

$25.99

$

Usually ships in 3-6 days

0

28

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

29

Exmark 3210-3

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

30

Exmark 108-3723

GROMMET

$9.49

$

Usually ships in 3-6 days

0

31

Exmark 142-8611

ASM-MOTION CONTROL SHORT

$57.99

$

Usually ships in 3-6 days

0

32

Exmark 3210-8

SCREW-HH

$4.49

$

In Stock, only 3 left!

0

33

Exmark 142-7545

ASM-MOTION CONTROL LONG
(Superseded to 146-0408)

$65.99

$

Usually ships in 3-6 days

0

34

Exmark 142-7724

SPACER

$3.99

$

Usually ships in 3-6 days

0

35

Exmark 142-8185

DECAL-VERTEX LOGO

$5.49

$

Usually ships in 3-6 days

0

36

Exmark 126-6998

Decal-S-Series

$6.99

$

Usually ships in 3-6 days

0

37

Exmark 142-8303

DECAL-FUSE

$3.99

$

Usually ships in 3-6 days

0
