VXS740EKC52400 - Exmark 52" Vertex S-Series Stand-On Mower, Kohler ECV740 (SN: 416150475 - 417930745) (Rev B) (2024) Engine Assembly Parts Diagram

52" Vertex S-Series Stand-On Mower, Kohler ECV740

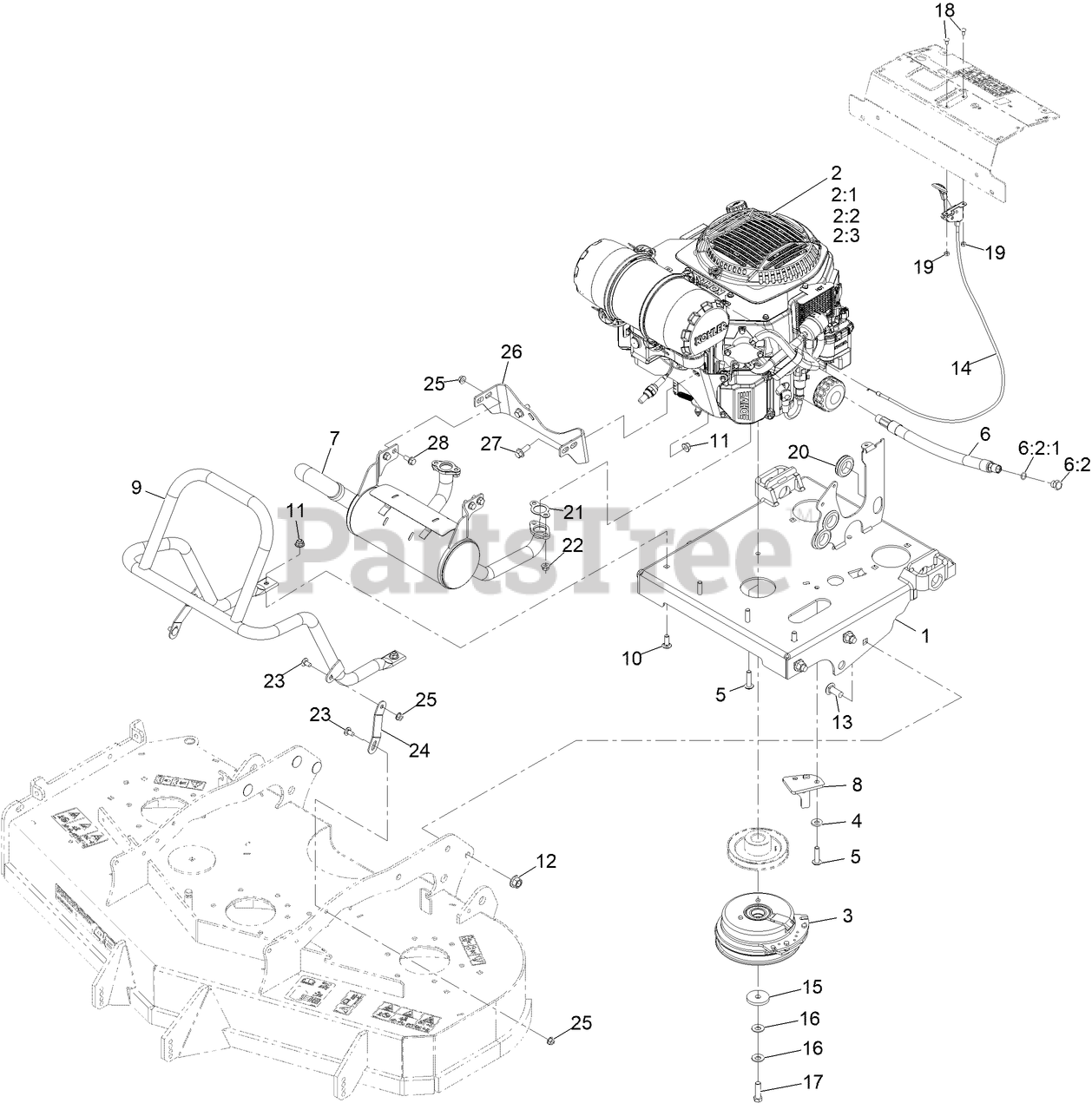

Engine Assembly Parts Diagram

  • Title

1

Exmark 146-3104-01

ASM-ENGINE DECK

$516.99

$

Usually ships in 3-6 days

0

2

Engine-Kohler, Ek-Ecv740-3070

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

$

$

Not available

2:1

Kohler 52 050 02-S Engine Oil Filter

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

$

$

Not available

2:2

Kohler 25 083 01-S Engine Air Filter

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

$

$

Not available

2:3

Kohler 25 083 04-S Safety Filter

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

$

$

Not available

3

Exmark 116-1604

USE 116-1620
(Superseded to 116-1620)

$392.99

$

In Stock, Qty 15

0

4

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

5

Exmark 126-0983

SCREW-BHTF

$5.99

$

In Stock, only 3 left!

0

6

Exmark 116-5108

OIL DRAIN HOSE ASM

$43.99

$

Usually ships in 3-6 days

0

6:2

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$9.49

$

In Stock, only 1 left!

0

6:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

7

Exmark 142-8063

MUFFLER- KOHLER, EFI
(Superseded to 146-4016)

$344.99

$

Usually ships in 3-6 days

0

8

Exmark 142-6567

ASM-CLUTCH ANCHOR

$20.99

$

Usually ships in 3-6 days

0

9

Exmark 142-6783-03

Tube-Guard Muffler

$186.99

$

Usually ships in 3-6 days

0

10

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 20+

0

13

Exmark 3233-26

SCREW-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 135-2169

CONTROL, THROTTLE

$37.99

$

In Stock, Qty 11

0

15

Exmark 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 6

0

16

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

17

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

$5.99

$

In Stock, Qty 11

0

18

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

19

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Exmark 108-3723

GROMMET

$9.49

$

Usually ships in 3-6 days

0

21

Exmark 110-6697

GASKET-EXHAUST

$7.49

$

Usually ships in 3-6 days

0

22

Exmark 68-9400

NUT-FLANGE

$2.99

$

In Stock, only 1 left!

0

23

Exmark 3230-18

SCREW-CARR

$5.99

$

In Stock, Qty 8

0

24

Exmark 142-7748-03

Strap, Muffler Guard

$6.99

$

Usually ships in 3-6 days

0

25

Exmark 32128-25

NUT-HF

$3.99

$

In Stock, Qty 5

0

26

Exmark 132-1168

BRACKET-MUFFLER

$44.99

$

Usually ships in 3-6 days

0

27

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.99

$

In Stock, Qty 20+

0

28

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0
