VXX999EKA72600 - Exmark 72" Vertex X-Series Stand-On Mower, Kawasaki FX1000 (SN: 416150475 - 417930745) (Rev A) (2024) RH Hydro Assembly Parts Diagram

72" Vertex X-Series Stand-On Mower, Kawasaki FX1000

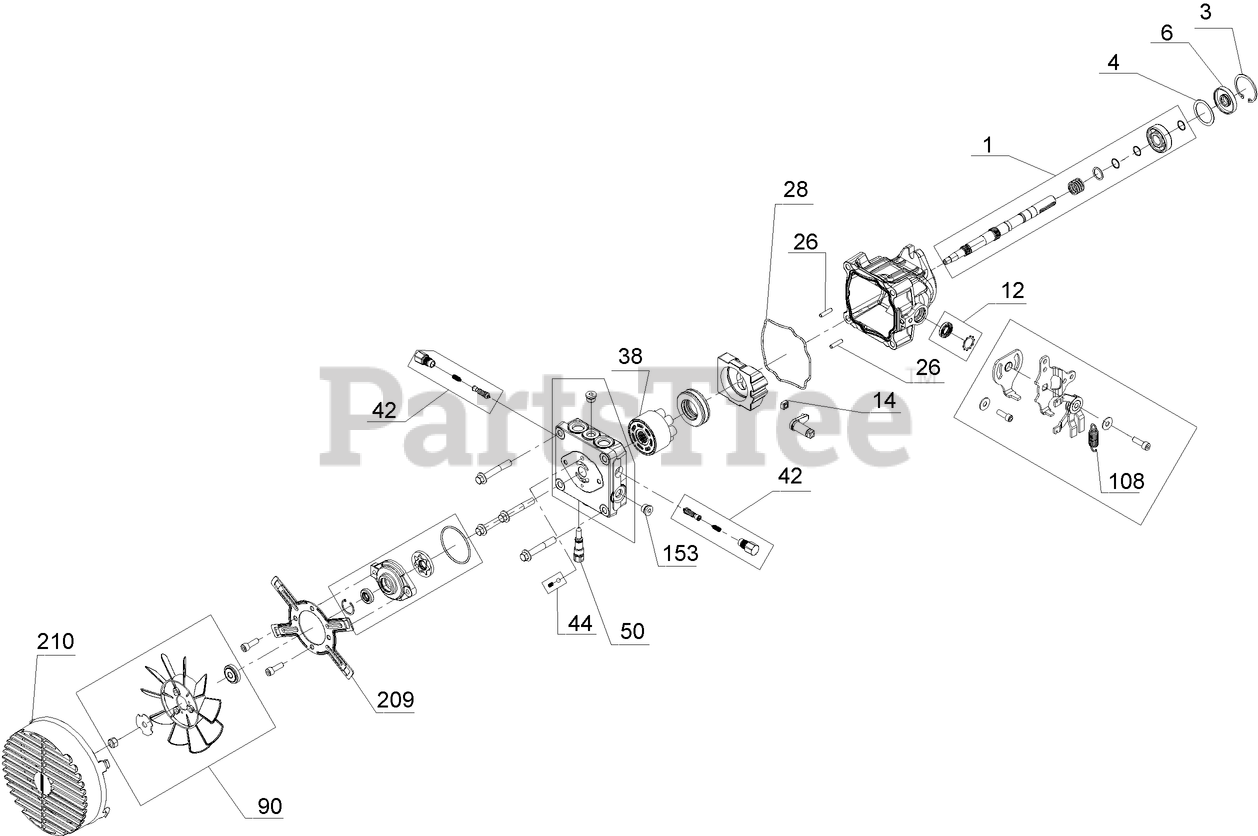

RH Hydro Assembly Parts Diagram

  • Title

1

Exmark 109-2863

KIT-INPUT SHAFT AND BEARING

$625.99

$

Usually ships in 3-6 days

0

3

Exmark 136-5414

Ring-Retaining

$11.99

$

Usually ships in 3-6 days

0

4

Exmark 136-5415

Washer-Flat

$3.99

$

Usually ships in 3-6 days

0

6

Exmark 136-5416

SEAL-LIP

$32.99

$

Usually ships in 3-6 days

0

12

Exmark 114-8155

Trunnion Seal Kit

$20.99

$

Usually ships in 3-6 days

0

14

Exmark 143-0817

Guide-Slot

$

$

Currently unavailable

26

Exmark 106-8753

Pin-Headless, Straight

$36.99

$

Usually ships in 3-6 days

0

28

Exmark 136-5417

O-Ring

$14.99

$

Usually ships in 3-6 days

0

38

Exmark 120-1092

Cylinder Block Kit

$256.99

$

Usually ships in 3-6 days

0

42

Exmark 131-4753

KIT-SHOCK VALVE

$102.99

$

Usually ships in 3-6 days

0

44

Exmark 106-8760

CHARGE RELIEF VALVE KIT

$23.99

$

Usually ships in 3-6 days

0

50

Exmark 106-8759

BYPASS VALVE KIT

$117.99

$

In Stock, only 3 left!

0

90

Exmark 136-5418

FAN HUB KIT

$84.99

$

Usually ships in 3-6 days

0

100

Exmark 109-2866

PR OVERHAUL SEAL KIT

Note: Not illustrated

$149.99

$

Usually ships in 3-6 days

0

108

Exmark 115-8307

SPRING-EXTENSION

$26.99

$

Usually ships in 3-6 days

0

153

Exmark 104-2189

PLUG-THREAD, STRAIGHT

$29.99

$

In Stock, only 2 left!

0

209

Exmark 136-5419

Bracket-Fan

$42.99

$

Usually ships in 3-6 days

0

210

Exmark 116-0917

GUARD-FAN, PUMP

$78.99

$

Usually ships in 3-6 days

0
