VXX999GKA60600 - Exmark 60" Vertex X-Series Stand-On Mower, Kawasaki FX1000 (SN: 416150475 - 417930745) (Rev A) (2024) Deck Lift Assembly Parts Diagram

60" Vertex X-Series Stand-On Mower, Kawasaki FX1000

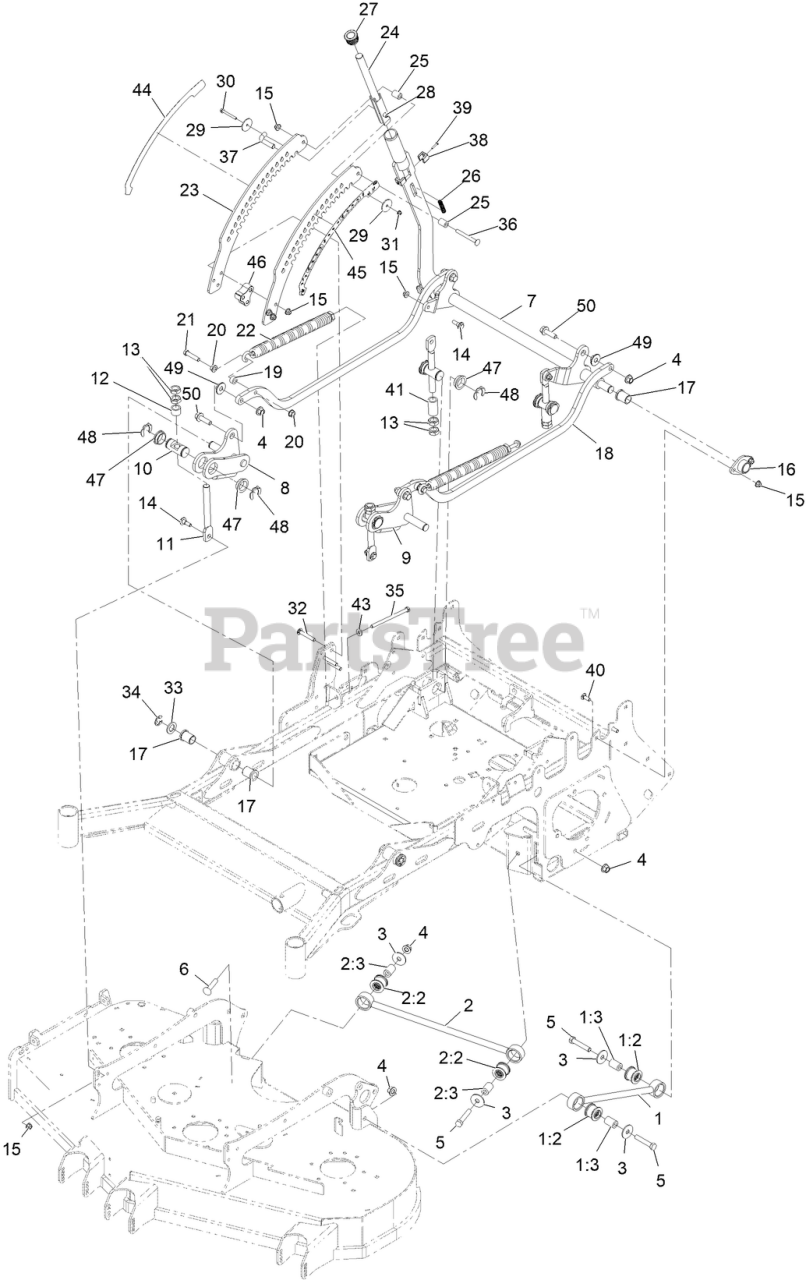

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 142-3269

ASM, DECK STRUT

$47.99

$

Usually ships in 3-6 days

0

1:2

Exmark 135-2466

BUSHING-RUBBER

$8.49

$

Usually ships in 3-6 days

0

1:3

Exmark 109-5010

SPACER

$14.99

$

In Stock, Qty 20+

0

2

Exmark 109-5013

PANHARD ROD ASM

$159.99

$

In Stock, only 4 left!

0

2:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.99

$

In Stock, Qty 20+

0

2:3

Exmark 109-5010

SPACER

$14.99

$

In Stock, Qty 20+

0

3

Exmark 86-1990

WASHER-THRUST

$4.49

$

In Stock, only 2 left!

0

4

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 20+

0

5

Exmark 325-11

SCREW-HH

$3.49

$

In Stock, Qty 5

0

6

Exmark 3233-34

SCREW-CARR

$10.99

$

In Stock, Qty 5

0

7

Exmark 146-0569-03

CROSS SHAFT -DECKLIFT-REAR

$699.99

$

Usually ships in 3-6 days

0

8

Exmark 146-2219-03

WELD-ARM-DECKLIFT-FRONT-RH
(Superseded to 146-5488-03)

$97.99

$

Usually ships in 3-6 days

0

9

Exmark 146-2218-03

WELD-ARM-DECKLIFT-FRONT-LH

$

$

Not available

10

Exmark 146-2208

TRUNION-DECKLIFT GROOVED

$30.99

$

Usually ships in 3-6 days

0

11

Exmark 146-3072

LINK-DECKLIFT

$26.99

$

Usually ships in 3-6 days

0

12

Exmark 142-7940

SPACER-DECKLIFT

$6.49

$

In Stock, Qty 20+

0

13

Exmark 3220-7

NUT-JAM

$4.99

$

In Stock, Qty 20+

0

14

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.99

$

In Stock, Qty 20+

0

15

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 146-0466

Support-HOC Shaft
(Superseded to 146-5176)

$20.99

$

Usually ships in 3-6 days

0

17

Exmark 142-4794

BUSHING-FLANGED

$17.99

$

In Stock, Qty 20+

0

18

Exmark 146-0576-03

LINK-HOC 52-60

$109.99

$

Usually ships in 3-6 days

0

19

Exmark 116-2695

SPACER

$21.99

$

Usually ships in 3-6 days

0

20

Exmark 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

21

Exmark 109-9065

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

22

Exmark 116-0000

SPRING-EXTENSION

$153.99

$

Usually ships in 3-6 days

0

23

Exmark 146-0693

PLATE-HOC

$47.99

$

Usually ships in 3-6 days

0

24

Exmark 146-0699

ASM-PLUNGER-HOC

$70.99

$

Usually ships in 3-6 days

0

25

Exmark 106-5620

TUBE-INTERLOCK

$18.99

$

Usually ships in 3-6 days

0

26

Exmark 146-1198

SPRING

$2.99

$

Usually ships in 3-6 days

0

27

Exmark 146-0707

PLUG-PLASTIC HOC

$2.99

$

Usually ships in 3-6 days

0

28

Exmark 146-0714

SPACER

$9.49

$

Usually ships in 3-6 days

0

29

Exmark 146-0713

SPACER-HOC

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 138-3326

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

31

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

32

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

33

Exmark 103-0357

WASHER

$2.99

$

Usually ships in 3-6 days

0

34

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

35

Exmark 323-58

BOLT-TAP, HH

$5.99

$

Usually ships in 3-6 days

0

36

Exmark 3231-11

SCREW-CARR

$5.99

$

In Stock, only 3 left!

0

37

Exmark 116-5584

PIN-HOC

$5.49

$

In Stock, Qty 20+

0

38

Exmark 146-1140

CHANNEL-HOC GUIDE

$2.99

$

Usually ships in 3-6 days

0

39

Exmark 32105-29

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

40

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

41

Exmark 142-8897

SPACER 1.13 O.D. X .81 I.D. X 2.05L

$26.99

$

In Stock, only 1 left!

0

43

Exmark 43-0940

SPACER

$5.99

$

In Stock, Qty 20+

0

44

Exmark 146-1969

DECAL-HEIGHT OF CUT,OUTER

$28.99

$

Usually ships in 3-6 days

0

45

Exmark 146-2052

DECAL-HEIGHT OF CUT-INNER

$28.99

$

Usually ships in 3-6 days

0

46

Exmark 146-1382

SPACER-HOC VERTEX

$11.99

$

Usually ships in 3-6 days

0

47

Exmark 146-2207

BUSHING-FLANGED HOC

$6.49

$

Usually ships in 3-6 days

0

48

Exmark 146-2209

E-RING WIDE GRIP

$2.99

$

Usually ships in 3-6 days

0

49

Exmark 135-3954

SPACER

$16.99

$

In Stock, only 2 left!

0

50

Exmark 130-6481

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0
