VXX999GKA60600 - Exmark 60" Vertex X-Series Stand-On Mower, Kawasaki FX1000 (SN: 417930746 & Above) (Rev B) (2025) Controls and Tower Assembly Parts Diagram

60" Vertex X-Series Stand-On Mower, Kawasaki FX1000

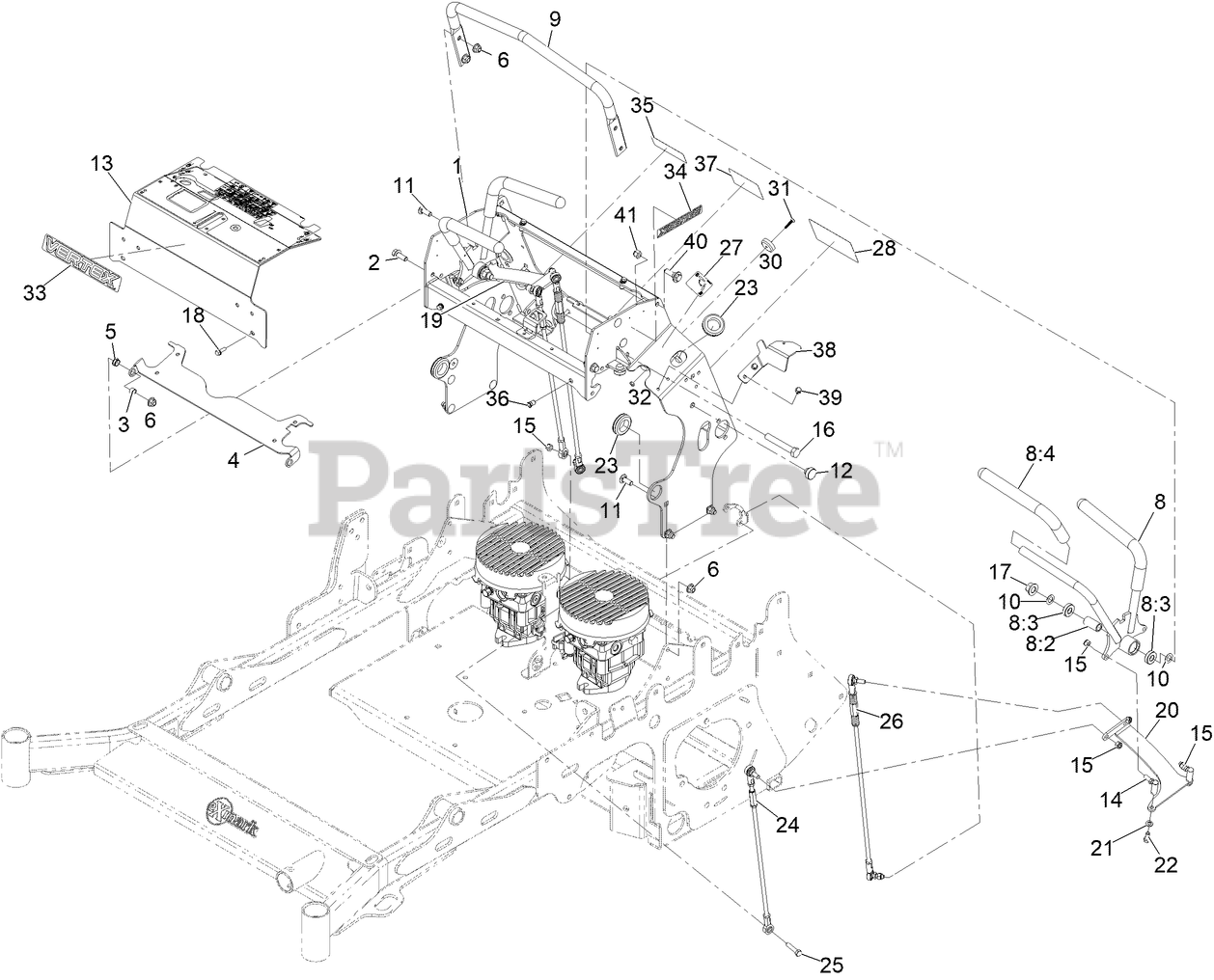

Controls and Tower Assembly Parts Diagram

  • Title

1

Exmark 146-5288-01

ASM-Tower Weld [red]

$388.99

$

Usually ships in 3-6 days

0

2

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.99

$

In Stock, Qty 20+

0

3

Exmark 142-7468

SPACER-BRAKE PIVOT

$2.99

$

Usually ships in 3-6 days

0

4

Exmark 146-0881-03

PLATE-MOTION CNTRL LOCK

$40.99

$

Usually ships in 3-6 days

0

5

Exmark 116-1393

BUSHING,SNAP

$5.99

$

Usually ships in 3-6 days

0

6

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 146-5338

ASM-Ctrl Lever

$61.99

$

Usually ships in 3-6 days

0

8:2

Exmark 142-6579

SPACER

$4.99

$

Usually ships in 3-6 days

0

8:3

Exmark 109-8020

BEARING-BALL
(Superseded to 52-2450)

$21.99

$

In Stock, Qty 20+

0

8:4

Exmark 116-2357

GRIP-HANDLE, CONTROL

$12.99

$

In Stock, only 2 left!

0

9

Exmark 142-6067-03

BAR-REFERENCE

$41.99

$

Usually ships in 3-6 days

0

10

Exmark 98-1629

WASHER

$1.49

$

Usually ships in 3-6 days

0

11

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

12

Exmark 104-1412

BUMPER-RUBBER

$20.99

$

Usually ships in 3-6 days

0

13

Exmark 146-5481

ASM-Ctrl Pnl W/Dcl Non-EFI

$

$

Currently unavailable

14

Exmark 2411-33

BALLJOINT-RH (W/GROMMET)

$28.99

$

Usually ships in 3-6 days

0

15

Exmark 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 6

0

16

Exmark 325-13

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

17

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 20+

0

18

Exmark 119-1138

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

19

Exmark 142-6017-03

BRACKET-LINK CTRL LH

$25.99

$

Usually ships in 3-6 days

0

20

Exmark 142-6018-03

BRACKET-LINK CTRL RH

$25.99

$

Usually ships in 3-6 days

0

21

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

22

Exmark 3210-3

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

23

Exmark 108-3723

GROMMET

$9.49

$

Usually ships in 3-6 days

0

24

Exmark 142-8611

ASM-MOTION CONTROL SHORT

$57.99

$

Usually ships in 3-6 days

0

25

Exmark 3210-8

SCREW-HH

$4.49

$

In Stock, only 3 left!

0

26

Exmark 146-0408

ASM-MOTION CONTROL LONG

$65.99

$

Usually ships in 3-6 days

0

27

Exmark 116-5988

DECAL-PARK BRAKE, CE

$15.99

$

Usually ships in 3-6 days

0

28

Exmark 146-2161

DECAL-SERVICE AID

$7.49

$

Usually ships in 3-6 days

0

30

Exmark 142-7895

MAGNET-RARE EARTH THIGH PAD

$54.99

$

Usually ships in 3-6 days

0

31

Exmark 142-7830

SCREW FLAT HD #10-24X1.00

$1.49

$

Usually ships in 3-6 days

0

32

Exmark 110-3145

NUT-LOCK

$1.49

$

Usually ships in 3-6 days

0

33

Exmark 142-8185

DECAL-VERTEX LOGO

$5.49

$

Usually ships in 3-6 days

0

34

Exmark 126-6999

DECAL-X-SERIES

$7.49

$

Usually ships in 3-6 days

0

35

Exmark 142-8303

DECAL-FUSE

$3.99

$

Usually ships in 3-6 days

0

36

Exmark 138-2760

Nut-Clinch, Hex

$2.49

$

Usually ships in 3-6 days

0

37

Exmark 116-8253

DECAL-DRIVE RELEASE

$3.49

$

Usually ships in 3-6 days

0

38

Exmark 146-3064-03

BRACKET-FUEL LINE CLAMP LH

$16.99

$

Usually ships in 3-6 days

0

39

Exmark 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0

40

Exmark 614672

SCREW-SHOULDER, HWH

$3.49

$

In Stock, only 1 left!

0

41

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
