Y1-16OE02 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (1990) Engine And Fuel Systems Parts Diagram

Zero-Turn Mower, Drive Unit Only

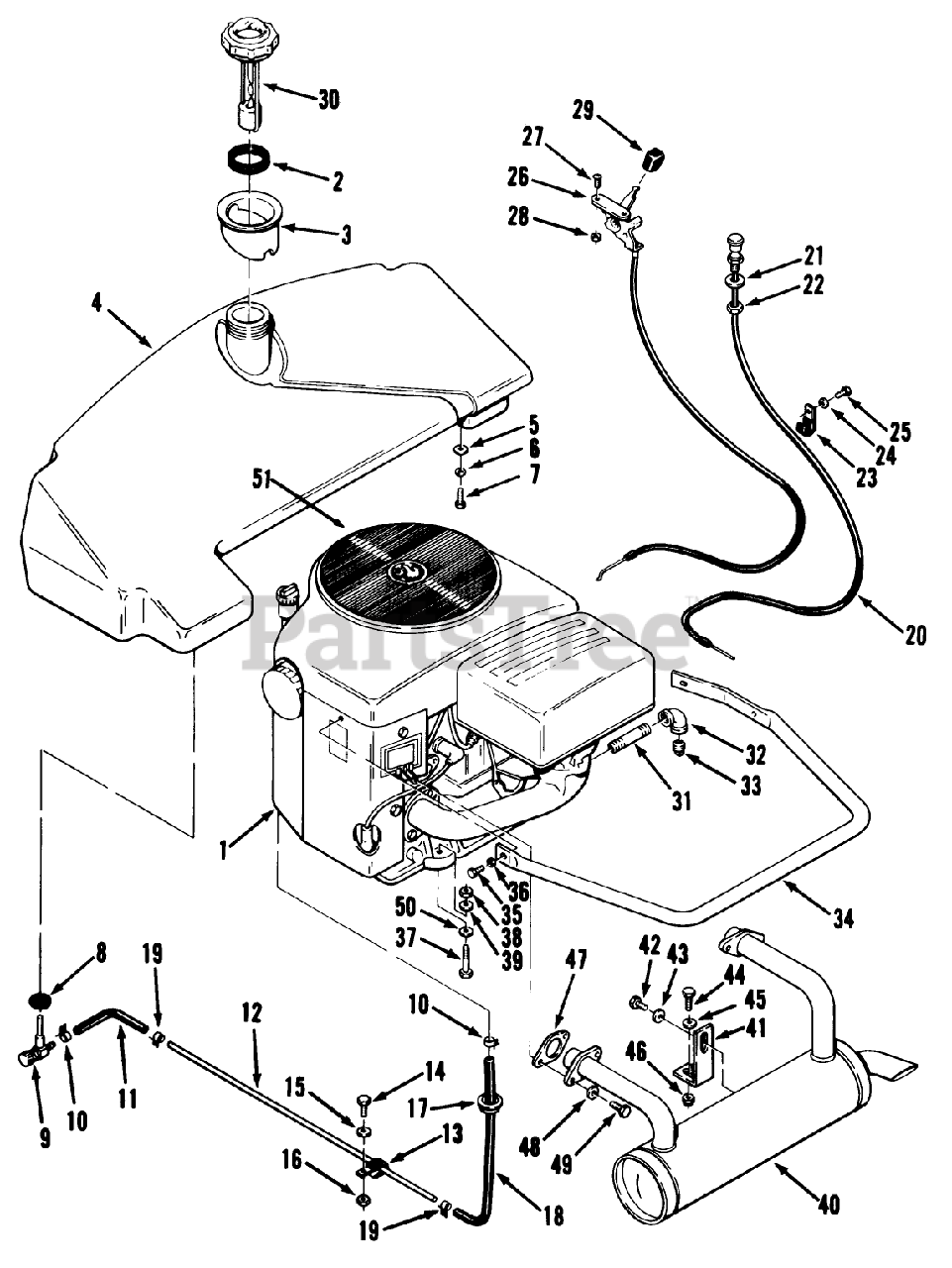

Engine And Fuel Systems Parts Diagram

  • Title

1

Toro 117293

DISCONTINUED

$

$

Not available

2

Toro 106931

DISCONTINUED

$

$

Not available

3

Toro 115741

FUNNEL-FUEL TANK

$

$

Not available

4

Toro 116363

TANK-FUEL ASS'Y

$565.99

$

Usually ships in 3-6 days

0

5

Toro 920038

See Supercession: 3256-3
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

6

Toro 920082

See Supercession: 3253-4
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

7

Toro 908016

See Supercession: 322-2
(Superseded to 322-2)

$2.99

$

In Stock, Qty 20+

0

8

Toro 104047

See Supercession: 46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

9

Toro 104048

VALVE-FUEL

$41.99

$

In Stock, Qty 15

0

10

Toro 108898

DISCONTINUED
(Superseded to 950154)

$

$

Not available

11

Toro 111914

See Supercession: 109-0678
(Superseded to 109-0678)

$5.99

$

Usually ships in 3-6 days

0

12

Toro 115780

TUBE FUEL LINE

$

$

Not available

13

Toro 111392

J-CLIP

$2.99

$

Usually ships in 3-6 days

0

14

Toro 908017

See Supercession: 322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

15

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

16

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.99

$

In Stock, Qty 20+

0

17

Toro 938031

BUSHING-NYLON 1.093

$

$

Not available

18

Toro 115781

See Supercession: 100061
(Superseded to 100061)

$

$

Not available

19

Toro 117412

DISCONTINUED

$

$

Not available

20

Toro 116289

CONTROL-CHOKE

$129.99

$

Usually ships in 3-6 days

0

21

Toro 920237

See Supercession: 9202374
(Superseded to 9202374)

$0.99

$

Usually ships in 3-6 days

0

22

Toro 109530

NUT-HEX PALNUT

$1.49

$

In Stock, only 2 left!

0

23

Toro 8830

CLIP

$

$

Not available

24

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$15.99

$

In Stock, only 4 left!

0

25

Toro 908001

See Supercession: 321-2
(Superseded to 321-2)

$3.99

$

In Stock, only 3 left!

0

26

Toro 116266

CONTROL-THROTTLE

$

$

Not available

27

Toro 910792

See Supercession: 910790
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

28

Toro 915740

See Supercession: 3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

29

Toro 116454

See Supercession: 66-0120
(Superseded to 66-0120)

$6.49

$

In Stock, only 3 left!

0

30

Toro 116336

DISCONTINUED

$

$

Not available

31

Toro 116159

NIPPLE-3/8 X 2.5

$

$

Not available

32

Toro 114764

ELBOW 3/8 90 DEG

$17.99

$

Usually ships in 3-6 days

0

33

Toro 943420

See Supercession: 281-2
(Superseded to 281-2)

$2.99

$

Usually ships in 3-6 days

0

34

Toro 116708

GUARD-AIR CLEANER

$254.99

$

Usually ships in 3-6 days

0

35

Toro 908002

See Supercession: 321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

36

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$15.99

$

In Stock, only 4 left!

0

37

Toro 908021

See Supercession: 322-7
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

38

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.99

$

In Stock, Qty 20+

0

39

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

40

Toro 116030

EXHAUST-MUFFLER

$956.99

$

Usually ships in 3-6 days

0

41

Toro 116029

BRACKET-MUFFLER

$

$

Not available

42

Toro 908015

See Supercession: 322-1
(Superseded to 322-1)

$0.99

$

In Stock, Qty 9

0

43

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

44

Toro 908017

See Supercession: 322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

45

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

46

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.99

$

In Stock, Qty 20+

0

47

Toro 114214

See Supercession: 57-9210
(Superseded to 57-9210)

$42.99

$

In Stock, only 2 left!

0

48

Toro 920082

See Supercession: 3253-4
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

49

Toro 911067

SHCS 5/16-18X.750

$

$

Not available

50

Toro 116531

WASHER

$

$

Not available

51

Toro NN10551

See Supercession: 82-0620
(Superseded to 82-0620)

$

$

Not available
