YT 4220 SE (13AP91KS897) - Columbia 42" Yard Tractor (2013) Engine Accessories (Twin) Parts Diagram

42" Yard Tractor

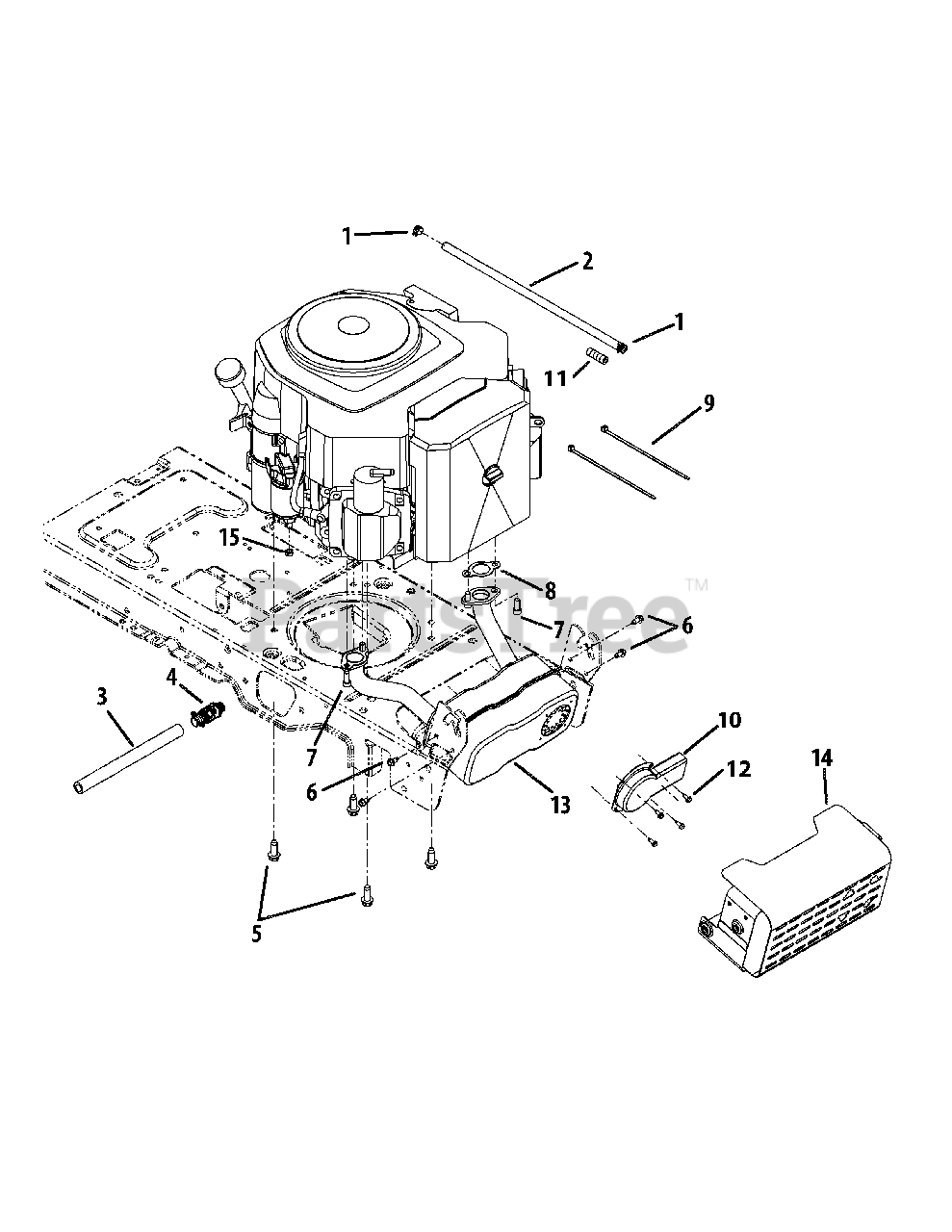

Engine Accessories (Twin) Parts Diagram

  • Title

1

MTD 726-0205

Hose Clamp

$4.49

$

In Stock, Qty 18

0

2

MTD 751-10349-16

Fuel Line

$33.99

$

In Stock, Qty 7

0

3

MTD 751-3141-14

Oil Drain Hose

$12.99

$

In Stock, Qty 8

0

4

MTD 951-10517A

Oil Drain

$25.99

$

In Stock, Qty 20+

0

5

MTD 710-04683A

Screw 3/8 x 1.00
(Superseded to 710-04683C)

$6.99

$

In Stock, Qty 20+

0

6

MTD 710-0599

Washer 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-1314A

Screw 5/16-18 x .75

$4.99

$

In Stock, Qty 20+

0

8

MTD KH-24-041-49-S

Exhaust Gasket
(Superseded to KH-25-041-17-S)

$2.99

$

In Stock, Qty 20+

0

9

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 12

0

10

MTD 751-10353

Long Muffler Deflector
(Superseded to 751-11053B)

$5.99

$

In Stock, Qty 20+

0

11

MTD 751-12089-28

Vent Hose

$9.49

$

In Stock, Qty 5

0

12

MTD 710-0227

Screw 8-18 x .50

$4.49

$

In Stock, Qty 20+

0

13

MTD 751-10528A

Muffler
(Superseded to 951-10528B)

$169.99

$

In Stock, Qty 18

0

14

MTD 683-04549-0637

Muffler Shield Assembly
(Superseded to 683-05460A-0637)

$84.99

$

In Stock, only 4 left!

0

15

MTD 712-0271

Sems Nut 1/4-20

$4.99

$

In Stock, Qty 19

0
