YTH 1848 XPT (960430007-00) - Husqvarna 48" Yard Tractor (2006-03) Engine Parts Diagram

48" Yard Tractor

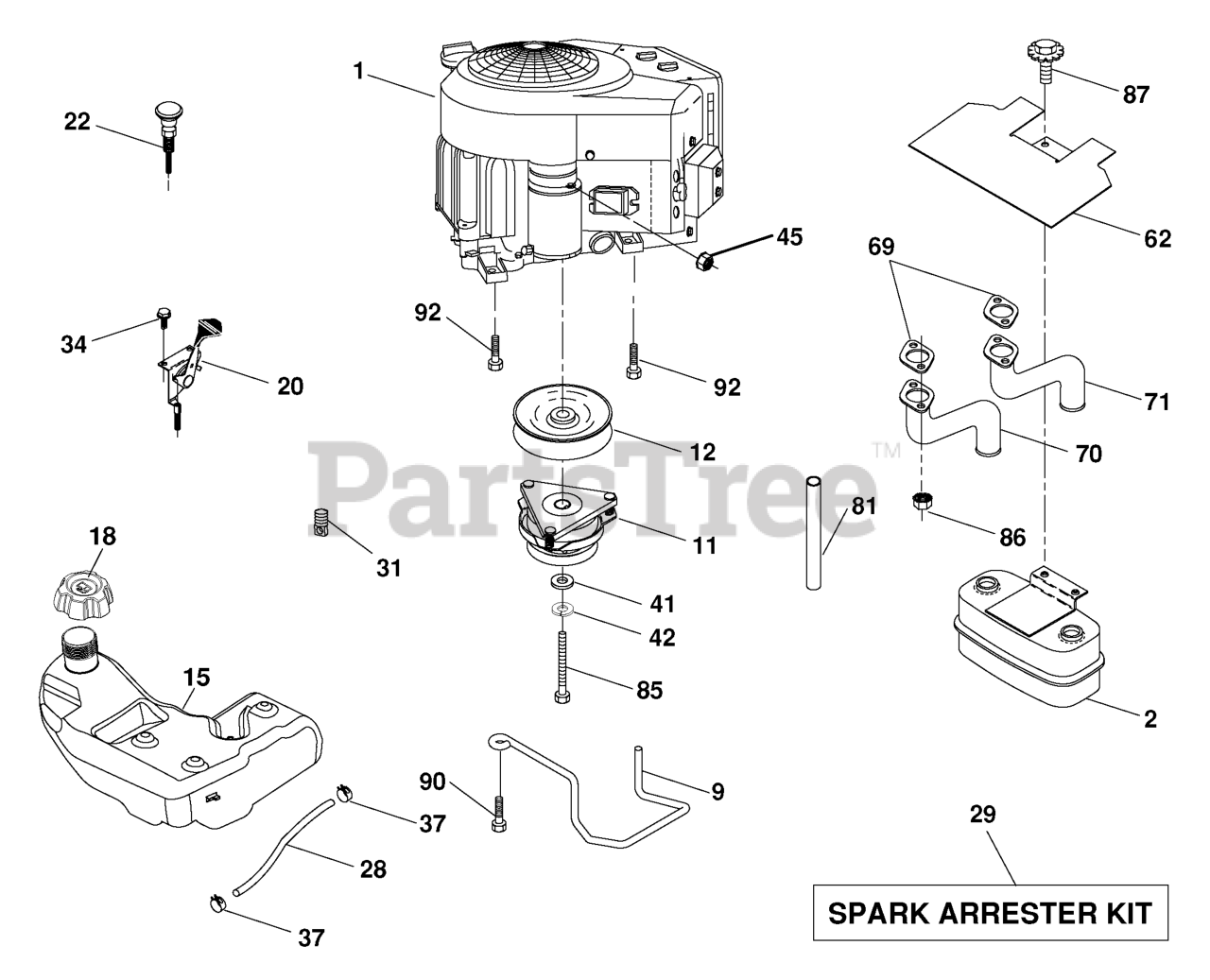

Engine Parts Diagram

  • Title

1

Engine Kawa Model No.FH531V

$

$

Not available

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$53.99

$

In Stock, only 2 left!

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$14.99

$

In Stock, only 2 left!

0

11

Husqvarna 532179334

CLUTCH ELECTRIC
(Superseded to 532414336)

$395.99

$

In Stock, Qty 7

0

12

Husqvarna 532194338

PULLEY.ASM.ENG.OGURA.3

$

$

Not available

15

Husqvarna 532193499

TANK.FUEL.4GAL

$101.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532194267

CAP.FUEL.TANK.3"GREY
(Superseded to 532439645)

$21.99

$

In Stock, only 3 left!

0

20

Husqvarna 532170803

CONTROL, THROTTLE

$33.99

$

In Stock, only 3 left!

0

22

Husqvarna 532191964

CONTROL THROTTLE
(Superseded to 532190784)

$

$

Not available

28

Husqvarna 532400414

LINE.FUEL.1/4" ROLL
(Superseded to 587044864)

$27.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

31

Husqvarna 532145006

PUSH CLIP

$3.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

41

Husqvarna 532126197

WASHER

$8.49

$

In Stock, Qty 20+

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 4 left!

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

69

Gasket

Note: (Order From Eng. Mfgr.)

$

$

Not available

70

Husqvarna 532176067

EXHAUST.TUBE.LH.KAWASAKI.

$131.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532176068

EXHAUST.TUBE.RH.KAWASAKI.

$131.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 9

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.99

$

In Stock, Qty 12

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.99

$

In Stock, only 4 left!

0

87

Husqvarna 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$3.99

$

In Stock, only 1 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 19

0

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

In Stock, only 2 left!

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 18

0
