Z 248 F - Husqvarna 48" Zero-Turn Mower (Original) IGNITION SYSTEM Parts Diagram

48" Zero-Turn Mower

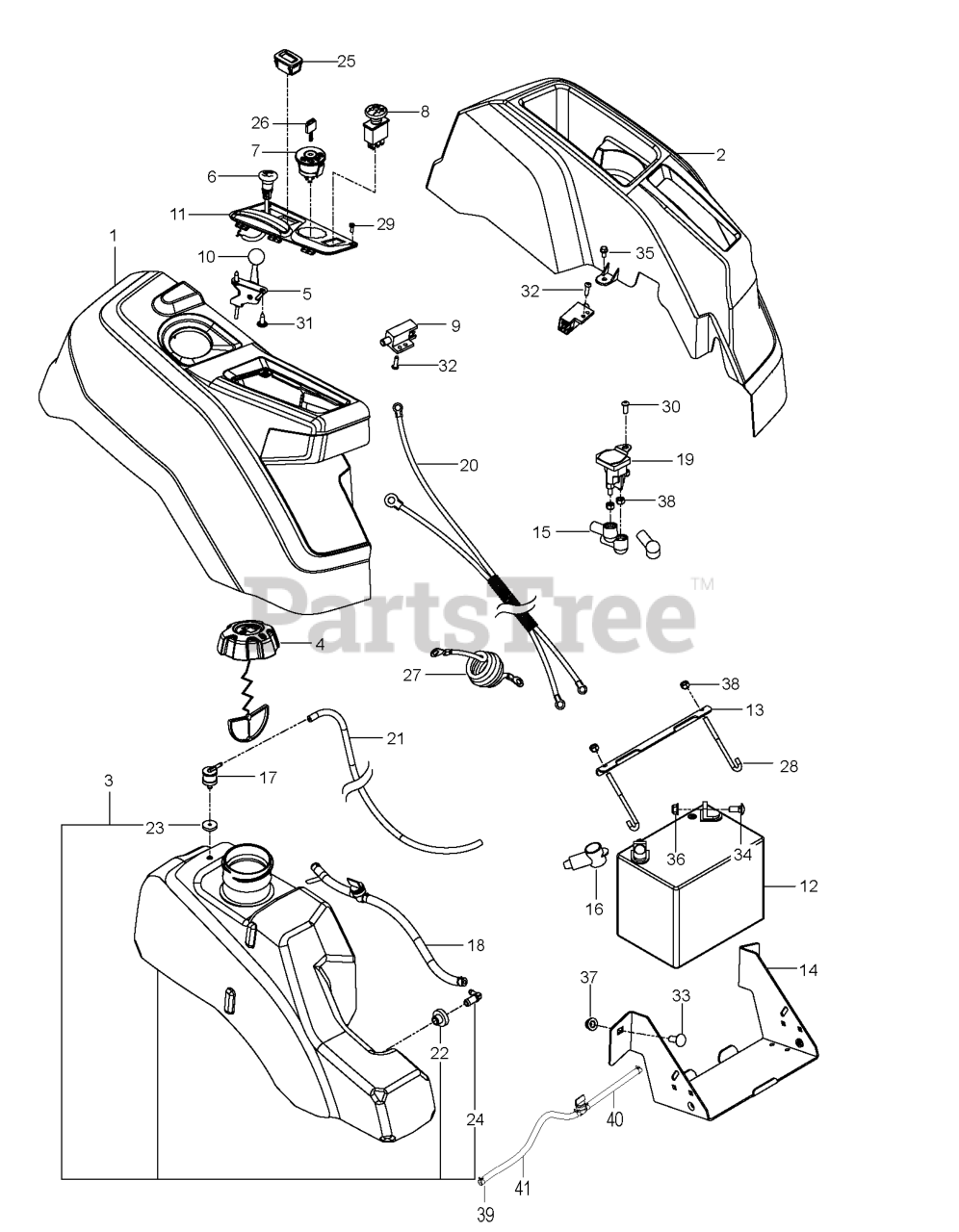

IGNITION SYSTEM Parts Diagram

  • Title

11

Husqvarna 585522701

CONTROL.PANEL.RZ.REFRESH.RH

$13.99

$

In Stock, only 2 left!

0

24

Husqvarna 532139277

STEM FUEL TANK

$7.49

$

In Stock, Qty 20+

0

28

Husqvarna 588839401

HOOK.J.BATTERY

$3.99

$

In Stock, Qty 9

0

9

Husqvarna 587601501

SWITCH.INTLK.RZ.RFRSH.BUTTON

$17.99

$

In Stock, Qty 20+

0

17

Husqvarna 576618101

VALVE.FUEL.CHECK

$30.99

$

Usually ships in 3-10 days

0

21

Husqvarna 587044550

HOSE.3/16".VAPOR.LINE.50"LGTH

$14.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$35.99

$

In Stock, Qty 20+

0

27

Husqvarna 586108201

CABLE BATTERY POS RZ

$11.99

$

In Stock, Qty 7

0

Husqvarna 586548101

HARNESS.LED.LIGHT.RZ

Note: NOT SHOWN

$29.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

26

Husqvarna 532140401

KEY MLD GEN DELTA

Note: For 970458901-01, 967844801-02, 970458901-00

$7.49

$

In Stock, Qty 20+

0

32

Husqvarna 574822701

SCR #10-24 X .75 SKT HD BLK

$3.99

$

In Stock, only 3 left!

0

25

Husqvarna 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$

$

Not available

23

Husqvarna 532437492

GROMMET.ROV.SENTEC
(Superseded to 584648201)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539112438

THROTTLE CABLE
(Superseded to 597873201)

$53.99

$

Usually ships in 3-10 days

0

13

Husqvarna 510030003

BRACKET.PNT.MOUNT.BATTERY.EDIP
(Superseded to 510030001)

$65.99

$

In Stock, only 2 left!

0

18

Husqvarna 586123906

FUEL.HOSE.SHUT.OFF.ASM.10".18"

$17.99

$

Usually ships in 3-10 days

0

Husqvarna 586337301

HARNESS.MAIN.RZ.WITHOUT.BRAKE

Note: NOT SHOWN

$101.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532411933

KEY.CHAIN.BLISTER.PACK.GEN.USA
(Superseded to 532411935)

Note: For 97046750100

$11.99

$

In Stock, Qty 20+

0

35

Husqvarna 596135801

Bolts

Note: For 97046750100

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 582609602

BOX.PNT.BATTERY.RZ.EDIP

$41.99

$

Usually ships in 3-10 days

0

35

Husqvarna 817490408

SCREW
(Superseded to 596437001)

Note: For 970458901-01, 967844801-02, 970458901-00

$3.99

$

In Stock, Qty 10

0

Husqvarna 532109748

RELAY.ASSY.T

Note: NOT SHOWN

$23.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532003645

BUSHING OUTLET T

$4.99

$

In Stock, Qty 20+

0

1

Husqvarna 585522801

CONSOLE.ASSY.RZ.REFRESH.RH
(Superseded to 598602601)

$131.99

$

Usually ships in 3-10 days

0

2

Husqvarna 586621201

CONSOLE.LH.ASM
(Superseded to 586621202)

$119.99

$

In Stock, only 3 left!

0

20

Husqvarna 587198601

HARNESS.BTTRY.CABLE.RZ.REFRESH

$29.99

$

In Stock, only 1 left!

0

40

Husqvarna 587044810

HOSE.1/4".LOW.PERM.FUEL.LN.10"

Note: For 97046750100

$13.99

$

In Stock, only 2 left!

0

16

Husqvarna 539102759

INSULATOR

$5.99

$

In Stock, Qty 8

0

36

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: For 97046750100

$7.49

$

In Stock, Qty 20+

0

33

Husqvarna 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 2 left!

0

30

Husqvarna 539111229

SCR 1/4-20 X 5/8 BTN SKT HD ZD
(Superseded to 596789701)

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 587044818

HOSE 1/4" LOW PERMEATION FUEL

Note: For 97046750100

$11.99

$

In Stock, Qty 8

0

36

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

Note: For 970458901-01, 967844801-02, 970458901-00

$7.49

$

In Stock, Qty 20+

0

3

Husqvarna 589924702

TANK.ASM3"NECK.NOCAP.NOSHDRZ18
(Superseded to 589924705)

Note: Fits 2.75" filler neck

$

$

Not available

34

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

Note: For 970458901-01, 967844801-02, 970458901-00

$2.49

$

In Stock, only 2 left!

0

10

Husqvarna 539133049

KNOB.ROUND.BALL.BLACK

$9.49

$

In Stock, Qty 6

0

34

Husqvarna 595901601

GSPW Bolts

Note: For 97046750100

$2.49

$

In Stock, only 2 left!

0

37

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 8

0

19

Husqvarna 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$33.99

$

In Stock, Qty 20+

0

15

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$7.49

$

In Stock, only 4 left!

0

3

Husqvarna 589924702

TANK.ASM3"NECK.NOCAP.NOSHDRZ18
(Superseded to 589924705)

Note: Fits 2.75" filler neck. Subs to 589924706

$

$

Not available

31

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$3.99

$

In Stock, only 2 left!

0

4

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

Note: Fits 2.75" filler neck

$23.99

$

In Stock, only 4 left!

0

39

Husqvarna 532123487

HOSE CLAMP

Note: For 97046750100

$3.99

$

In Stock, Qty 8

0

6

Husqvarna 586881501

CHOKE.PUSH-IN.STYLE

$27.99

$

In Stock, only 2 left!

0

12

Husqvarna 539102463

BATTERY WET NOT SELLABLE
(Superseded to 579411601)

$

$

Not available

29

Husqvarna 545227101

SCREW 6-19X.437

$3.99

$

In Stock, only 4 left!

0

8

Husqvarna 582107602

RP SWITCH.PTO.TERMINAL.STD.RED
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

4

Husqvarna 529989702

FUEL CAP
(Superseded to 529989701)

Note: Fits 2.00" filler neck

$29.99

$

Usually ships in 3-10 days

0
