Z 254 F - Husqvarna 54" Zero-Turn Mower ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

54" Zero-Turn Mower

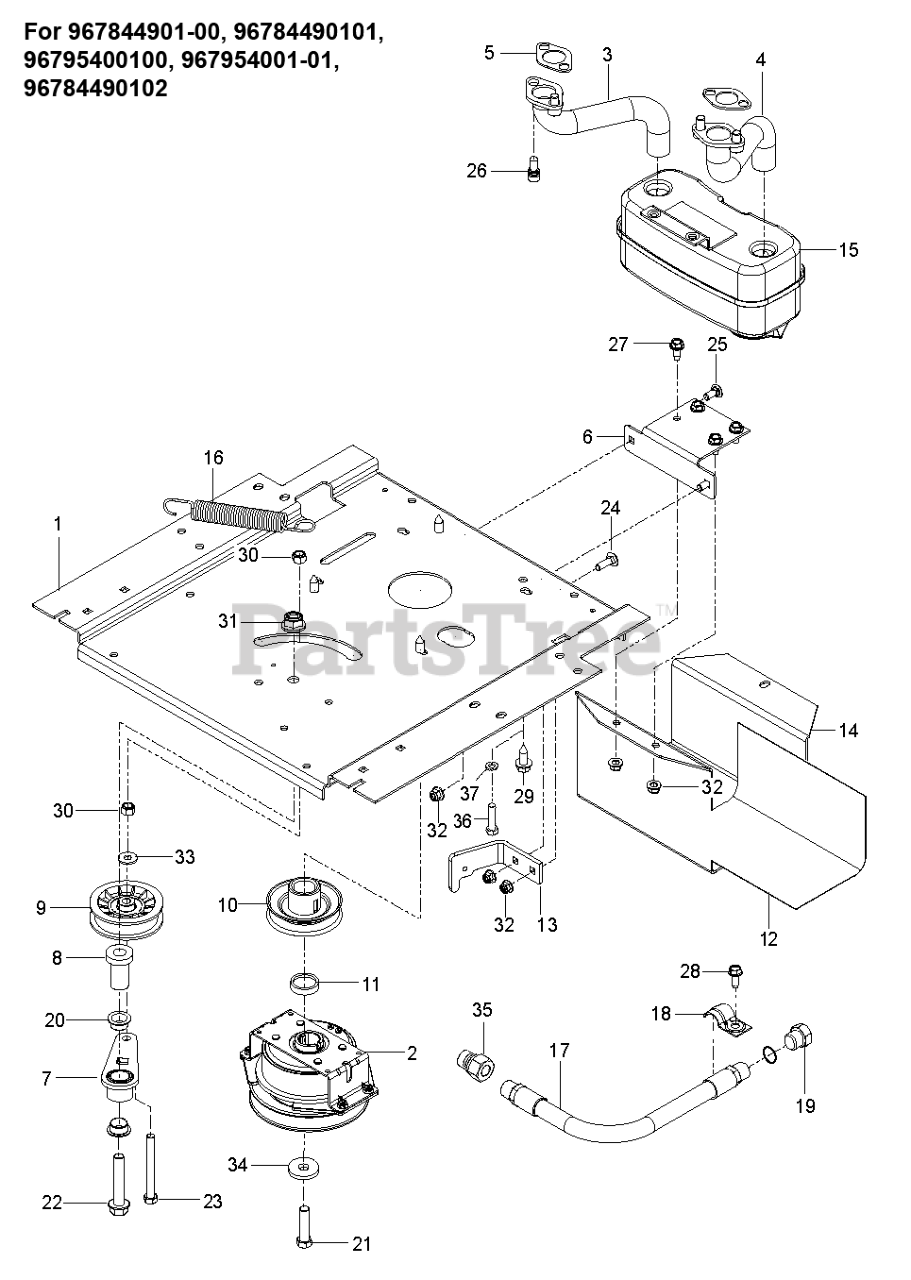

ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

  • Title

1

Husqvarna 593898602

PLATE ENGINE; RZ, 23IN BLACK
(Superseded to 598736102)

Note: For 96784490101, 96795400100, 967954001-01, 96784490102

$107.99

$

Usually ships in 3-10 days

0

1

Husqvarna 588017102

PLATE.ENGINE.PNT.23"FRAME.EDIP
(Superseded to 593898602)

Note: For 967844901-00

$107.99

$

Usually ships in 3-10 days

0

21

Husqvarna 581332803

CLUTCH BOLT7/16-20X2.5 GR524HR
(Superseded to 581332806)

$7.49

$

In Stock, Qty 12

0

3

Husqvarna 583954801

PIPE.EXHAUST.RH.CV18/20

Note: For 967844901-00, 96784490101, 96784490102

$22.99

$

In Stock, only 3 left!

0

20

Husqvarna 501603701

BEARING.FLANGED.PLASTIC.3/4ID

$7.49

$

In Stock, Qty 20+

0

15

Husqvarna 539131604

MUFFLER ASM TWIN

$53.99

$

In Stock, Qty 20+

0

18

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

23

Husqvarna 874520656

HCS 3/8-16X3-1/2 TAPBLT GR5 ZD
(Superseded to 596433901)

$3.99

$

In Stock, Qty 6

0

19

Husqvarna 585807101

PLUG OIL DRAIN

Note: For 967844901-00, 96795400100, 967954001-01

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532448145

ARM IDLER
(Superseded to 583593901)

$13.99

$

In Stock, Qty 9

0

22

Husqvarna 582539501

BOLT.FLANGE.1/2-13 X 2.75.GRD5
(Superseded to 582539502)

$7.49

$

In Stock, only 1 left!

0

12

Husqvarna 539132859

HEAT SHIELD

$21.99

$

In Stock, only 2 left!

0

34

Husqvarna 532126197

WASHER

$8.49

$

In Stock, Qty 20+

0

28

Husqvarna 817490410

SCR 1/4-20X5/8 HEX SELF TAP ZD
(Superseded to 596637301)

$3.99

$

In Stock, only 1 left!

0

4

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

Note: For 96795400100, 967954001-01

$33.99

$

In Stock, only 2 left!

0

29

Husqvarna 817120616

SCREW 3/8-16X1

Note: For 967844901-00, 96784490101, 96784490102

$5.99

$

In Stock, Qty 18

0

35

Husqvarna 522599001

ADAPTER, OIL DRAIN
(Superseded to 522599002)

Note: For 96795400100, 967954001-01

$

$

Not available

25

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$2.49

$

In Stock, only 2 left!

0

5

Husqvarna 532186054

GASKET.EXHAUST.KOHL.CV18-CV26

Note: For 967844901-00, 96784490101, 96784490102

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539110311

PULLEY, IDLER RAKE & ZTR

$17.99

$

In Stock, Qty 20+

0

Husqvarna 589543901

KIT.ARM.IDLER.RZ

Note: For 96784490101, 96784490102

$43.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

13

Husqvarna 587633302

CLUTCH.STOP.OGURA LCC.BLACK

$

$

Not available

24

Husqvarna 539990208

RHSNB 5/16C X 1
(Superseded to 595901501)

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 587241601

CLUTCH.OGURA.5.0PD.GT1.5A-EH07

$299.99

$

In Stock, only 2 left!

0

37

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

Note: For 96795400100, 967954001-01

$3.99

$

In Stock, Qty 20+

0

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

Note: For 96795400100, 967954001-01

$3.99

$

In Stock, only 4 left!

0

33

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.99

$

In Stock, Qty 20+

0

000000000

Note: For 96795400100, 967954001-01. Engine, Kawasaki FR691V 23 HP, For engine replacement parts, see a Kawasaki dealer.

$

$

Not available

27

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

Note: For 96795400100, 967954001-01

$33.99

$

In Stock, only 2 left!

0

30

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 587660101

SPACER.SPACER.625 W/OGURA.LCC

$7.49

$

In Stock, Qty 17

0

4

Husqvarna 583954501

PIPE.EXHAUST.LH.CV18/20

Note: For 967844901-00, 96784490101, 96784490102

$26.99

$

In Stock, only 1 left!

0

17

Husqvarna 584825501

HOSE.ASSEMBLY.OIL.DRAIN

$39.99

$

In Stock, only 2 left!

0

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 596031501)

Note: For 96795400100, 967954001-01

$2.49

$

In Stock, Qty 20+

0

31

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 581886702

BRACKET MUFFLER MS431BLK

$26.99

$

Usually ships in 3-10 days

0

14

Husqvarna 587451202

GUARD.MUFFLER.WO.TOW.HITCHX431

$23.99

$

In Stock, only 2 left!

0

10

Husqvarna 587537401

PULLEY.ENGINE

$31.99

$

In Stock, Qty 18

0

16

Husqvarna 532196105

SPRING, DECK DRIVE

$7.49

$

In Stock, Qty 20+

0

Husqvarna 589543901

KIT.ARM.IDLER.RZ

$43.99

$

Usually ships in 3-10 days

0

26

Husqvarna 596134201

Screws

Note: For 967844901-00

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 874780620

BOLT
(Superseded to 874760620)

Note: For 96795400100, 967954001-01

$5.99

$

In Stock, only 4 left!

0

8

Husqvarna 582538901

SPINDLE.IDLER
(Superseded to 582538902)

$5.99

$

In Stock, Qty 20+

0

000000000

Note: For 967844901-00, 96784490101, 96784490102. Engine, Kohler KT745 26 HP. For engine replacement parts, see a Kohler dealer.

$

$

Not available

26

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18
(Superseded to 596134202)

Note: For 96784490101, 96784490102

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 532178151

GASKET

Note: For 96795400100, 967954001-01. NOT SHOWN.

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 501603701

BEARING.FLANGED.PLASTIC.3/4ID

Note: For 96784490101, 96784490102

$7.49

$

In Stock, Qty 20+

0
