Z 254 - Husqvarna 54" Zero-Turn Mower STEERING Parts Diagram

54" Zero-Turn Mower

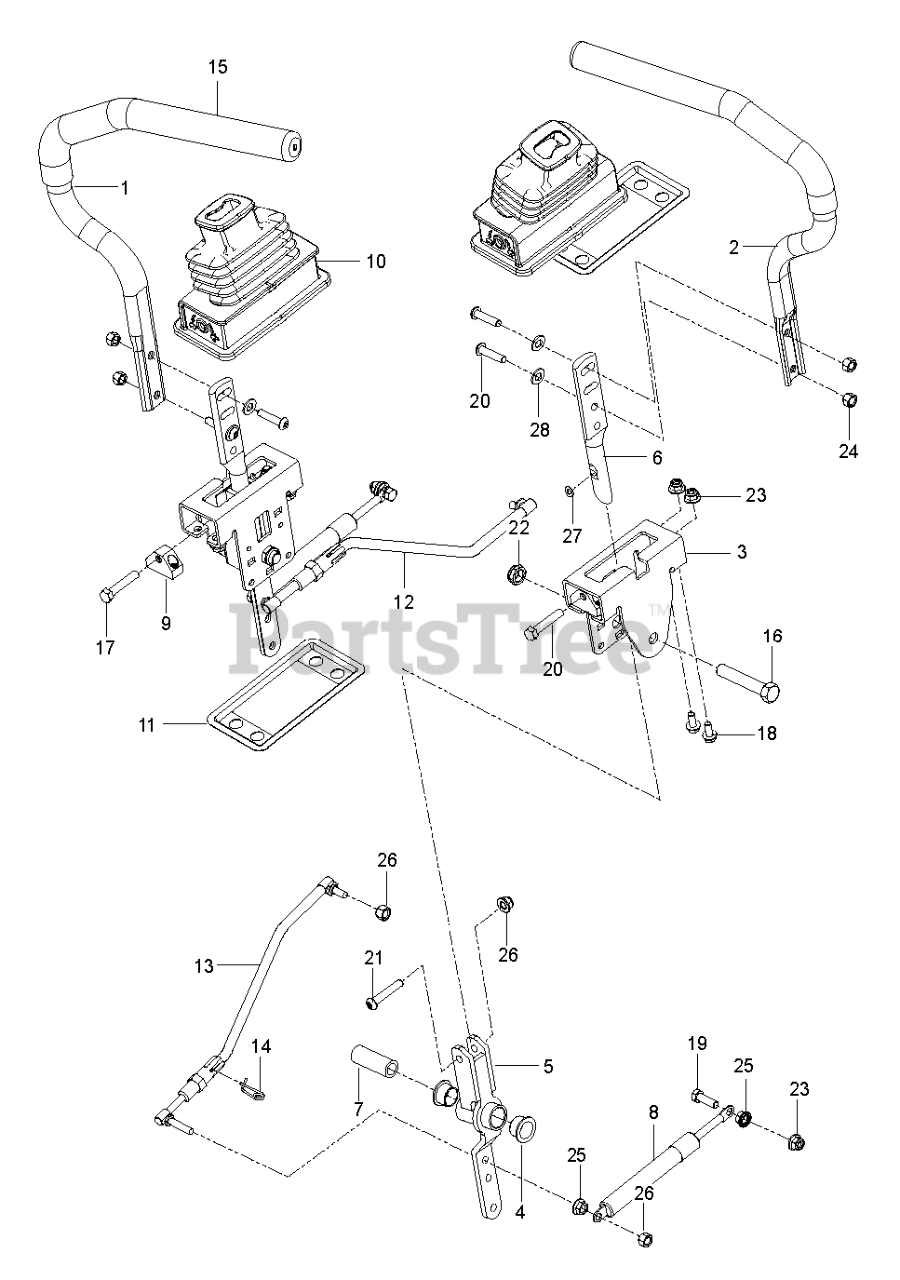

STEERING Parts Diagram

  • Title

7

Husqvarna 584927201

SPACER.PIVOT.CONTROL

$5.99

$

In Stock, Qty 15

0

2

Husqvarna 598851704

TUBE RZ CONTROL LEVER LEFT MS

Note: fits 967844601-00, 970467601-00

$59.99

$

In Stock, Qty 20+

0

21

Husqvarna 587885301

SCREW.CAP.SOCKET.6PT.5/16-18

Note: For 967045201-01, 967844601-00, 970467601-00

$3.49

$

In Stock, only 1 left!

0

19

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, Qty 15

0

14

Husqvarna 532199849

RETAINER.CLIP.SPRING.S

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 525392902

PURCHASE THE COMPLETE LEVER

$

$

Not available

9

Husqvarna 581437501

BLOCK TRACKING CONTROL ZTR
(Superseded to 581437502)

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 539108010

NUT 1/2-13 HEX JM NYL

$3.99

$

In Stock, only 2 left!

0

27

Husqvarna 587614201

WASHER.11/32ID.11/16OD.116THIC

$3.49

$

In Stock, only 2 left!

0

26

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 539990585

NUT 5/16C WHIZ
(Superseded to 596039201)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 819111116

WASHER
(Superseded to 596204101)

Note: For all EXCEPT 967045201-01, 967844601-00, 970467601-00

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 874780844

HCS 1/2-13 X 2-3/4 GD 5 ZD
(Superseded to 596434301)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 585986101

SCREW.SHAKEPROOF.1.25.BLACK

$3.49

$

In Stock, Qty 15

0

24

Husqvarna 585986001

NYLOCK.NUT.5/16-18 BLACK
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 598851703

TUBE RZ CONTROL LEVER RIGHT MS

Note: fits 967844601-00, 970467601-00

$59.99

$

In Stock, only 2 left!

0

28

Husqvarna 586309101

WASHER.11/32X11/16 BLACK
(Superseded to 819111116)

Note: For 967045201-01, 967844601-00, 970467601-00

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 590090804

TUBE.LEVER.CONTROL.ZTR.LT.428
(Superseded to 598851704)

$59.99

$

In Stock, Qty 20+

0

5

Husqvarna 576140301

LEVER CONTROL PIVOT

$26.99

$

In Stock, Qty 20+

0

20

Husqvarna 585985901

BUTTONHEAD.5/16-18X1.125.BLACK

$3.99

$

In Stock, Qty 14

0

23

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

4

Husqvarna 539131518

BEARING, FLANGE

$13.99

$

In Stock, Qty 10

0

6

Husqvarna 587601702

CONTROL.LEVER.HANDLE
(Superseded to 587601704)

$15.99

$

Usually ships in 3-10 days

0

13

Husqvarna 588605001

ROD.ASM.LH.ADJUSTABLE
(Superseded to 588605002)

$27.99

$

Usually ships in 3-10 days

0

12

Husqvarna 588604901

ROD.ASM.RH.ADJUSTABLE
(Superseded to 588604902)

$29.99

$

In Stock, only 4 left!

0

8

Husqvarna 539102720

DAMPENER
(Superseded to 548932401)

$95.99

$

In Stock, Qty 15

0

1

Husqvarna 590090803

TUBE.LEVER.CONTROL.ZTR.RT.428
(Superseded to 598851703)

$59.99

$

In Stock, only 2 left!

0

10

Husqvarna 585831601

BOOT.STEERING.LEVER

$27.99

$

In Stock, only 1 left!

0

11

Husqvarna 585488202

CONTROL.BOOT.FLANGE.X431

$9.99

$

In Stock, only 1 left!

0

21

Husqvarna 576850402

SCREW 5/16-18 X 1 3/4 BTN-HD

Note: For all EXCEPT 967045201-01, 967844601-00, 970467601-00

$4.99

$

In Stock, Qty 7

0

3

Husqvarna 585124705

BRACKET.CONTROLS.ZTR.X431

$20.99

$

Usually ships in 3-10 days

0
