Z 454x - Husqvarna 54" Zero-Turn Mower CONTROL PANEL Parts Diagram

54" Zero-Turn Mower

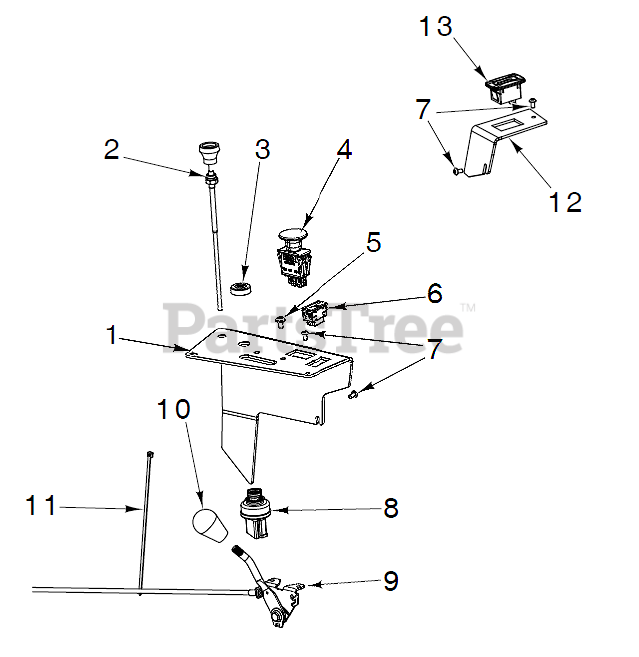

CONTROL PANEL Parts Diagram

  • Title

6

Husqvarna 592872703

Gauges

Note: "FUEL GAUGE LED, SMALL LOW"

$23.99

$

Usually ships in 3-10 days

0

4

Husqvarna 589887201

SWITCH.PTO.10AMP.SEALED.6P.SPS

Note: "SWITCH PTO, 10 AMP,"

$77.99

$

In Stock, only 2 left!

0

3

Husqvarna 539103178

CAP IGNITION NUT

Note: NUT CAP COVER

$5.99

$

In Stock, only 1 left!

0

2

Husqvarna 574206907

Cables
(Superseded to 531077201)

Note: CABLE CHOKE T

$15.99

$

In Stock, only 2 left!

0

5

Husqvarna 532199855

SCREW T-30 1/4-20 X
(Superseded to 583254901)

Note: SCREW 1/4-20 X 1/2 IN PAN HEAD

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539976856

TIE, PLASTIC

Note: TIE WRAP

$6.99

$

Usually ships in 3-10 days

0

Husqvarna 582042802

Solenoids

Note: Not Shown (Solenoid)

$33.99

$

In Stock, Qty 20+

0

13

Husqvarna 594919101

GUAGE.SRVCMNDR.HRMTR.

Note: HOUR METER

$

$

Not available

1

Husqvarna 590210301

DECALZTR.CONTROLPANEL.PZ500.RH

Note: Decal only for Control Panel

$8.49

$

In Stock, only 2 left!

0

Husqvarna 595840603

Harnesses

Note: Not Shown (Main Harness)

$275.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539114341

SCR #10-24 X 3/8 SKT HD BLK OX

Note: SCREW #10-24 X 3/8 SOCKET HEAD

$4.99

$

In Stock, only 3 left!

0

1

Husqvarna 593982402

Control Panels

Note: CONTROL PANEL

$41.99

$

Usually ships in 3-10 days

0

9

Husqvarna 597523906

Throttles

Note: THROTTLE MZ/PZ

$65.99

$

Usually ships in 3-10 days

0

12

Husqvarna 593981602

Control Panels

Note: CONTROL PANEL LH

$8.49

$

Usually ships in 3-10 days

0

Husqvarna 574455501

KEY, IGNITION

Note: Not Shown (Key)

$6.99

$

In Stock, Qty 20+

0

Husqvarna 595840701

Harnesses

Note: Not Shown (Harness)

$65.99

$

Usually ships in 3-10 days

0

8

Husqvarna 574455401

SWITCH, IGNITION, INDAK

Note: SWITCH IGNITION

$41.99

$

In Stock, Qty 20+

0

Husqvarna 597759301

Harnesses

Note: Not Shown (Park Brake Harness)

$11.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539132624

KNOB - SHIFT

Note: SHIFT KNOB

$7.99

$

In Stock, Qty 10

0
