Z 560x - Husqvarna 60" Zero-Turn Mower CONSOLE Parts Diagram

60" Zero-Turn Mower

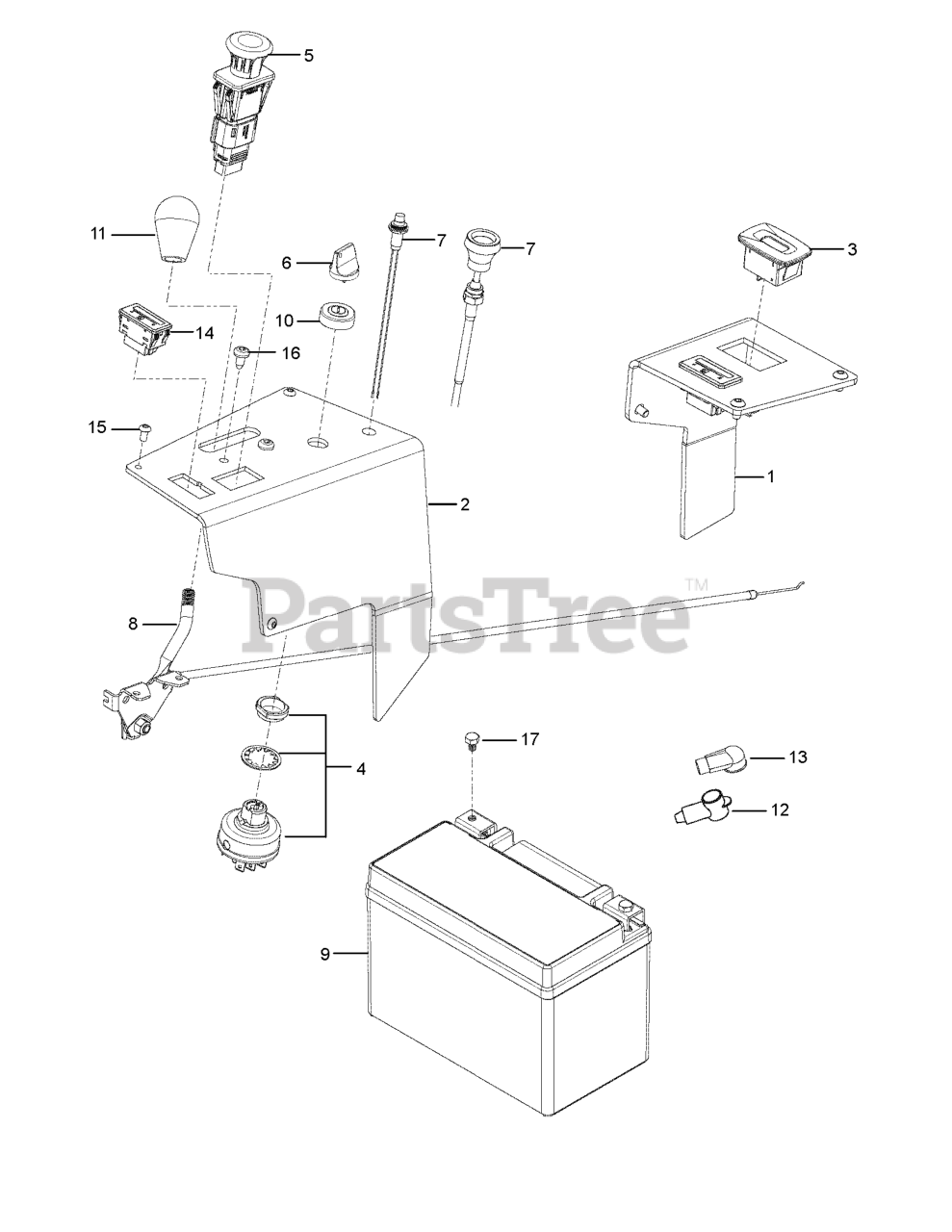

CONSOLE Parts Diagram

  • Title

Husqvarna 593777803

HARNESS MAIN, Z500X Z500 YAMAH

Note: For 96793040300

$359.99

$

Usually ships in 3-10 days

0

13

Husqvarna 582031201

BATTERY.CABLE.BOOT.RED.MZ.PZ.E

$14.99

$

Usually ships in 3-10 days

0

8

Husqvarna 582120301

THROTTLE.CONTROL.POST.MZ/PZ.46
(Superseded to 597523904)

Note: 46''

$65.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102759

INSULATOR

$5.99

$

In Stock, Qty 8

0

11

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 10

0

3

Husqvarna 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$

$

Not available

4

Husqvarna 574455401

SWITCH, IGNITION, INDAK

$41.99

$

In Stock, Qty 20+

0

9

Husqvarna 589819503

Batteries

Note: MX-14

$179.99

$

Usually ships in 3-10 days

0

Husqvarna 583501901

FUSE.10 AMP

Note: Fuse 10 AMP - Not Shown

$

$

Not available

7

Husqvarna 574206901

CABLE, CHOKE, 48"
(Superseded to 531077202)

Note: For 967669703-01, 967678802-01, 967678801-01

$33.99

$

In Stock, only 2 left!

0

Husqvarna 593777801

HARNESS.MAIN.Z500X.Z500.CARB

Note: For 967669703-01, 967678802-01, 967678801-01, 967669702-00

$299.99

$

Usually ships in 3-10 days

0

6

Husqvarna 574455501

KEY, IGNITION

$6.99

$

In Stock, Qty 20+

0

16

Husqvarna 532199855

SCREW T-30 1/4-20 X
(Superseded to 583254901)

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 582120302

THROTTLE.CONTROL.POST.PZ/MZ.60
(Superseded to 597523905)

Note: 60''

$59.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539114341

SCR #10-24 X 3/8 SKT HD BLK OX

$4.99

$

In Stock, only 2 left!

0

5

Husqvarna 589887201

SWITCH.PTO.10AMP.SEALED.6P.SPS

$77.99

$

In Stock, only 2 left!

0

9

Husqvarna 596990201

Brackets

Note: MX-12 Bracket ( Battery Not included)

$9.99

$

Usually ships in 3-10 days

0

1

Husqvarna 582483902

PANEL.LH.CONTROL.PNT.X498

$29.99

$

Usually ships in 3-10 days

0

Husqvarna 532175158

FUSE 20AMP

Note: Fuse 20 AMP - Not Shown

$5.99

$

In Stock, only 4 left!

0

17

Husqvarna 582460801

SCREW M6 X 8MM HEX CAP
(Superseded to 582460802)

$2.49

$

In Stock, only 2 left!

0

Husqvarna 582460606

Brackets

Note: MX-14

$8.49

$

Usually ships in 3-10 days

0

14

Husqvarna 592872701

FUEL.GAUGE.LED.LEVEL.Z500

$35.99

$

In Stock, only 1 left!

0

7

Husqvarna 581878301

LED.LIGHT.SERVICE.EFI

Note: For 96793040300

$79.99

$

In Stock, only 2 left!

0

8

Husqvarna 582120302

THROTTLE.CONTROL.POST.PZ/MZ.60
(Superseded to 597523905)

Note: 38''

$59.99

$

Usually ships in 3-10 days

0

Husqvarna 589838501

HARNESS.ADAPTER.KAWASAKI.FX.PZ

Note: For 967669703-01, 967678802-01, 967678801-01

$29.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539103178

CAP IGNITION NUT

$5.99

$

Usually ships in 3-10 days

0

2

Husqvarna 582483602

PANEL.RH.CONTROL.PNT.X498

$29.99

$

Usually ships in 3-10 days

0

9

Husqvarna 589819502

Batteries

Note: MX-12

$167.99

$

Usually ships in 3-10 days

0

Husqvarna 590632101

CABLE,BAT.6GA.RED.BLK.ASS.PZRF

Note: NOT SHOWN

$77.99

$

Usually ships in 3-10 days

0

Husqvarna 574514001

TIMER, SEAT

Note: NOT SHOWN

$107.99

$

Usually ships in 3-10 days

0
