Z 572x - Husqvarna 72" Zero-Turn Mower ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

72" Zero-Turn Mower

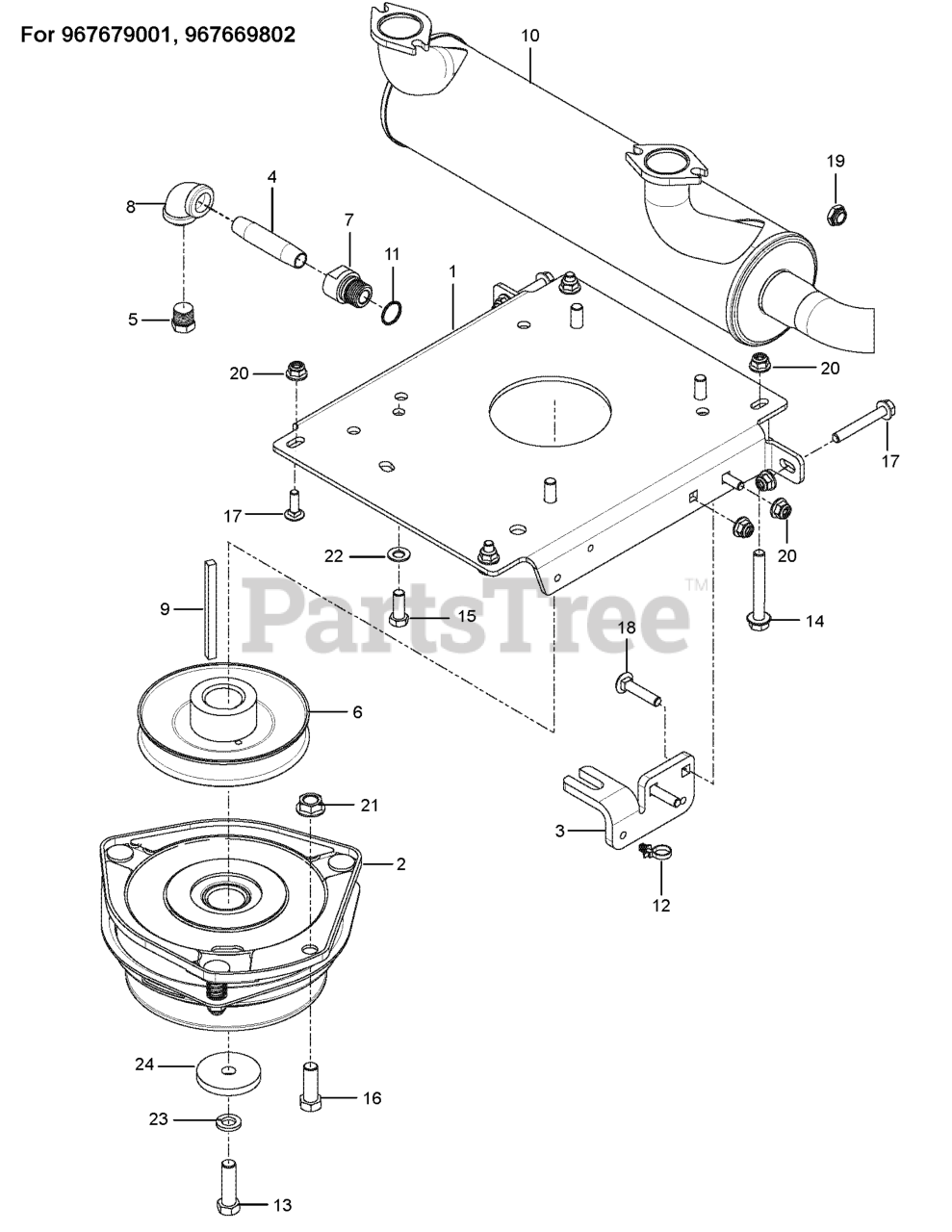

ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

  • Title

7

Husqvarna 539119680

ADAPTER, OIL DRAIN

$27.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539125626

BLADE WASHER

$7.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD
(Superseded to 596030801)

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 510019801

PULLEY, ENGINE

$71.99

$

In Stock, Qty 6

0

23

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.99

$

In Stock, Qty 5

0

14

Husqvarna 574233801

HHFS 5/16-18 X 2.25 GD 5
(Superseded to 574233802)

$3.99

$

In Stock, only 1 left!

0

4

Husqvarna 539118911

PIPE NIPPLE 3/8 X 3

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 522837001

PLUG, DRAIN 3/8 NPTF

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 539102582

NUT 7/16C WHIZ
(Superseded to 596577901)

$3.99

$

In Stock, only 1 left!

0

2

Husqvarna 525749501

CLUTCH, GT3.5

$778.99

$

In Stock, only 1 left!

0

12

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 525749901

KEY, 1/4 SQ X 3.5

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 539102593

WASHER, 3/8 DISC SPRING SPEC

$3.99

$

In Stock, only 4 left!

0

11

Husqvarna 539109618

O-RING

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990208

RHSNB 5/16C X 1
(Superseded to 595901501)

$4.99

$

In Stock, Qty 20+

0

Husqvarna 586839801

GASKET.EXHAUST.FX921V

Note: NOT SHOWN

$7.49

$

Usually ships in 3-10 days

0

1

Husqvarna 582733302

PLATE.PNT.ENGINE.PZ/PZT.EDIP

$131.99

$

Usually ships in 3-10 days

0

13

Husqvarna 581332801

CLUTCH BOLT7/16-20X1.5GR5.96HR
(Superseded to 581332805)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 9

0

20

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

19

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 596031501)

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 525750401

MUFFLER, 34HP KAW FX921V-1000V

$418.99

$

Usually ships in 3-10 days

0

3

Husqvarna 522676702

STOP, CLUTCH, OGURA
(Superseded to 597180803)

$14.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539105072

90 DEG.ELBOW 3/8NPT

$14.99

$

Usually ships in 3-10 days

0

16

Husqvarna 874780716

BOLT FIN HEX 7/16-14 X 1
(Superseded to 596238601)

$3.99

$

Usually ships in 3-10 days

0
