Z1-18KE02 (718-Z) - Toro Zero-Turn Mower, Drive Unit Only (1987) Pto Drive Parts Diagram

Zero-Turn Mower, Drive Unit Only

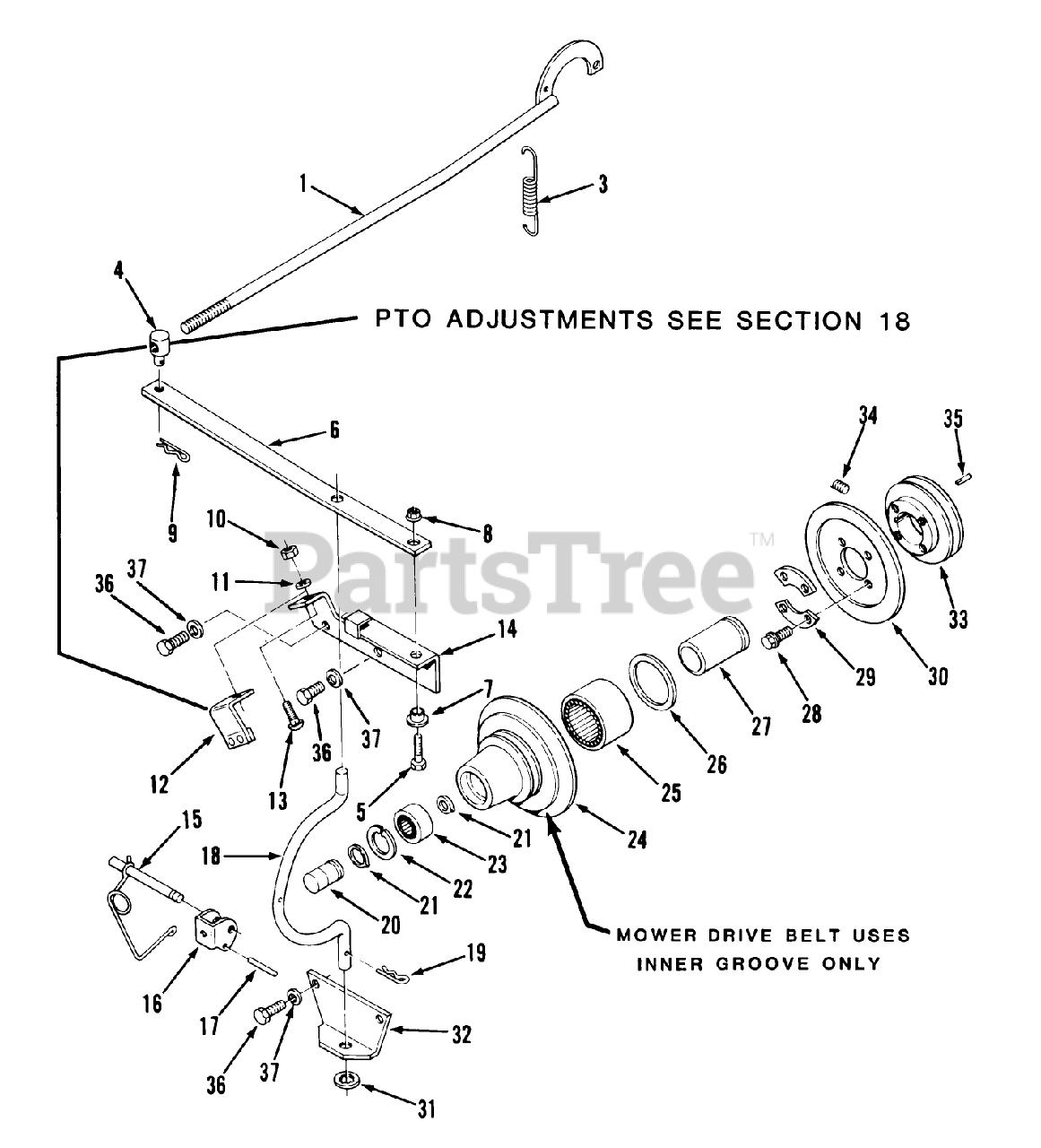

Pto Drive Parts Diagram

  • Title

1

Toro 111885

DISCONTINUED

$

$

Not available

3

Toro 20217

Spring

$

$

Currently unavailable

4

Toro 110656

See Supercession: 101161
(Superseded to 101161)

$

$

Not available

5

Toro 908034

See Supercession: 323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

6

Toro 111884

DISCONTINUED

$

$

Not available

7

Toro 104859

SPACER-LIFT LINK

$55.99

$

Usually ships in 3-6 days

0

8

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

9

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

10

Toro 915234

See Supercession: 3218-1
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

11

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$15.99

$

In Stock, only 4 left!

0

12

Toro 110665

See Supercession: 94-6652
(Superseded to 94-6652)

$50.99

$

In Stock, only 4 left!

0

13

Toro 900015

See Supercession: 3229-1
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

14

Toro 112939

DISCONTINUED

$

$

Not available

15

Toro 111314

LOCKING PIN ASM

$29.99

$

In Stock, only 2 left!

0

16

Toro 110664

CLEVIS *B

$62.99

$

In Stock, only 3 left!

0

17

Toro 933274

PIN-ROLL

$2.49

$

In Stock, only 3 left!

0

18

Toro 112230

DISCONTINUED

$

$

Not available

19

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 7

0

20

Toro 102872

SHAFT-PTO

$

$

Not available

21

Toro 936125

See Supercession: 32120-72
(Superseded to 32120-72)

$2.99

$

In Stock, Qty 20+

0

22

Toro 936032

See Supercession: 32120-62
(Superseded to 32120-62)

$5.49

$

In Stock, Qty 12

0

23

Toro 109842

BEARING-BALL

$34.99

$

In Stock, Qty 8

0

24

Toro 103478

DISCONTINUED
(Superseded to 103478-03)

$

$

Not available

25

Toro 106769

BRG-NEEDLE OPEN END

$68.99

$

In Stock, only 4 left!

0

26

Toro 6663

SEAL-OIL

$

$

Not available

27

Toro 6658

RACE-BEARING

$

$

Not available

28

Toro 908002

See Supercession: 321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

29

Toro 6659

RETAINER

$20.99

$

In Stock, only 3 left!

0

30

Toro 111238

See Supercession: 94-6650
(Superseded to 94-6650)

$203.99

$

In Stock, only 2 left!

0

31

Toro 106695

RING-REINFORCED CIRC

$2.99

$

In Stock, only 2 left!

0

32

Toro 111876

DISCONTINUE

$

$

Not available

33

Toro 7466

PULLEY

$209.99

$

Usually ships in 3-6 days

0

34

Toro 909862

See Supercession: 3246-2
(Superseded to 3246-2)

$0.99

$

In Stock, Qty 10

0

35

Toro 105453

KEY

$2.49

$

In Stock, only 2 left!

0

36

Toro 908047

See Supercession: 324-5
(Superseded to 324-5)

$0.99

$

Usually ships in 3-6 days

0

37

Toro 920084

LOCKWASHER

$0.99

$

Usually ships in 3-6 days

0
