Z1-24OE02 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1989) Section 5-Transmission Drive Parts Diagram

Zero-Turn Mower, Drive Unit Only

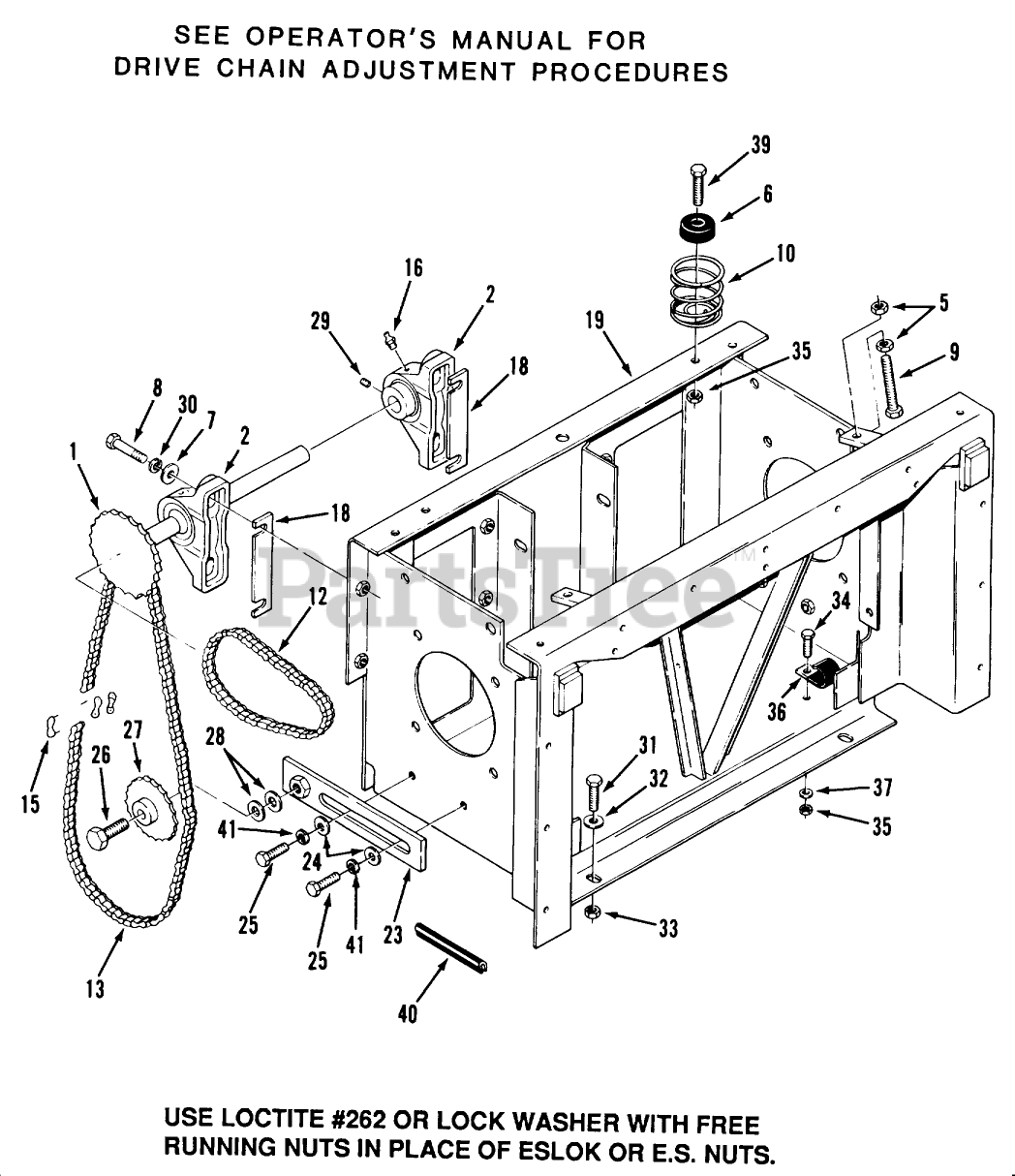

Section 5-Transmission Drive Parts Diagram

  • Title

1

Toro 113671

ASSY-JACKSHAFT *PLT

$

$

Not available

2

Toro 113531

DISCONTINUED

$

$

Not available

5

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 20+

0

6

Toro 108889

BUMPER

$28.99

$

Usually ships in 3-6 days

0

7

Toro 908039

See Supercession: 323-11
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

8

Toro 908036

See Supercession: 323-8
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

9

Toro 911452

See Supercession: 322-11
(Superseded to 322-11)

$1.99

$

In Stock, Qty 18

0

10

Toro 114496

DISCONTINUED

$

$

Not available

12

Toro 113691

DISCONTINUED

$

$

Not available

13

Toro 116735

DISCONTINUED

$

$

Not available

15

Toro 109002

See Supercession: 2710-16
(Superseded to 2710-16)

$9.99

$

Usually ships in 3-6 days

0

16

Toro 113353

See Supercession: 302-2
(Superseded to 302-2)

$2.49

$

In Stock, Qty 20+

0

18

Toro 113567

SHIM-PILLOW BLOCK

$

$

Not available

19

Toro 116457

See Supercession: 116888
(Superseded to 116888)

$2690.99

$

Usually ships in 3-6 days

0

23

Toro 112304

DISCONTINUED

$

$

Not available

24

Toro 920039

See Supercession: 3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

25

Toro 908034

See Supercession: 323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

26

Toro 908086

DISCONTINUED

$

$

Not available

27

Toro 111887

DISCONTINUED

$

$

Not available

28

Toro 920013

See Supercession: 3256-27
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 20+

0

29

Toro 909848

See Supercession: 3245-32
(Superseded to 3245-32)

$5.99

$

In Stock, only 2 left!

0

30

Toro 920083

See Supercession: 3253-21
(Superseded to 3253-21)

$0.99

$

In Stock, only 4 left!

0

31

Toro 908034

See Supercession: 323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

32

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

33

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

34

Toro 908017

See Supercession: 322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

35

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.99

$

In Stock, Qty 20+

0

36

Toro 8830

CLIP

$

$

Not available

37

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

39

Toro 908019

See Supercession: 322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

40

Toro 115200

DISCONTINUED

$

$

Not available

41

Toro 920083

See Supercession: 3253-21
(Superseded to 3253-21)

$0.99

$

In Stock, only 4 left!

0

42

Toro 116749

HORN

$153.99

$

Usually ships in 3-6 days

0

43

Toro 960012

NUT
(Superseded to 32128-43)

$1.49

$

In Stock, only 4 left!

0

44

Toro 114240

See Supercession: 112418
(Superseded to 112418)

$65.99

$

In Stock, only 3 left!

0
