Z1-24OE03 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1990) Pto Electric Clutch Parts Diagram

Zero-Turn Mower, Drive Unit Only

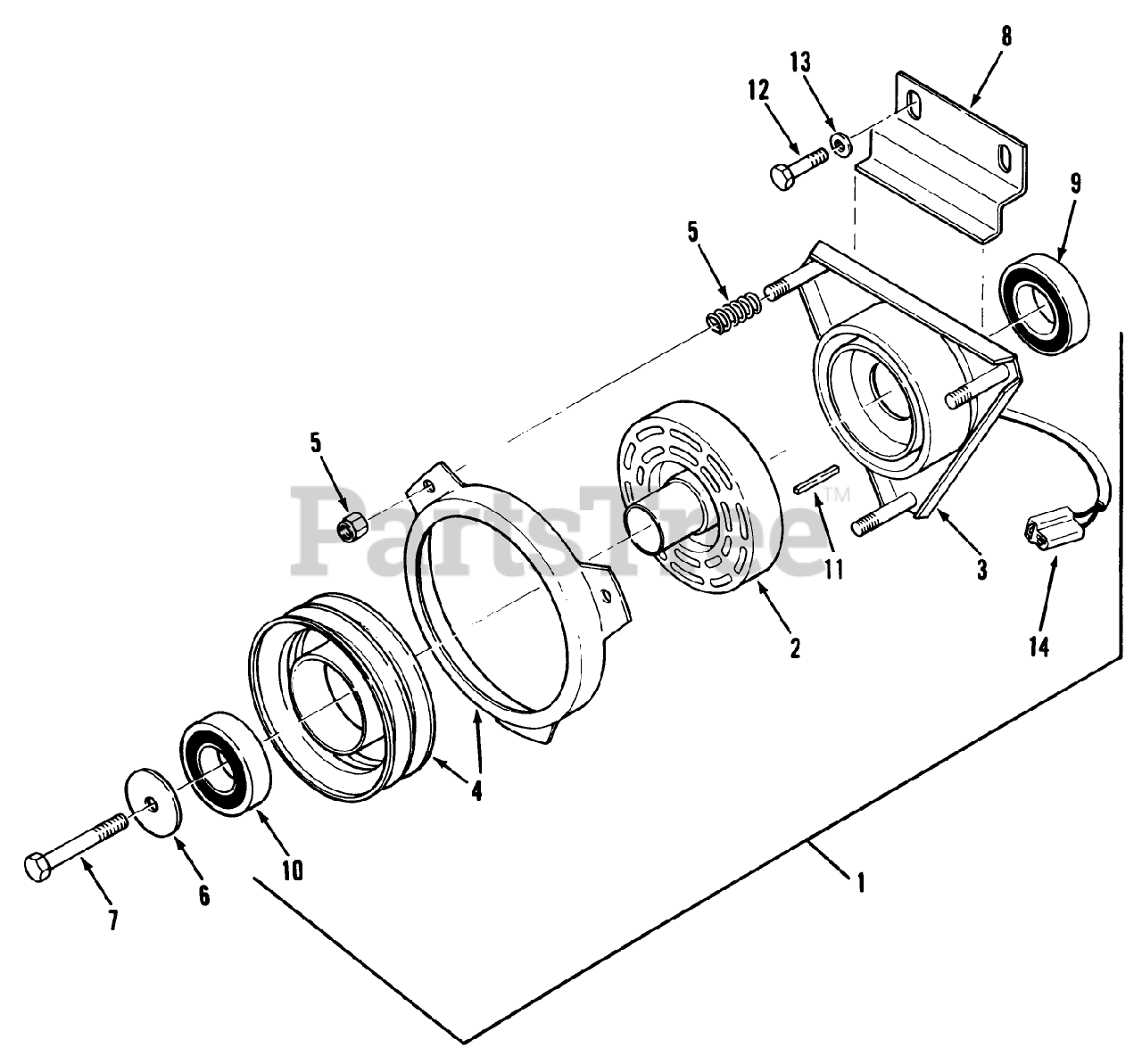

Pto Electric Clutch Parts Diagram

  • Title

1

Toro 113997

See Supercession: 93-3160
(Superseded to 93-3160)

$

$

Not available

2

Toro 115137

See Supercession: 93-3176
(Superseded to 93-3176)

$2226.99

$

Usually ships in 3-6 days

0

3

Toro 115134

FIELD-ASS'Y

$1362.99

$

Usually ships in 3-6 days

0

4

Toro 115136

See Supercession: 93-3176
(Superseded to 93-3176)

$2226.99

$

Usually ships in 3-6 days

0

5

Toro 115135

See Supercession: 113823
(Superseded to 113823)

$

$

Not available

6

Toro 113602

RETAINER-BEARING

$

$

Not available

7

Toro 908184

See Supercession: 3211-5
(Superseded to 3-2115)

$3.49

$

Usually ships in 3-6 days

0

8

Toro 113674

BRACKET-CLUTCH *B

$

$

Not available

9

Toro 115170

BEARING-FIELD ASS'Y

$

$

Not available

10

Toro 115171

See Supercession: 114064
(Superseded to 114064)

$90.99

$

Usually ships in 3-6 days

0

11

Toro 1121

KEY-SQUARE

$

$

Not available

12

Toro 908032

See Supercession: 323-4
(Superseded to 323-4)

$4.49

$

In Stock, Qty 20+

0

13

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

14

Toro 110459

CONNECTOR BODY *B

$1.99

$

In Stock, only 2 left!

0
